NOTE: Power supply module not included. This is only the enclosure and mounting system.
Swap ATX for server-grade power.

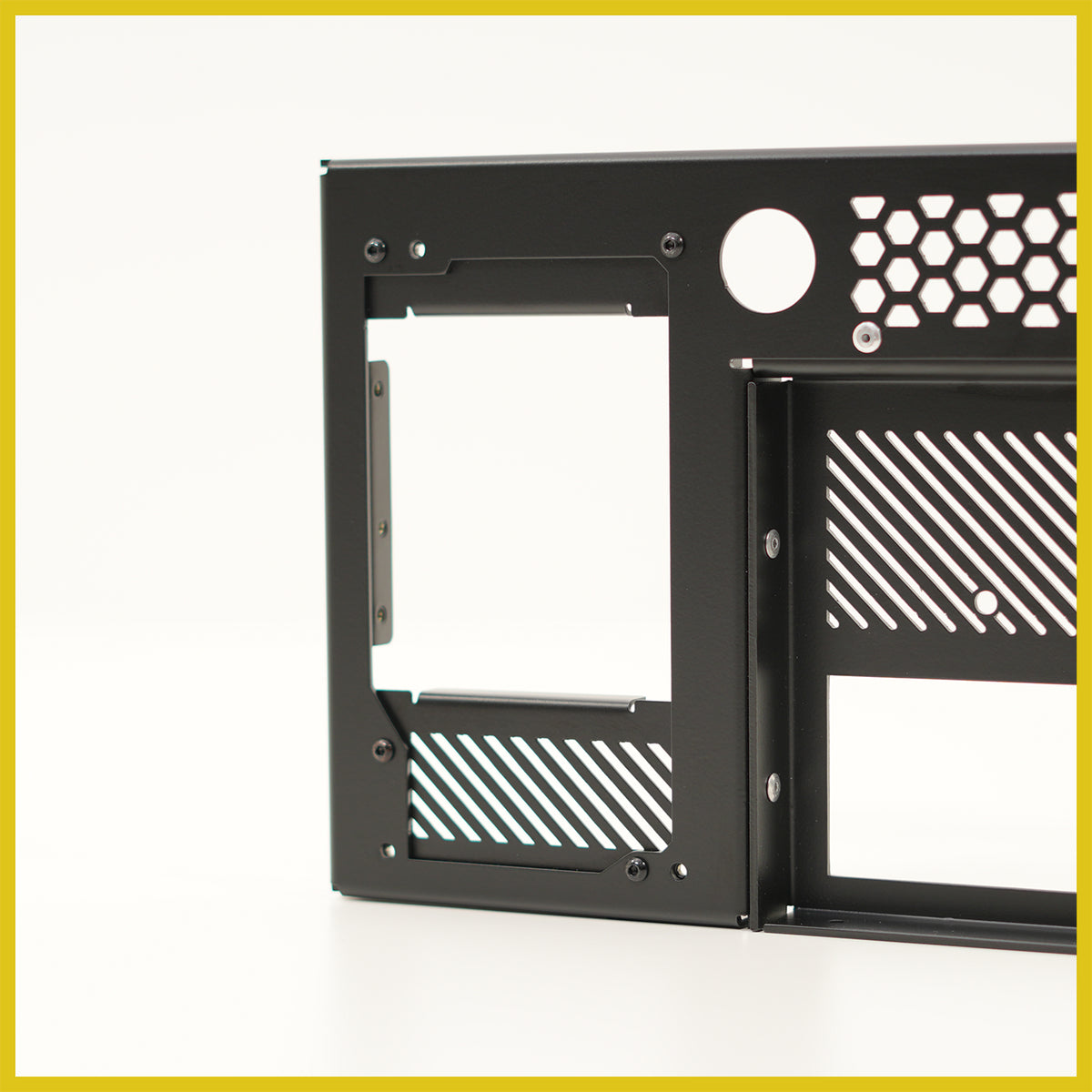

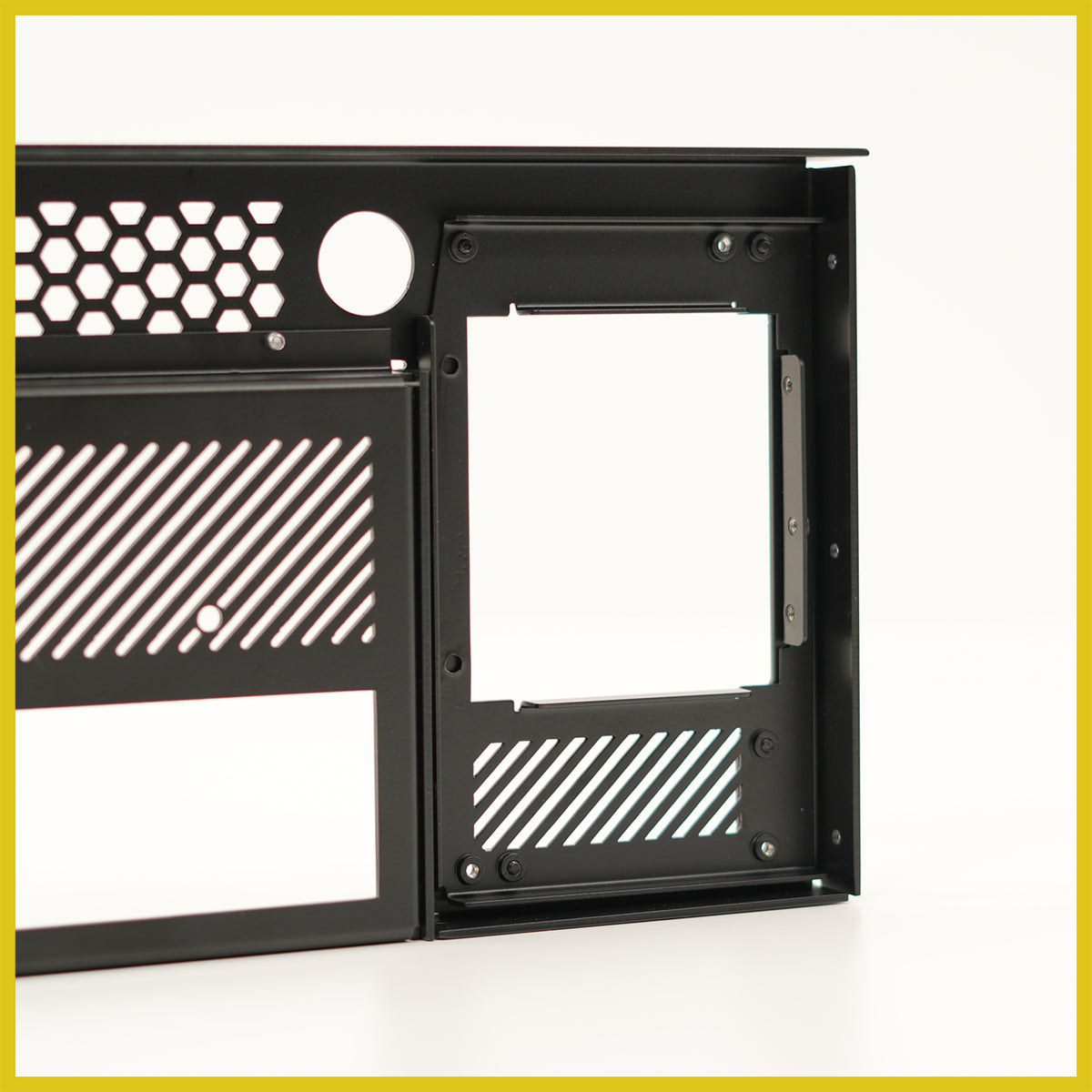

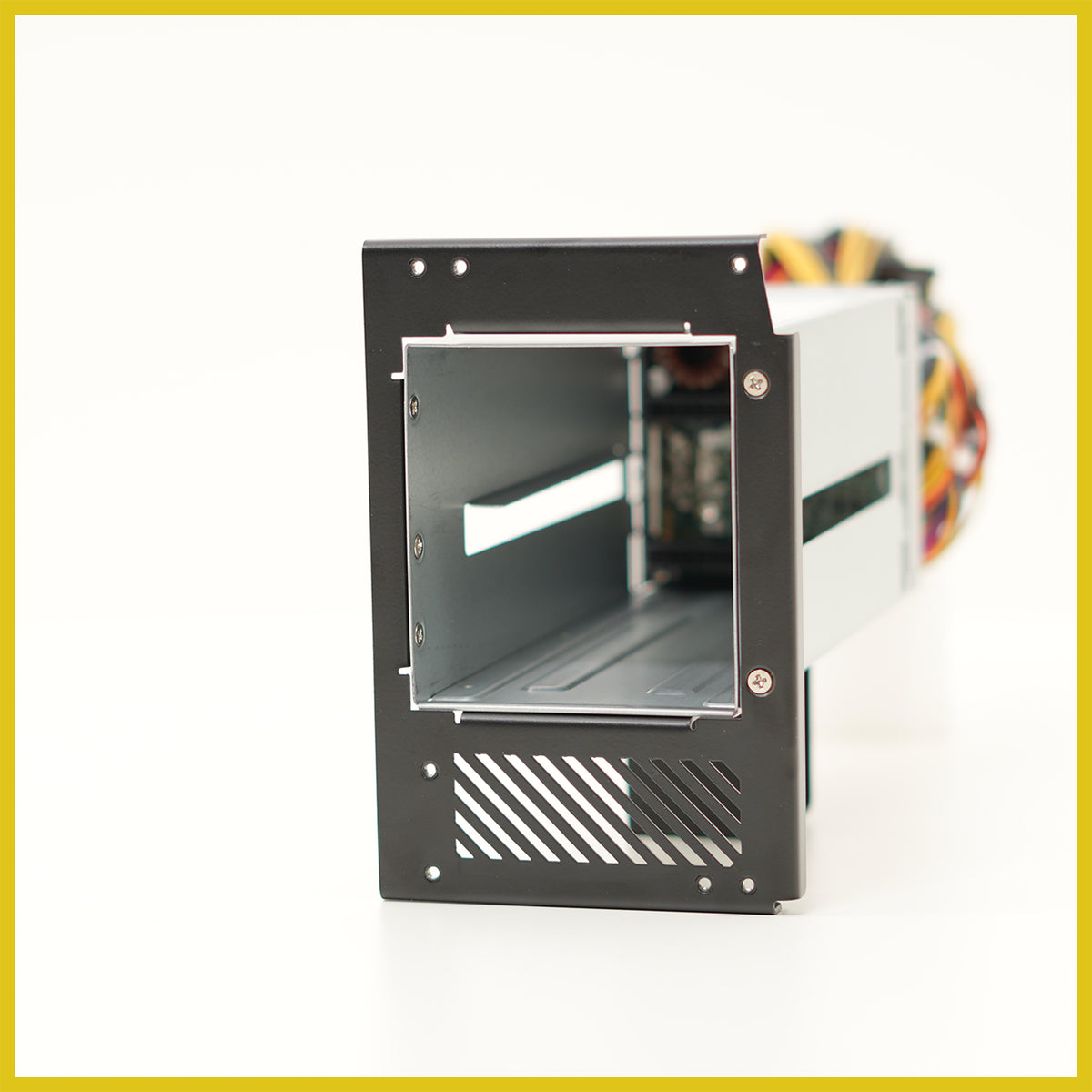

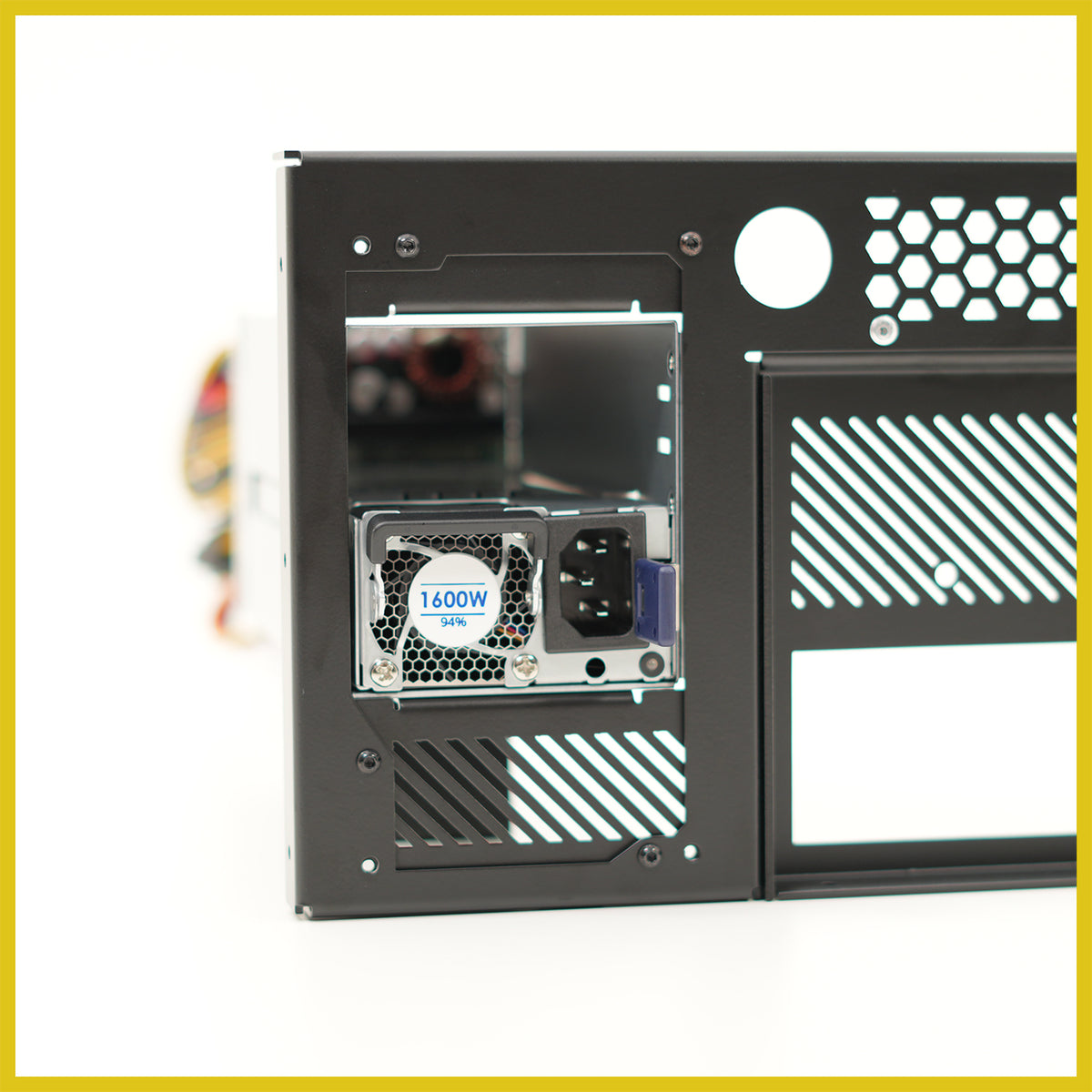

This PSU Adapter replaces the stock ATX power supply mount on your HakoForge chassis, opening the bay up to CRPS server power supplies. Get the density, efficiency, and hot-swap serviceability of enterprise hardware in the same footprint, with no chassis modification required.
Key Features:
- Fits the Whole HakoForge Lineup: One adapter, designed around the shared PSU mounting pattern used across our chassis
- Direct Bolt-On Installation: Mounts to existing chassis hardpoints using the supplied fasteners. No drilling, no cutting, no permanent changes
- Precision-Formed Steel: Laser-cut and CNC-brake-formed, finished in matte black powder coat to match your case
- Integrated Ventilation: Angled slot arrays above and below the PSU opening keep airflow clear

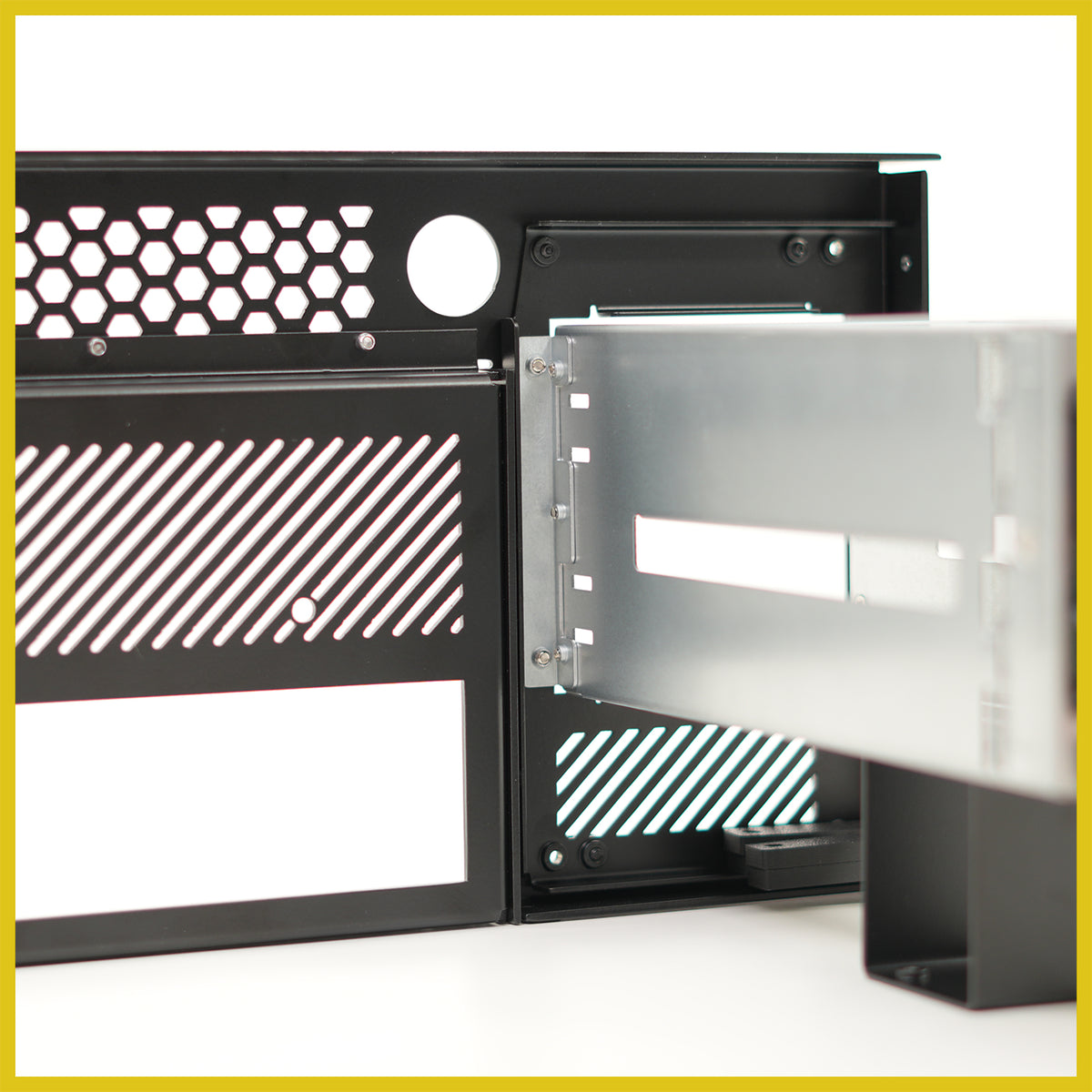

- Rear-Accessible Service: Swap the power supply without opening the case
- Reversible: Reinstall the standard ATX mount at any time
- Compatible PSUs: FSP 550W-20fm, 800W-20fm, 1200W-20fm, 1600W-20fm, 2000W-20fm, 2400W-20fm
What's Included:

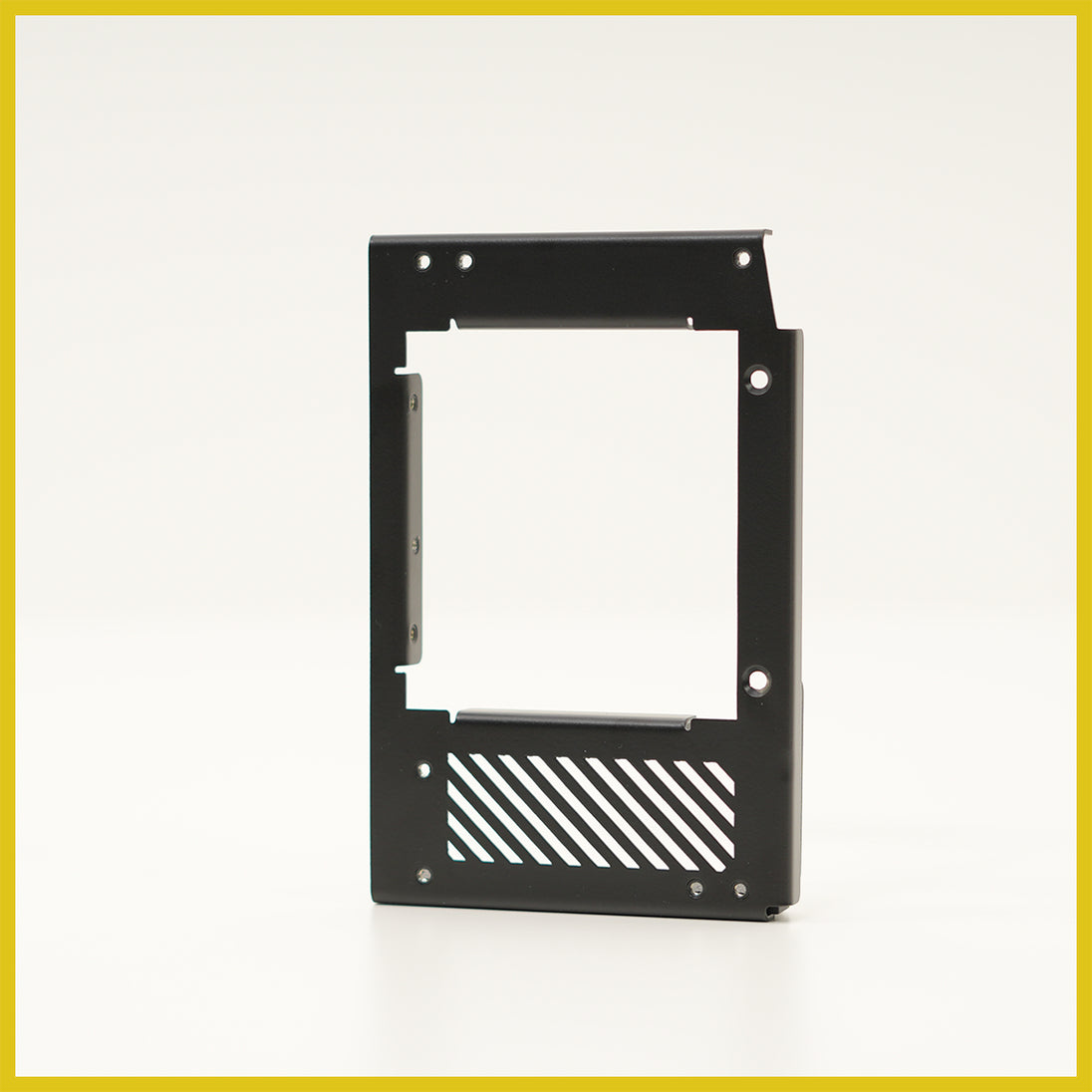

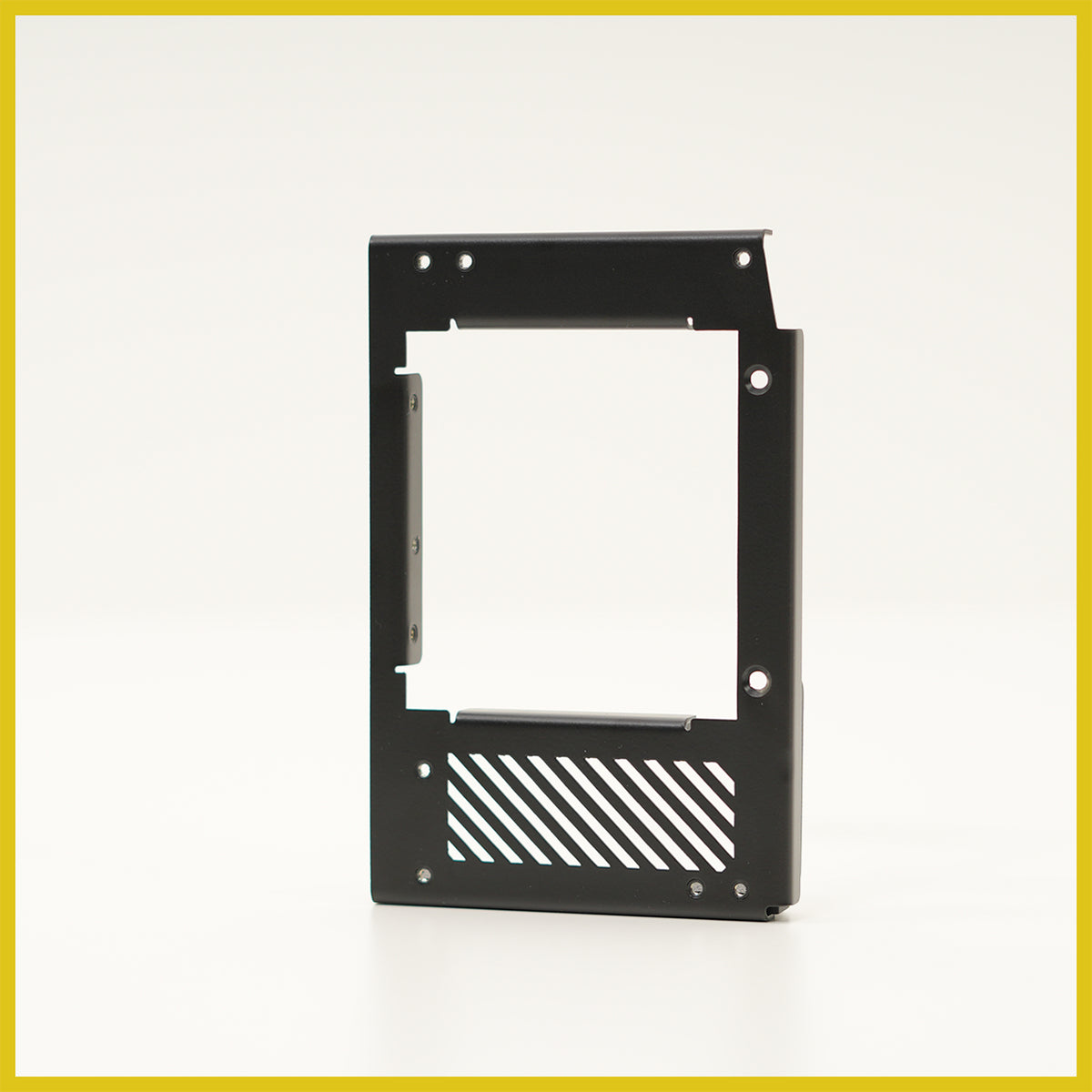

- PSU Adapter bracket
- PSU Enclosure
- Stand
- Mounting hardware kit
Connectors:
| PCIe 8-pin | 8x |
| ATX 8-pin CPU (EPS12V) | 2x |
| ATX 4-pin CPU/AUX | 1x |
| SATA Power | 6x |
| Motherboard 24-pin | 1x |
| PMBus | 1x (lets some motherboards communicate with the power supply) |
