HakoForge

Hako-Core Rev. 2

$699.95
$699.95

The HakoCore is a versatile modular server chassis designed for tech enthusiasts, home server builders, and small businesses. Its customizable design supports a range of HDD and SSD configurations, allowing you to easily adapt the setup to your evolving storage needs. Ideal for media servers, NAS setups, or data storage solutions.



SHIPS: 2-3 WEEKS



Included

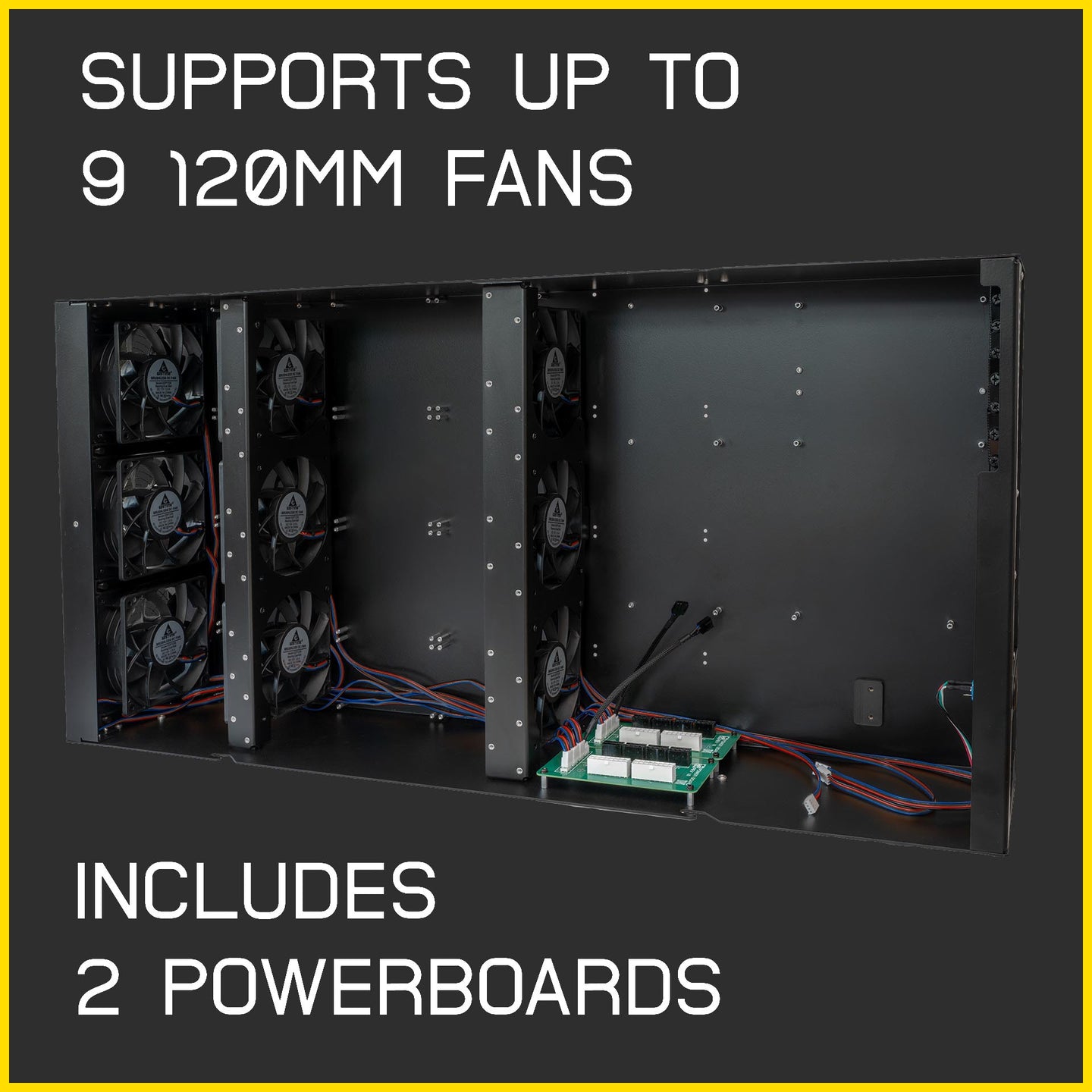

2 powerboards, needed wires, drive removal tools.

Material

Powder Coated Aluminum

Color

Black

Form Factor

4U

Dimensions

34" x 17.25" x 6.875"

Mother Board Support

Mini-ITX, Micro ATX, ATX, EATX, XL-ATX, FlexATX, Mini-DTX, SSI-CEB, SSI-EEB

Weight

20 lbs default configuration

CPU Cooler Clearance

~150mm +- 5mm depending on Mobo

GPU Clearance

Length: ~366mm Height: ~154mm

Backplane

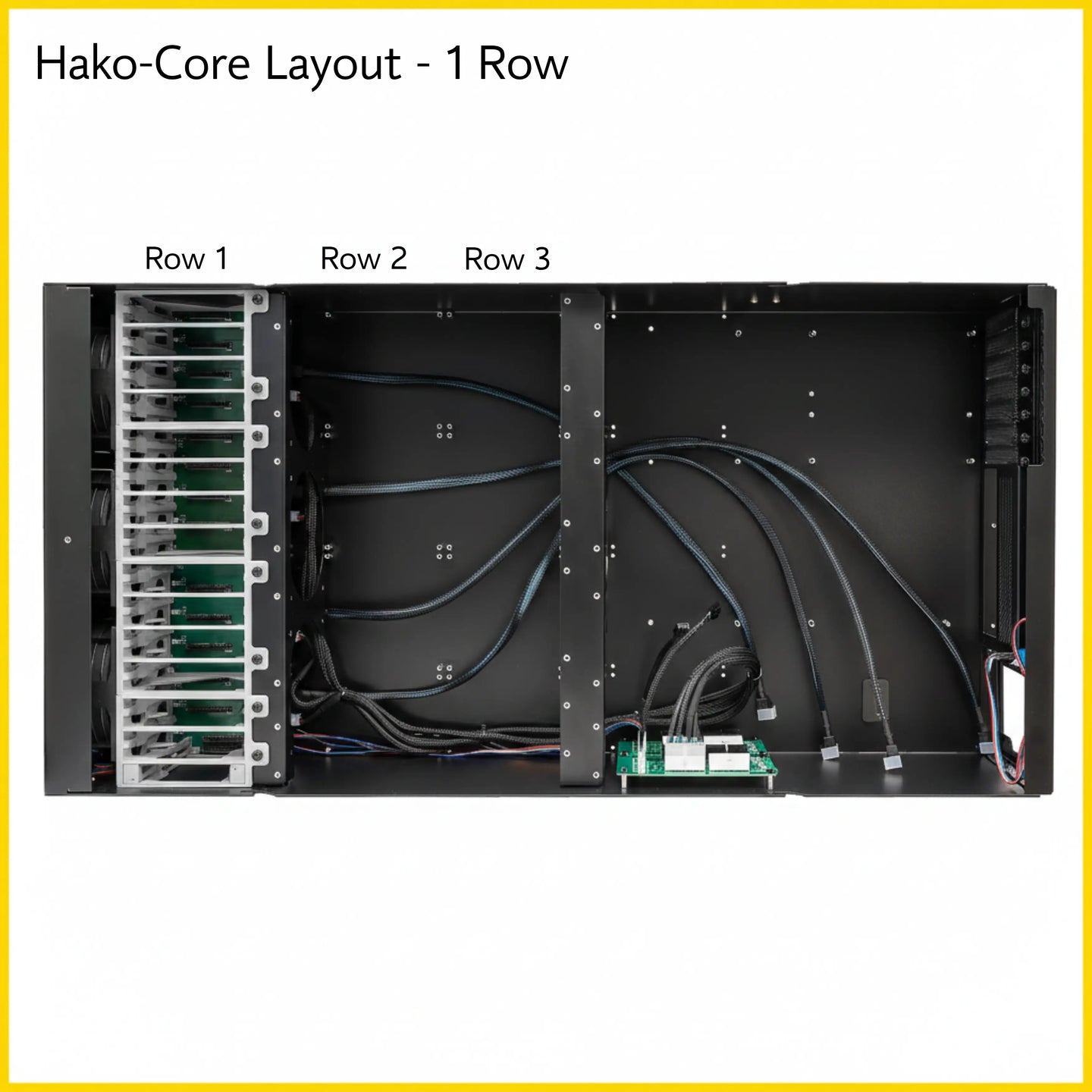

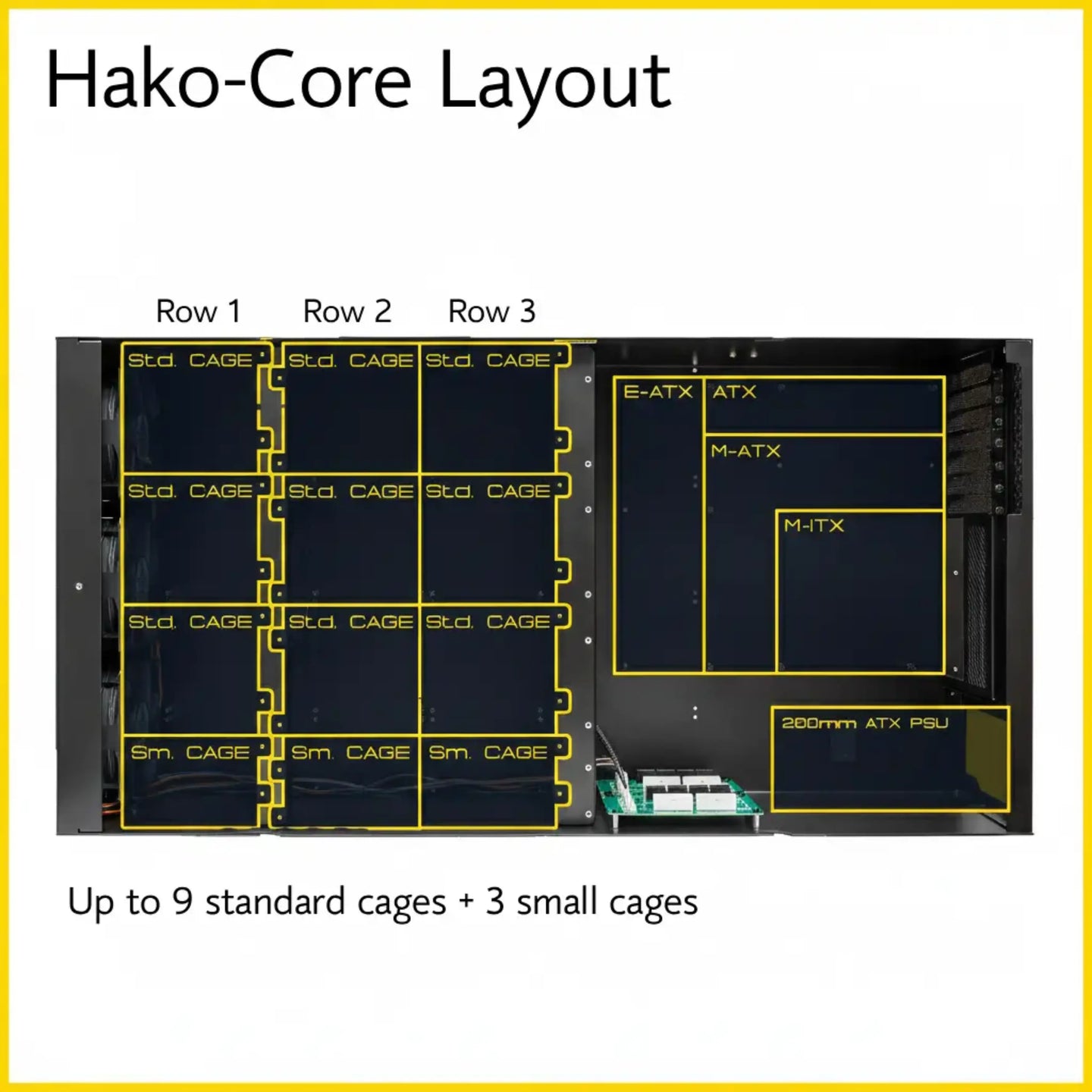

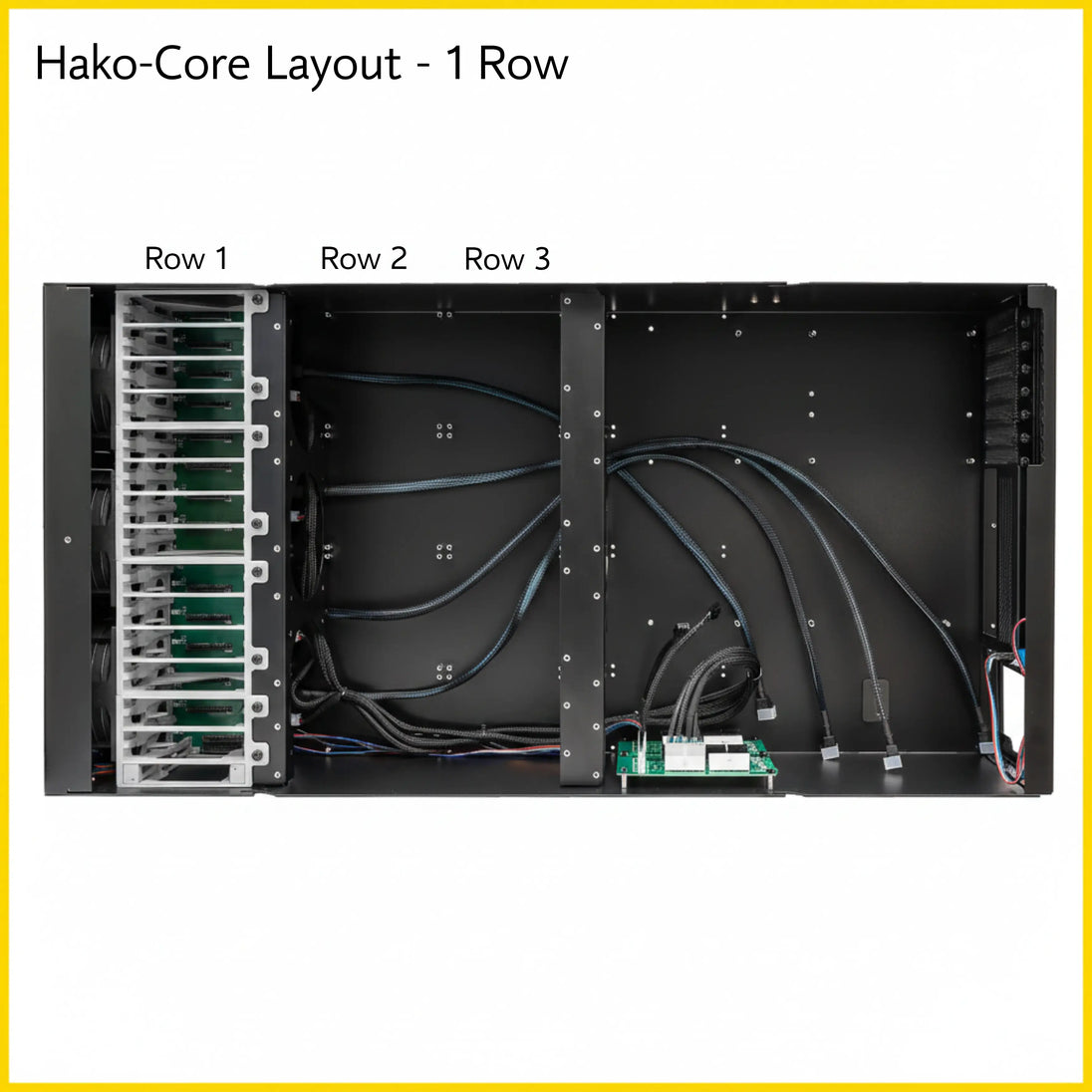

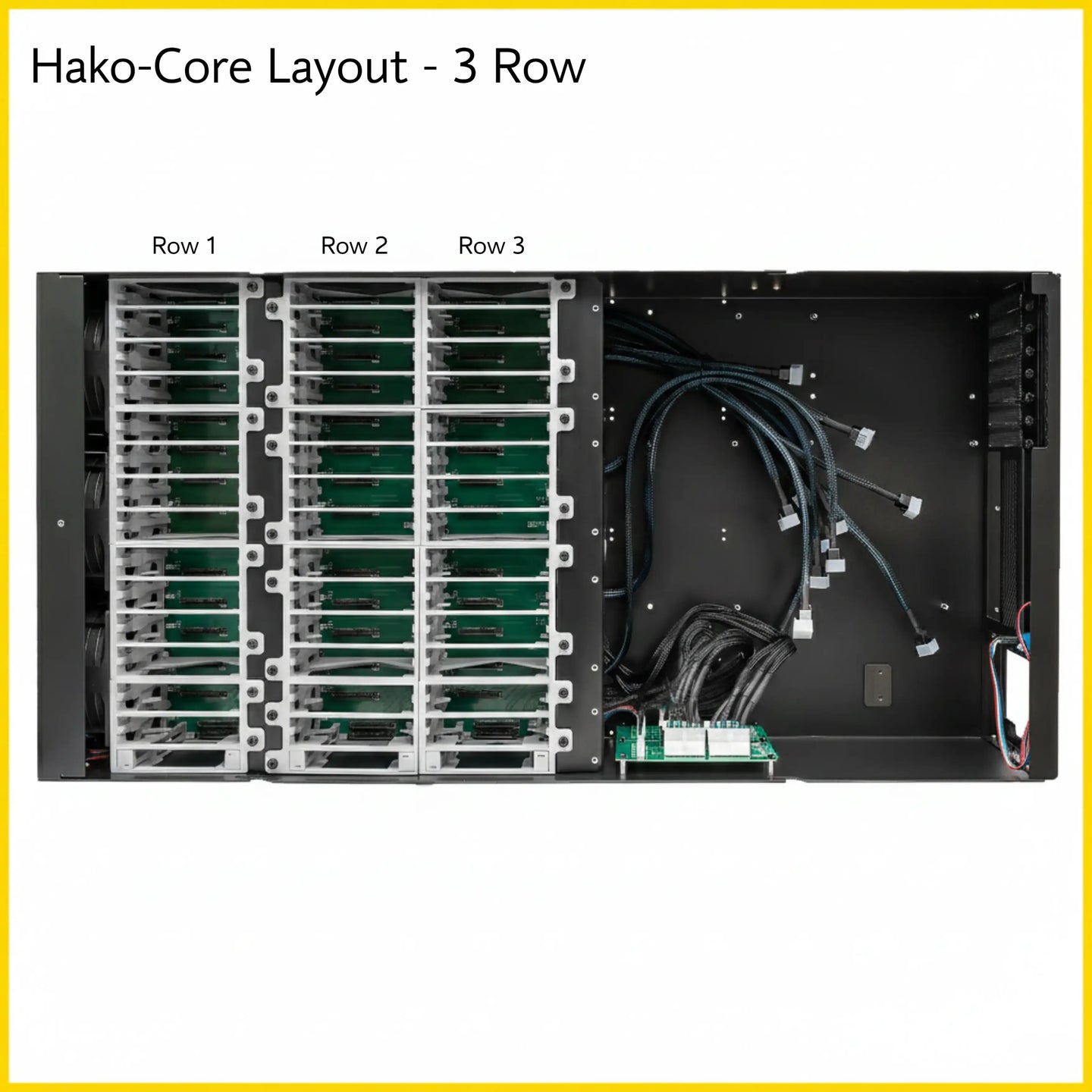

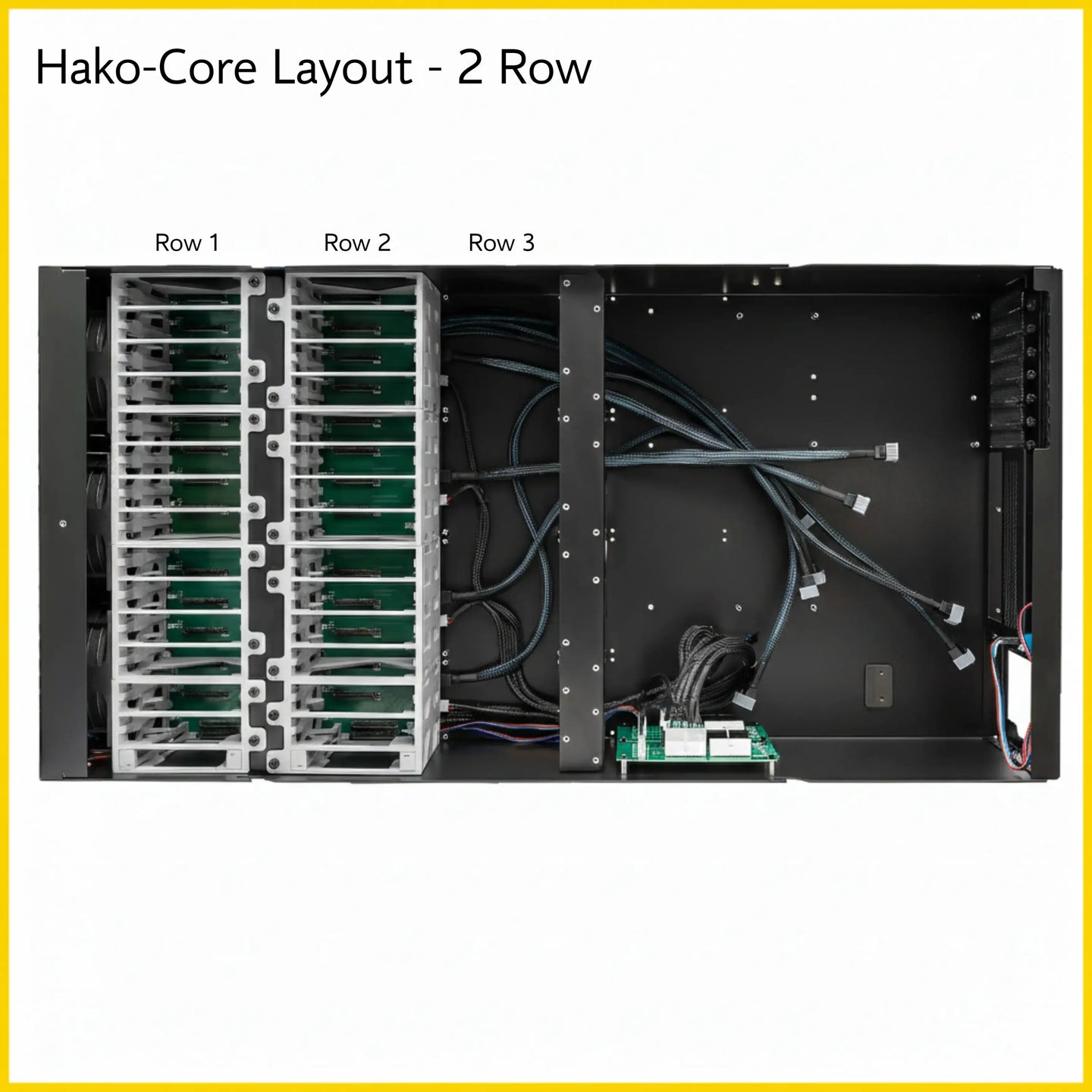

In the Server Layout the HakoCore holds up to 9 Standard drive cages and 3 Mini drive cages.  The JBOD Layout can hold up to 12 Standard drive cages and 4 Mini drive cages.

Power Supply Support

ATX, (With Adaptor)SFX

Updated - 04/21/2025



  • Added - Row color markers.
  • Added - Added conformal coating to backplane power connectors.



  • Changed - Powerboard rev2.1 higher accuracy on power usage, and fixed board PWM Labeling.
  • Changed - All rows of cages are now identical.



Updated - 04/01/2025

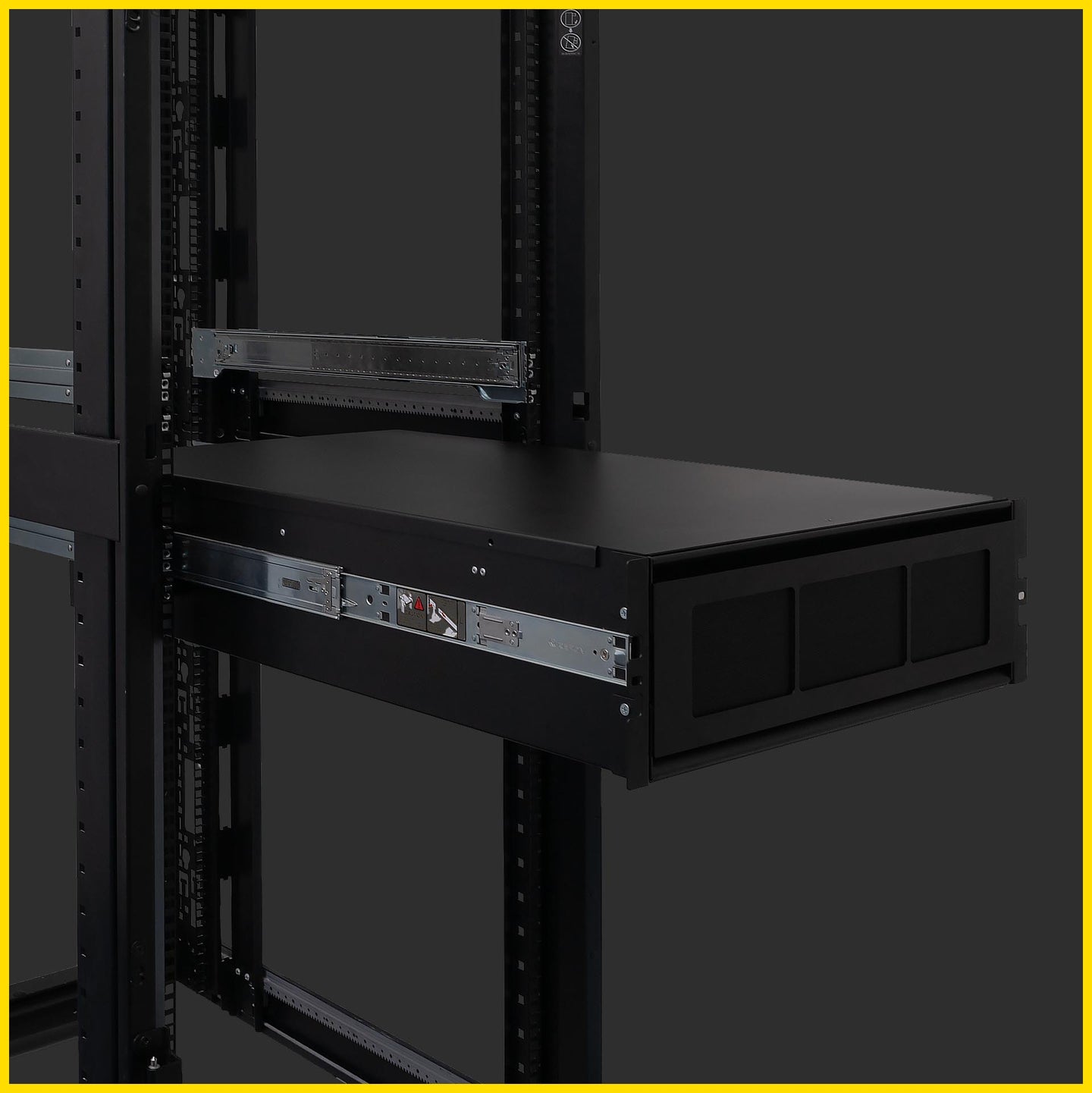

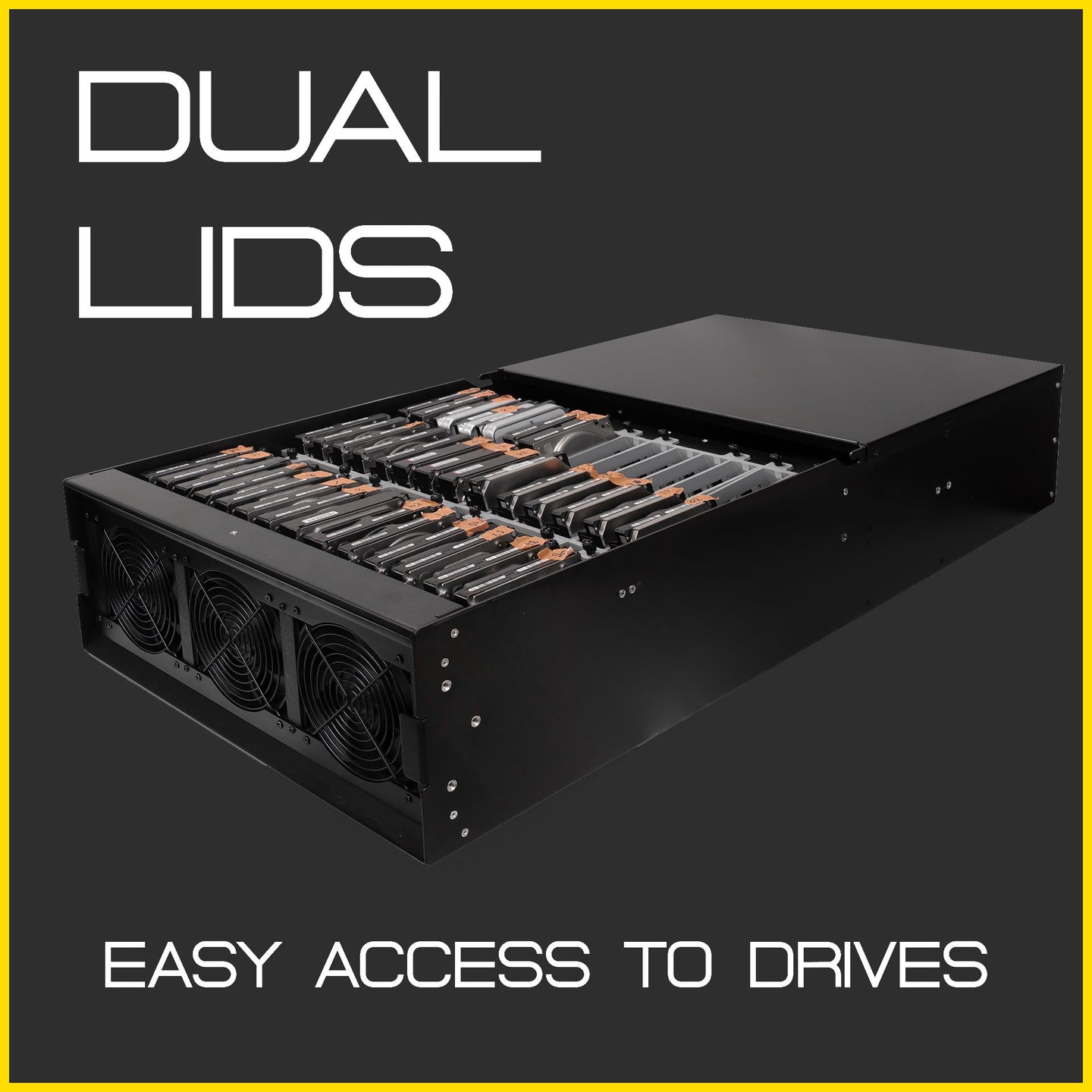

  • Added - Split Lid for better access to drives while racked.
  • Added - HF Foundry, Powerboard GUI.



  • Changed - Powerboard rev2.0 now supports PWM control + Power Usage.
  • Changed - Front Panel now includes Hakoforge Logo.
  • Changed - Lid cutout for PCIe accessory clearance.
  • Changed - Longer power button wire 60cm to 95cm.
  • Changed - Cages clearance and alignment updated.



Updated - 02/10/2025

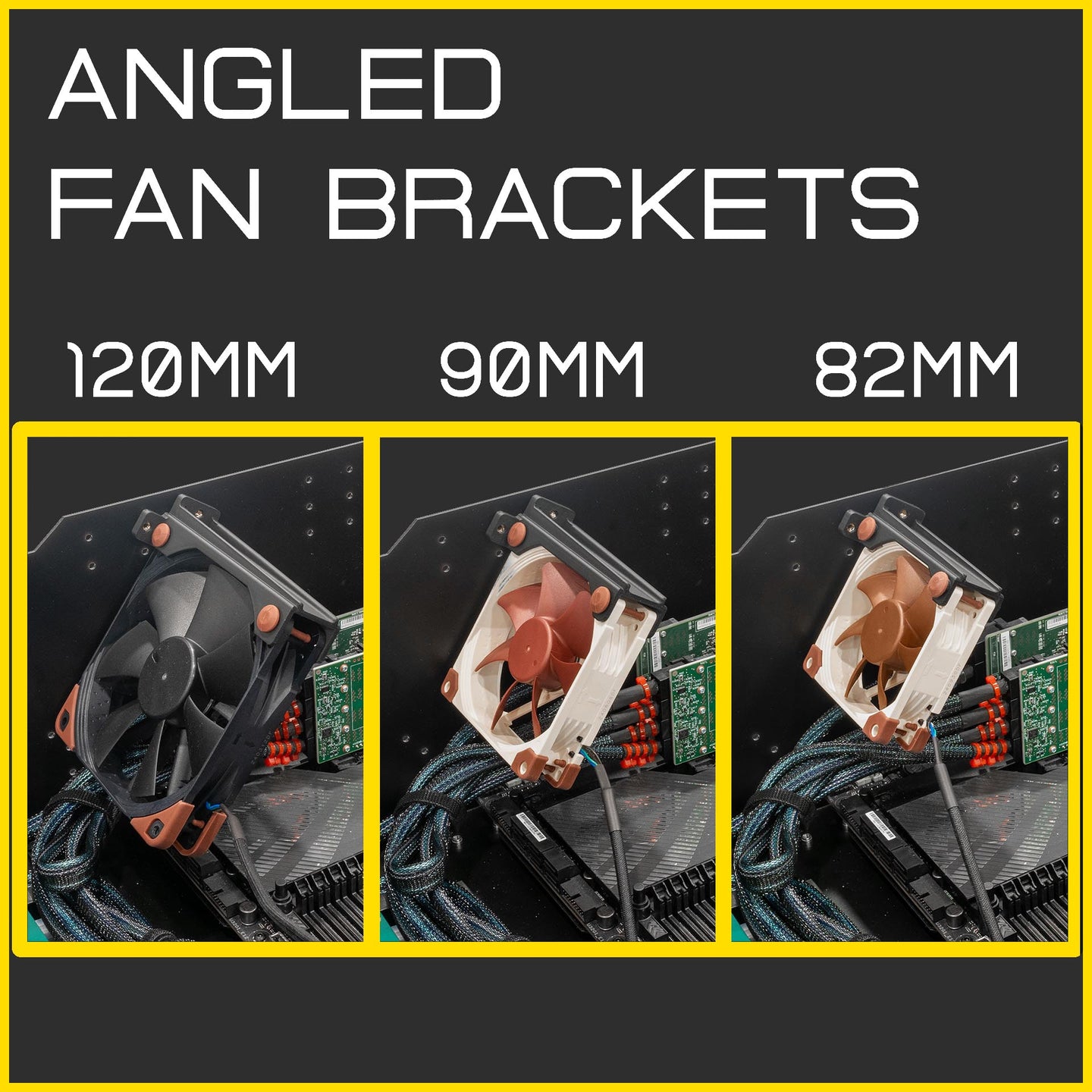

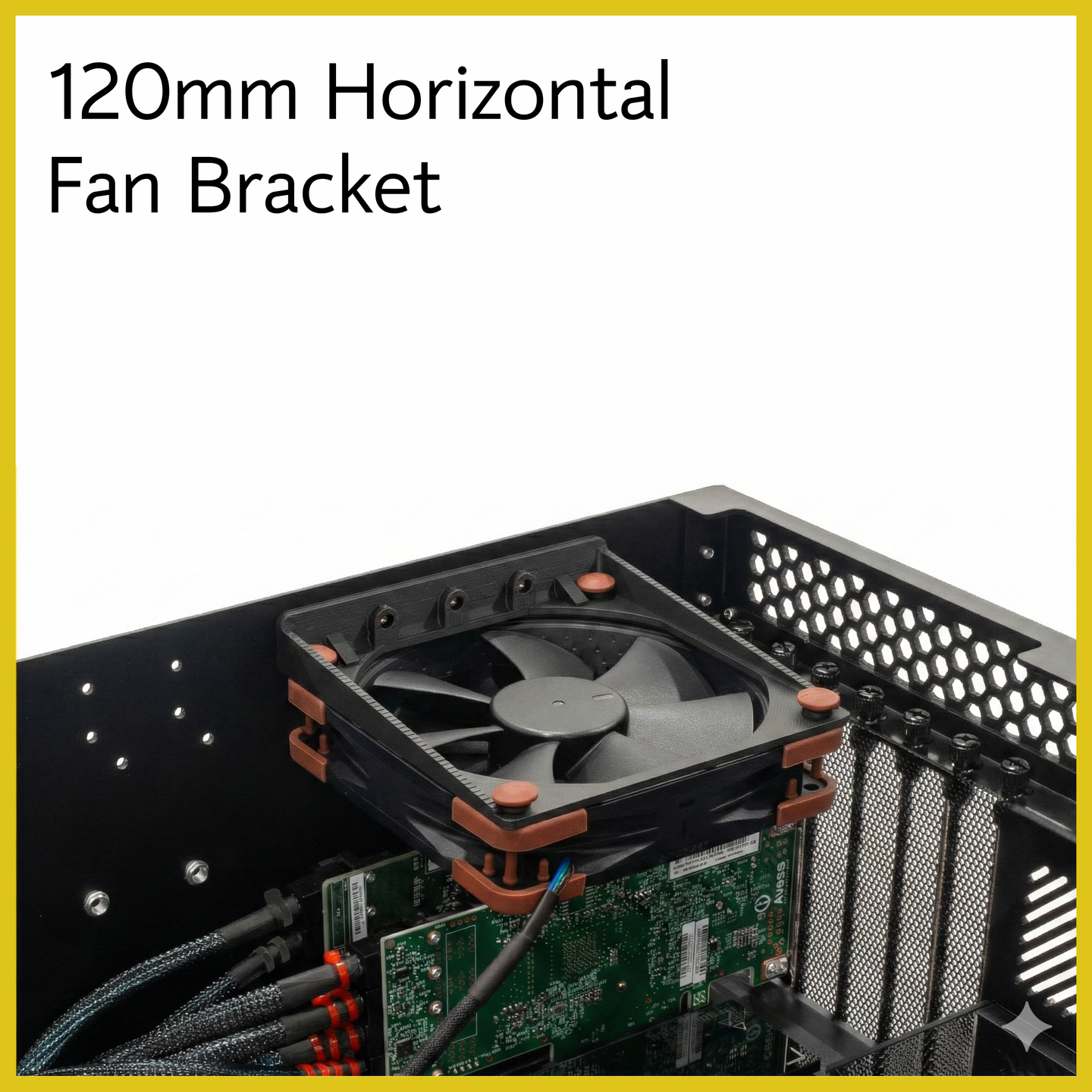

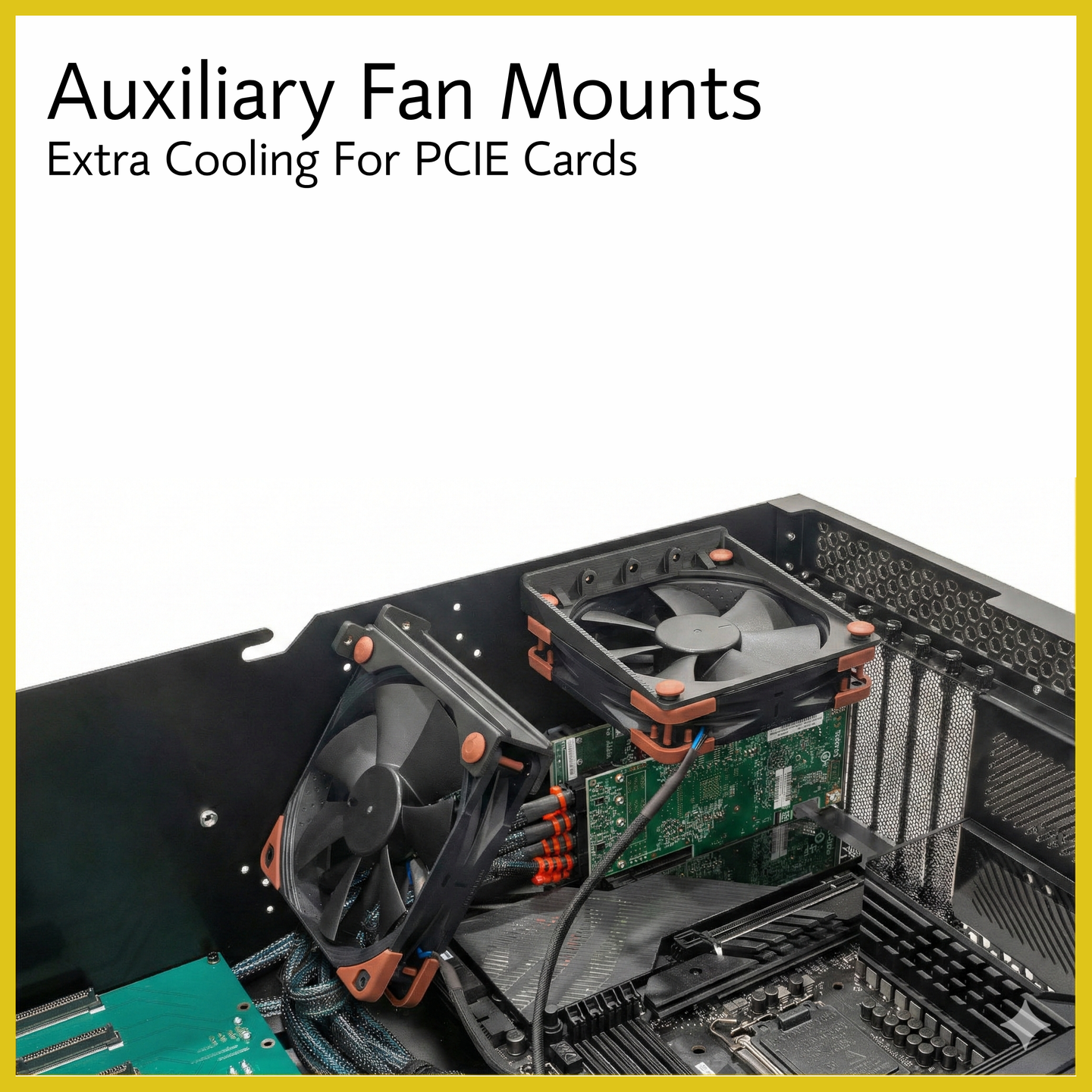

  • Added - Mount points for PCIe accessory fan brackets.

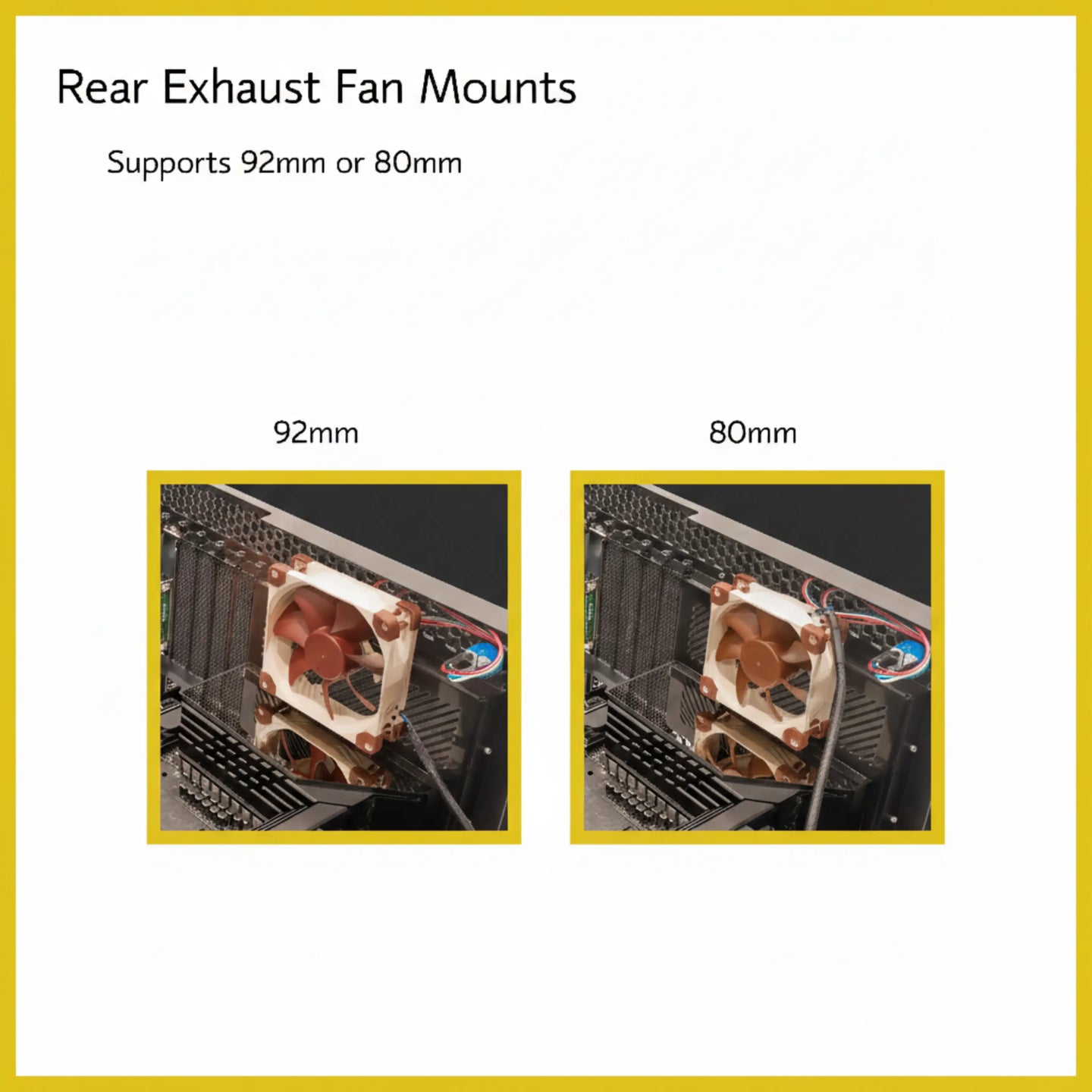

  • Added - Mount points for rear exhaust fans (92mm & 80mm).
  • Added - Mount points for a cable management bracket.
  • Added - Support for most, if not all, motherboard form factors: SSI-CEB, SSI-EEB, (XL, E, Micro, Flex) ATX, Mini-DTX, Mini-ITX.
  • Added - Support for different PSU orientations.



  • Changed - Improved process for attaching magnets.
  • Changed - Updated "fan hub" for each row of fans (fixes issue with removing backplanes to wire/unwire fans).
  • Changed - Better labeling for power board and SAS cables.

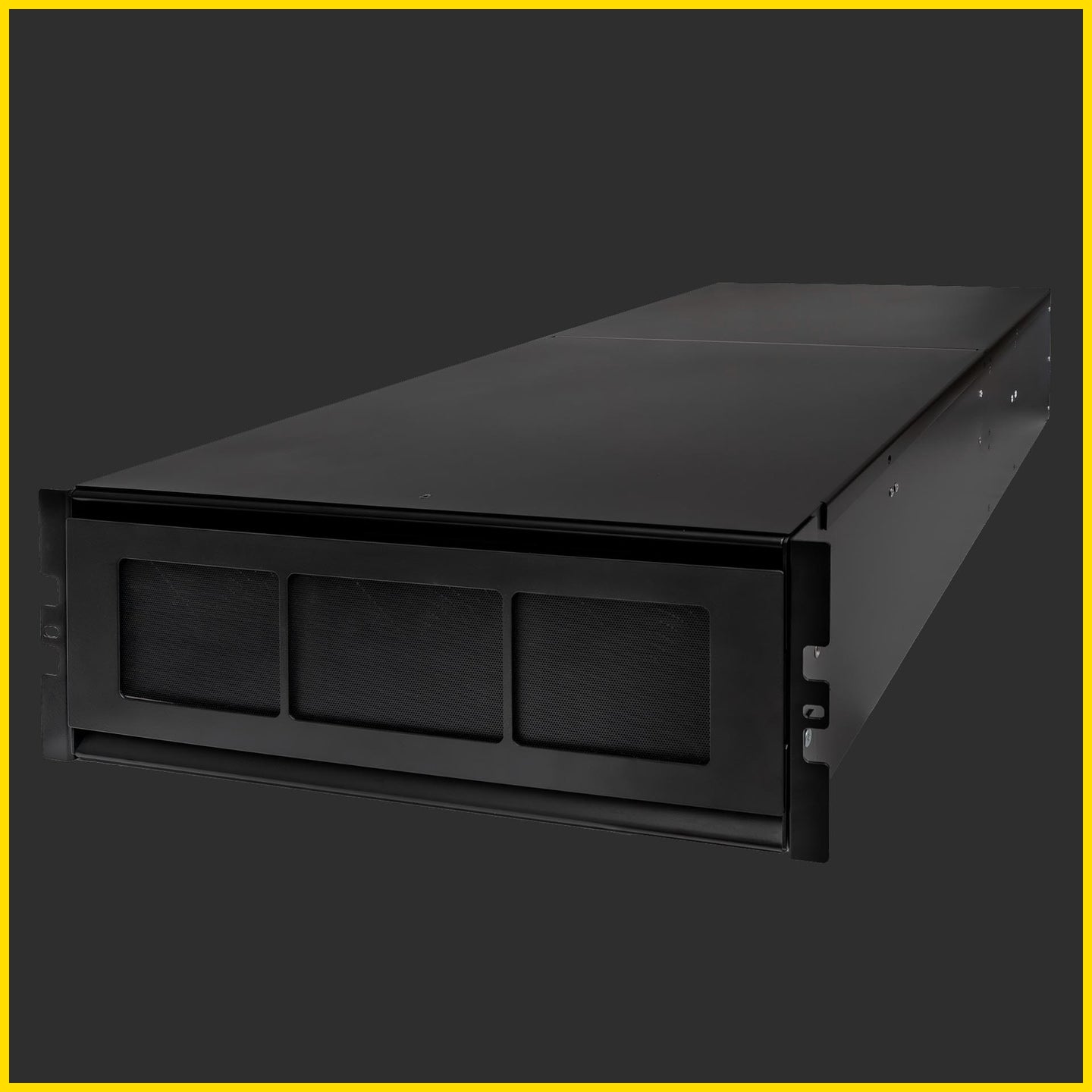

  • Changed - Split lid into two, allowing for easier service while racked.
  • Changed - All screws now have Loctite.
  • Changed - Updated packaging to help prevent damage.
What is included?
2 powerboard, needed wires, drive removal tools.
When is shipping?
Our shipping time is currently between 2 to 3 weeks from the date it is ordered.
Where can we get 3d printed drive cages?
We are selling them individually on the site, but they are also available on our github to download and print at home.
