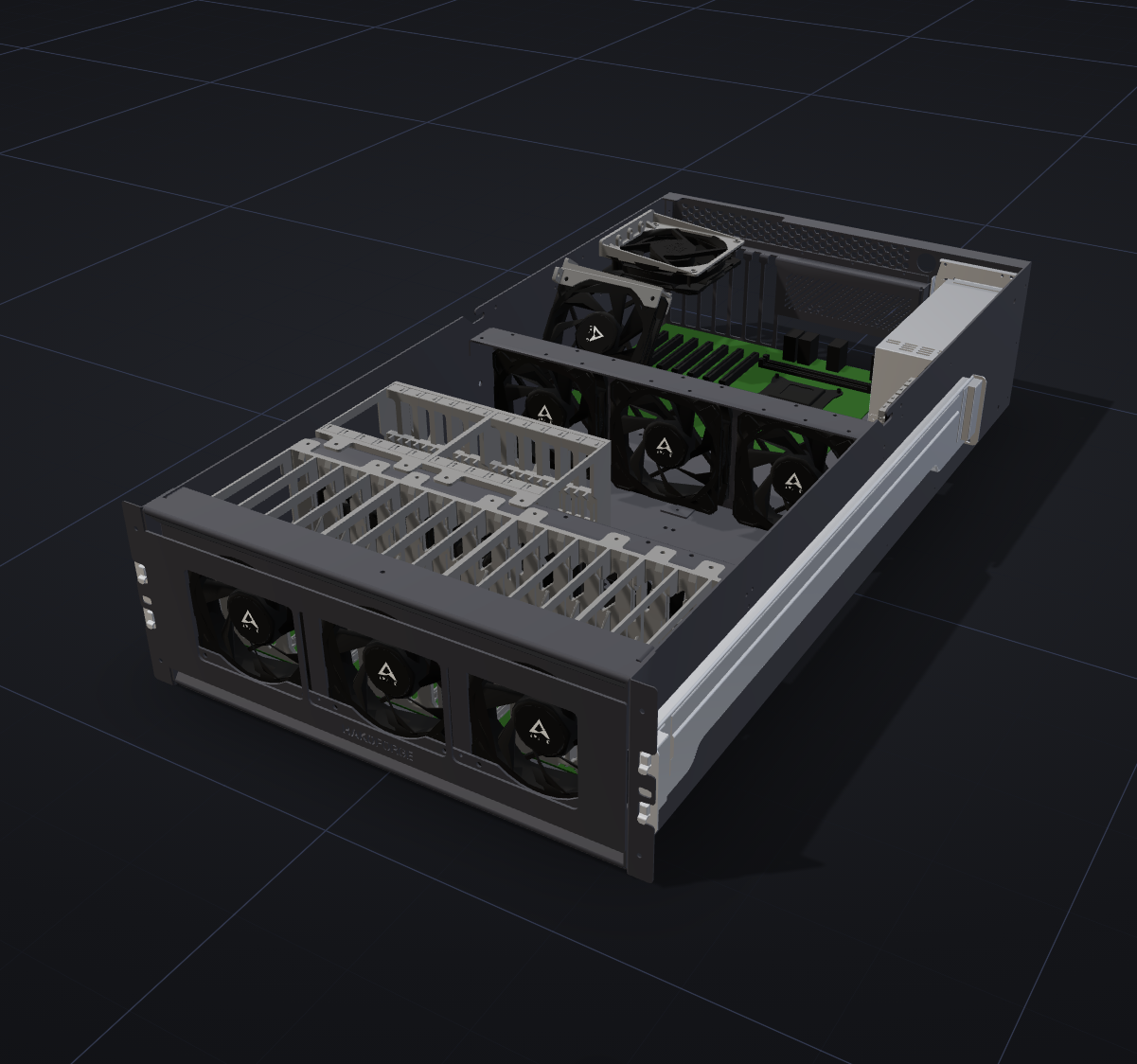

BUILD IT IN 3D
Configure any HakoForge chassis β Core, Mini, or Lite.

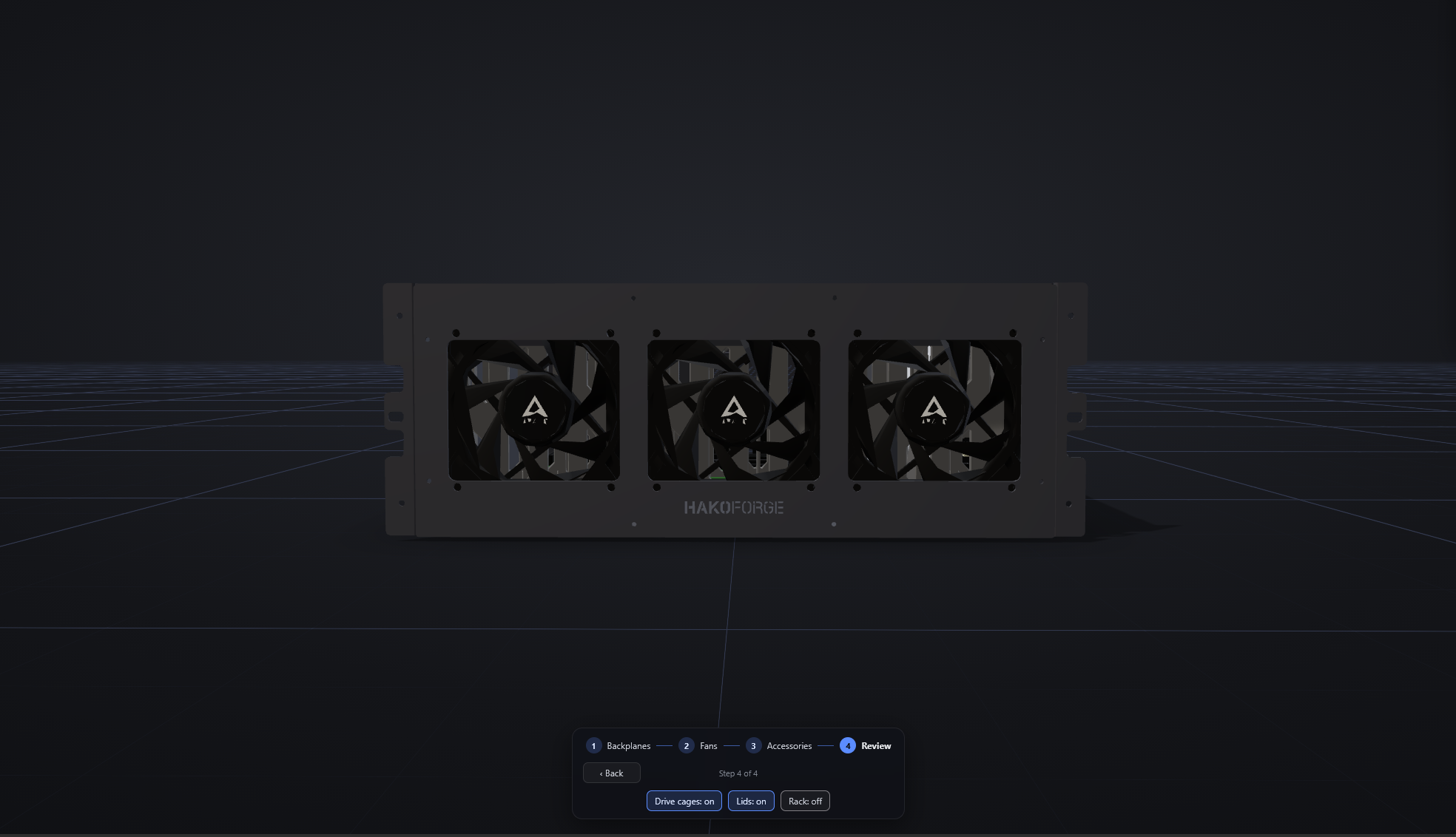

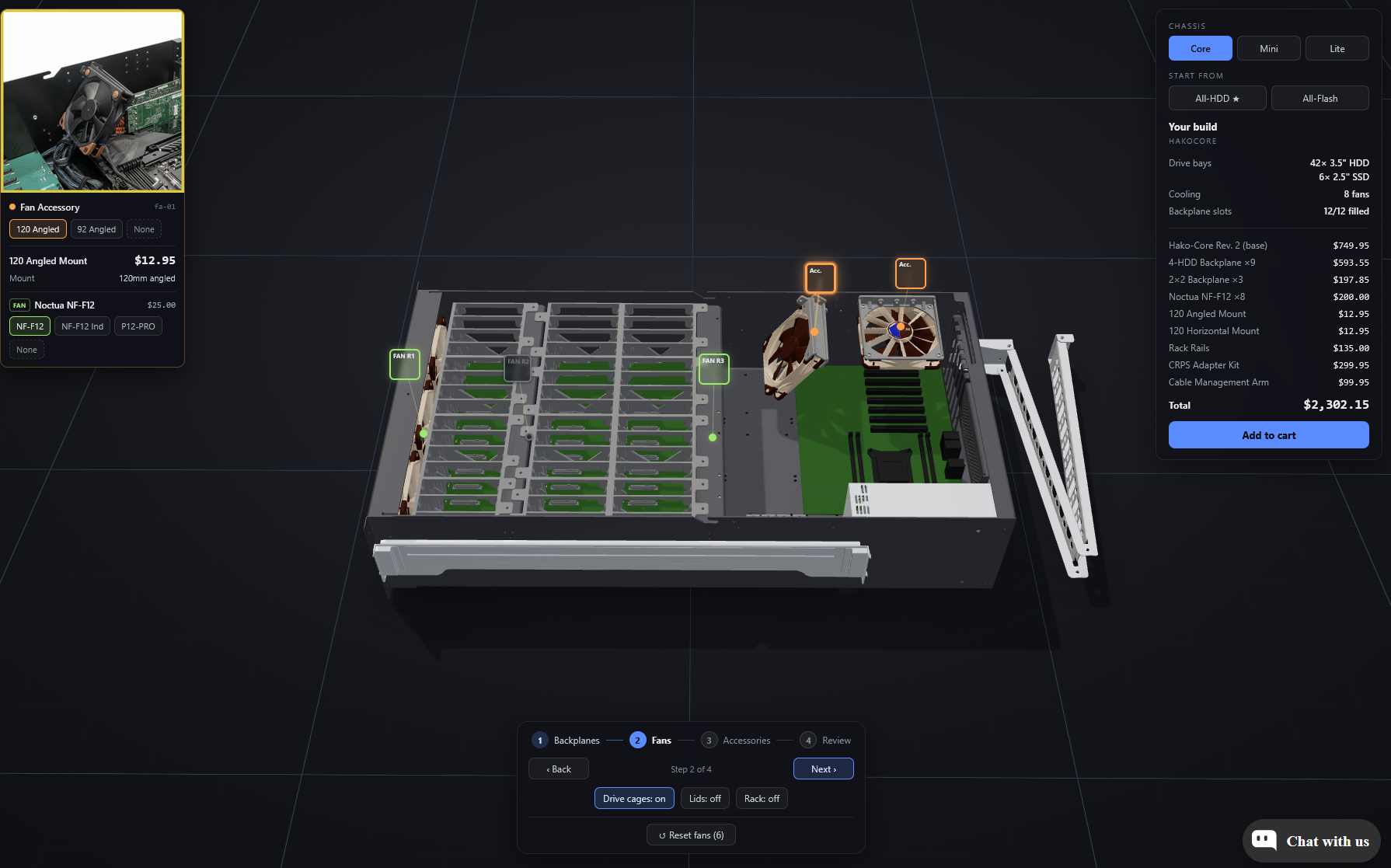

Design your build in a live 3D configurator. Drop in backplanes, cooling, power and rails, see how every part fits β right down to motherboard clearance β and preview it mounted in a 36-inch rack. Build it step by step, then add your exact spec to cart.
- Core, Mini & Lite β your pick
- Up to 114 SSDs or 42 HDDs
- Live motherboard & part fit checks

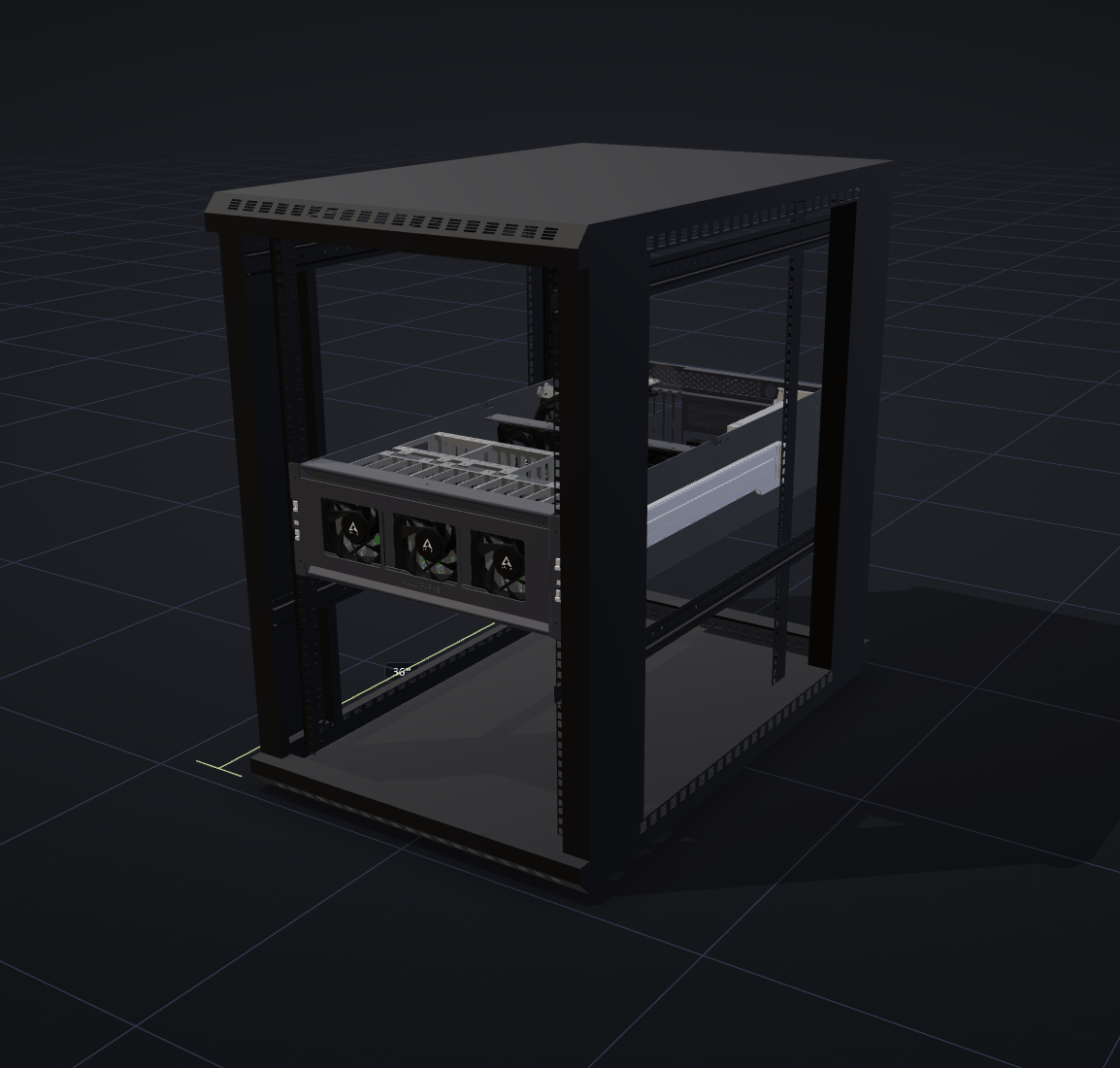

- See it racked β 36β³ depth
SPECIFICATIONS
Compare the lineup
- Drive capacity
- Up to 42Γ 3.5β³ HDD + 6Γ 2.5β³ SSD β or 114Γ 2.5β³ SSD
- Backplane slots
- 12 (9 full size + 3 hybrid)
- Cooling
- Up to 12 fans across three airflow zones
- Motherboard
- ATX Β· E-ATX Β· Micro-ATX Β· Mini-ITX
- Power
- CRPS dual-PSU adapter kit + 2 power boards
- Rack
- Rack-mountable Β· 36β³ depth
- Expansion
- Full-height PCIe
- Drive capacity
- Up to 28Γ 3.5β³ HDD + 4Γ 2.5β³ SSD β or 76Γ 2.5β³ SSD + 4Γ 3.5β³ HDD
- Backplane slots
- 8 (6 full size + 2 hybrid)
- Cooling
- Up to 9 fans
- Motherboard
- ATX Β· E-ATX Β· Micro-ATX Β· Mini-ITX
- Power
- CRPS dual-PSU adapter kit + power board
- Rack
- Rack-mountable Β· 36β³ depth
- Expansion
- Full-height PCIe
- Drive capacity
- 14Γ 3.5β³ HDD + 2Γ 2.5β³ SSD β or 16Γ 2.5β³ SSD
- Cooling
- Up to 9 fans
- Motherboard
- ATX Β· Micro-ATX Β· Mini-ITX (no E-ATX)
- Power
- CRPS adapter kit
- Rack
- Rack-mountable Β· 36β³ depth
- Expansion
- Full-height PCIe
- Installation
- Fully Preinstalled.

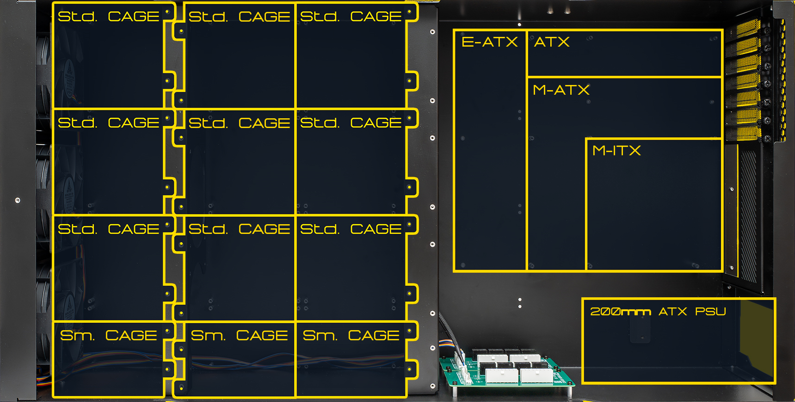

01 STORAGE
Your Data, Your Way
Twelve modular bays take standard and small cages in any mix β up to 42Γ 3.5β³ HDDs, or 114Γ 2.5β³ SSDs, on a single chassis. Universal motherboard support from Mini-ITX to E-ATX means the Hako-Core fits the build you already have in mind.

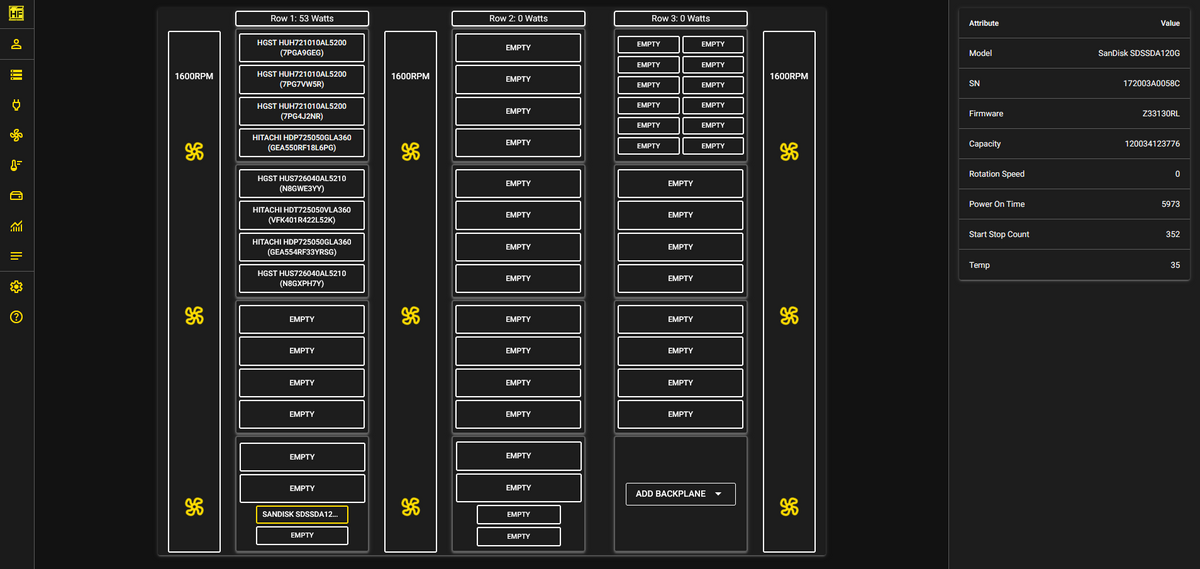

02 POWER & CONTROL
One Board, Total Control
A single power board drives every fan with true PWM speed control and monitors drive power draw β one management point, no cable clutter.

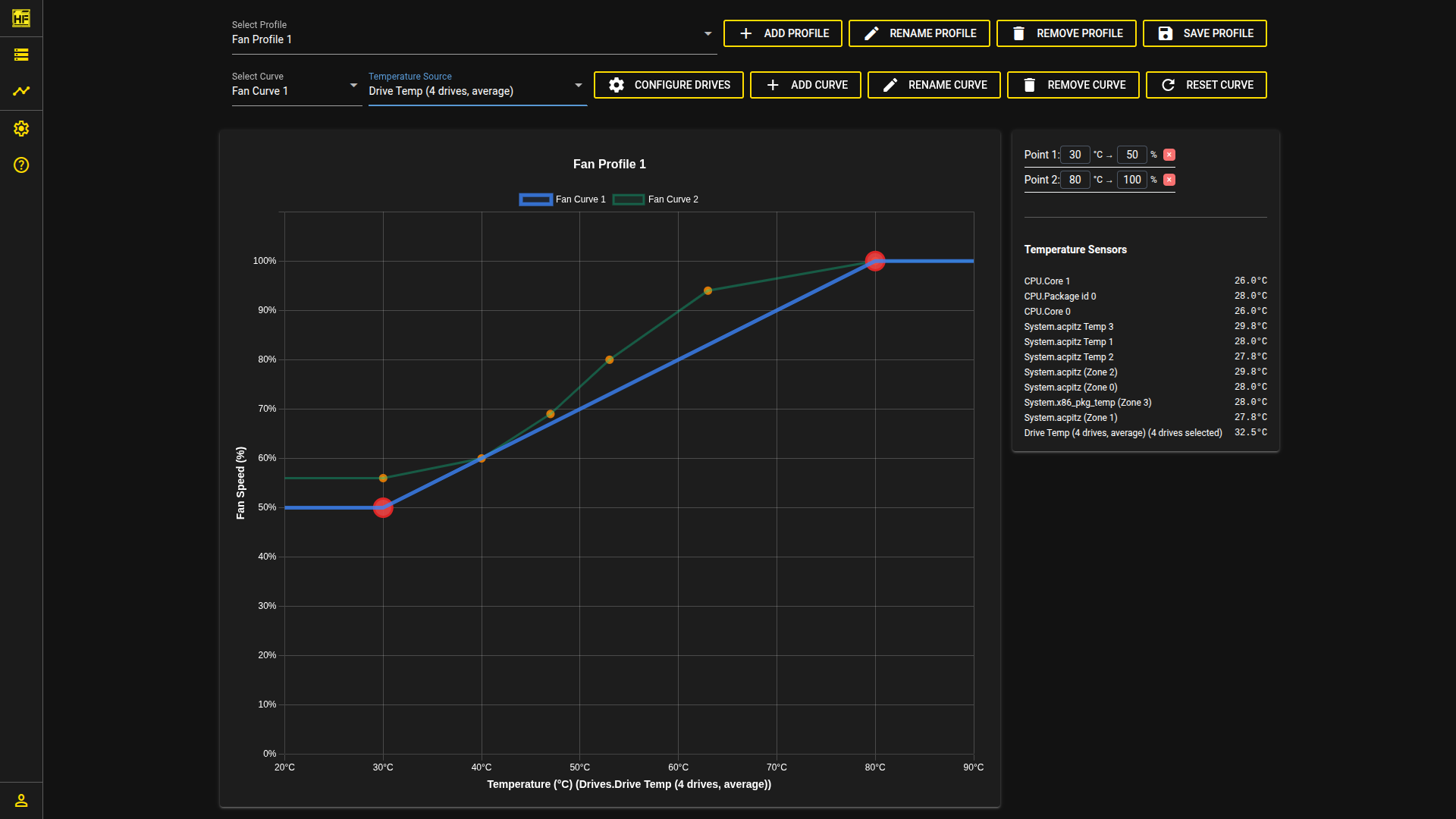

Pair it with HakoForge Foundry to tune fan curves and watch your system live.

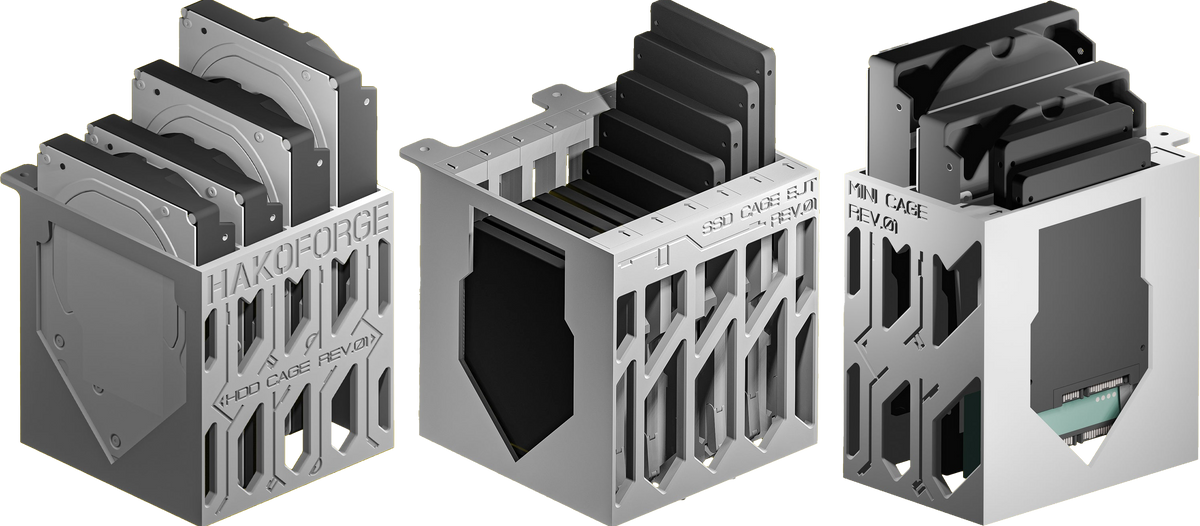

03 MODULARITY
Fully Customizable
Fan brackets, drive cages and mounts all swap in and out β a Hako-Core built for HDD capacity today becomes an all-flash, high-airflow box tomorrow. Nothing is locked in.

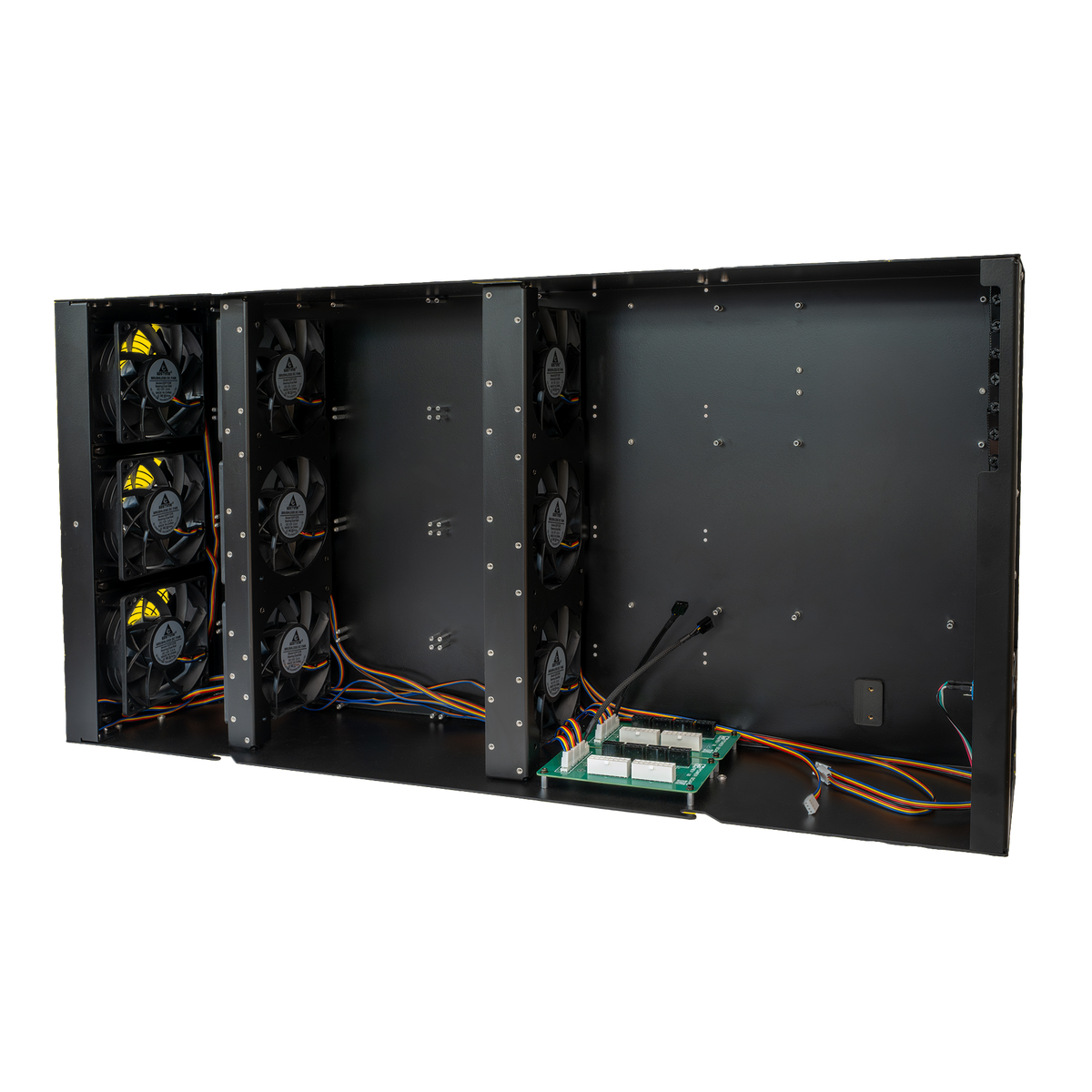

04 COOLING
Superior Cooling Performance
An intelligent three-zone layout supports up to twelve fans β three rows of three (nine in total) for primary airflow across every drive, plus three auxiliary mounts for PCIe-slot and rear-exhaust cooling.
ECOSYSTEM
Application
Choose how to utilize your Hako-Core β through popular apps and other methods for optimal storage utilization.

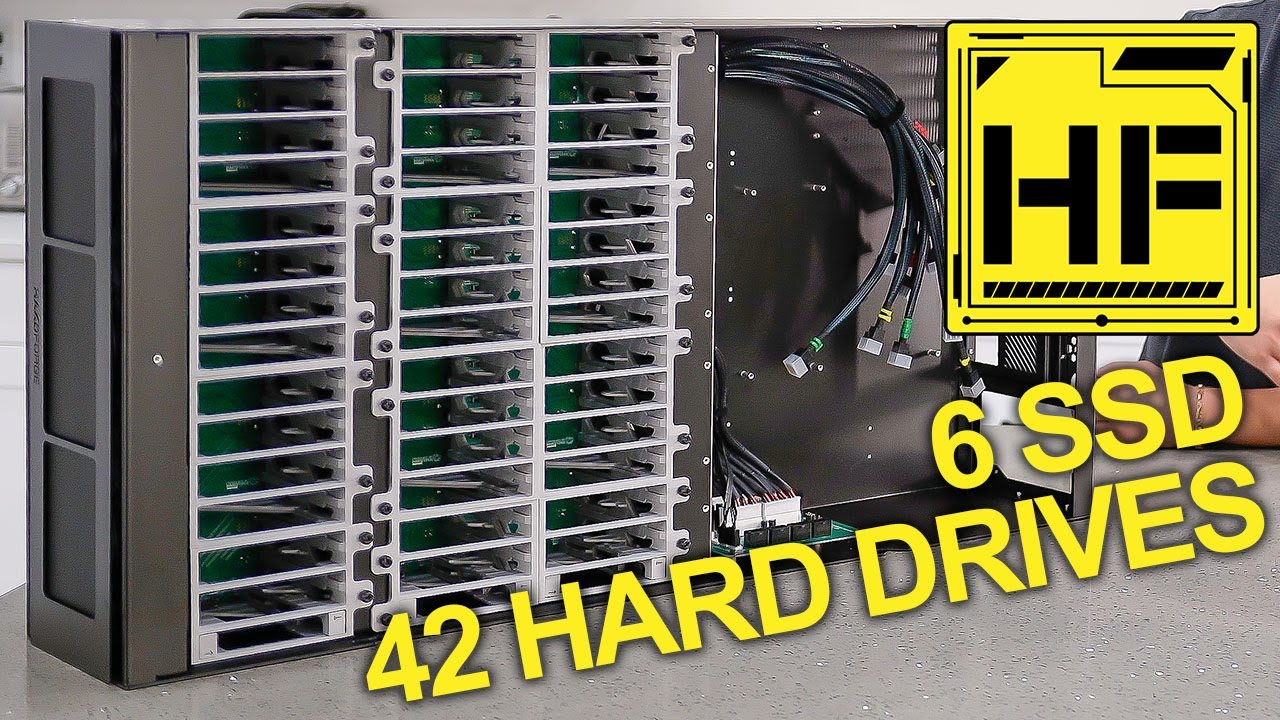

WATCH
Quick Overview
