Hako-Core Mini Rev. 2

$549.95
$549.95

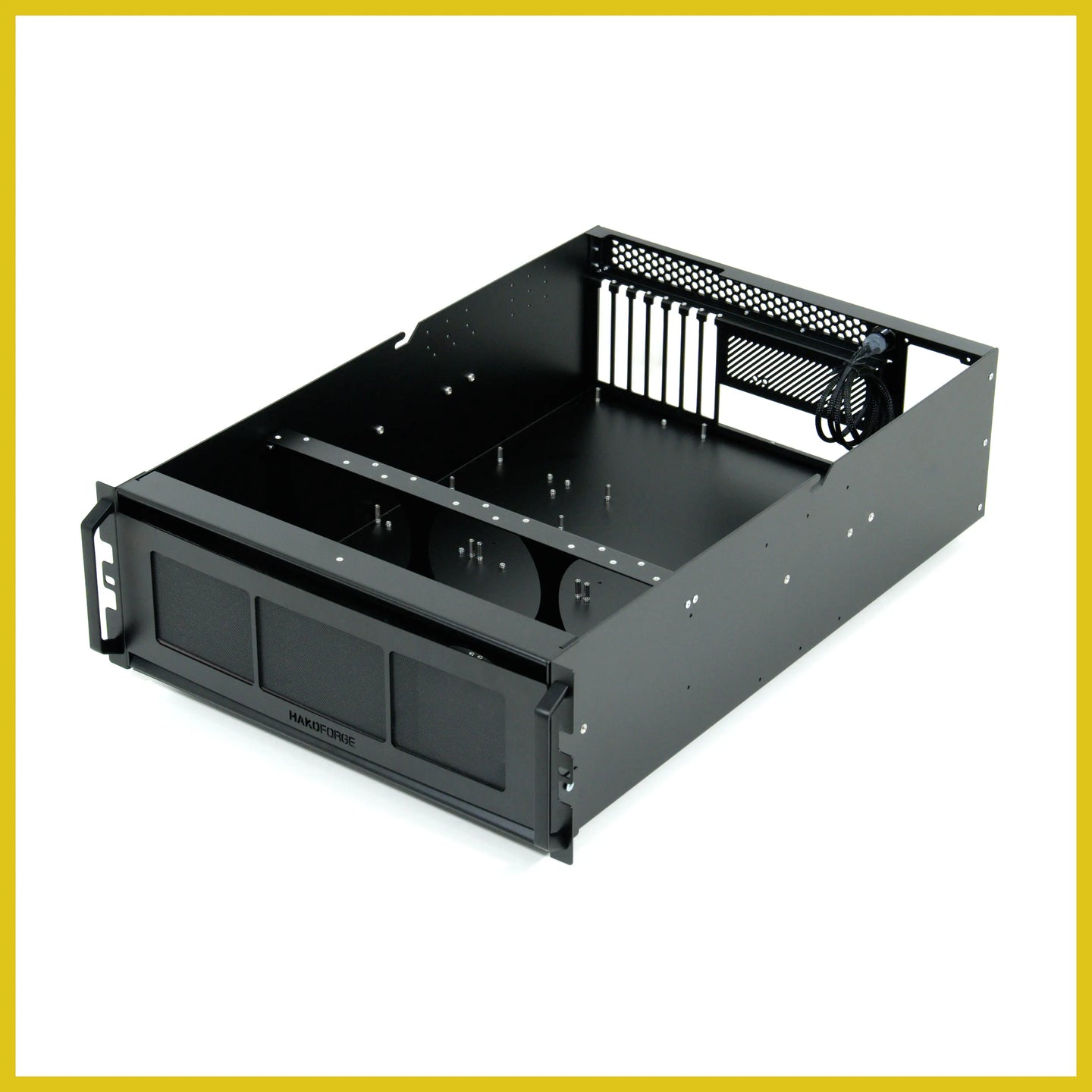

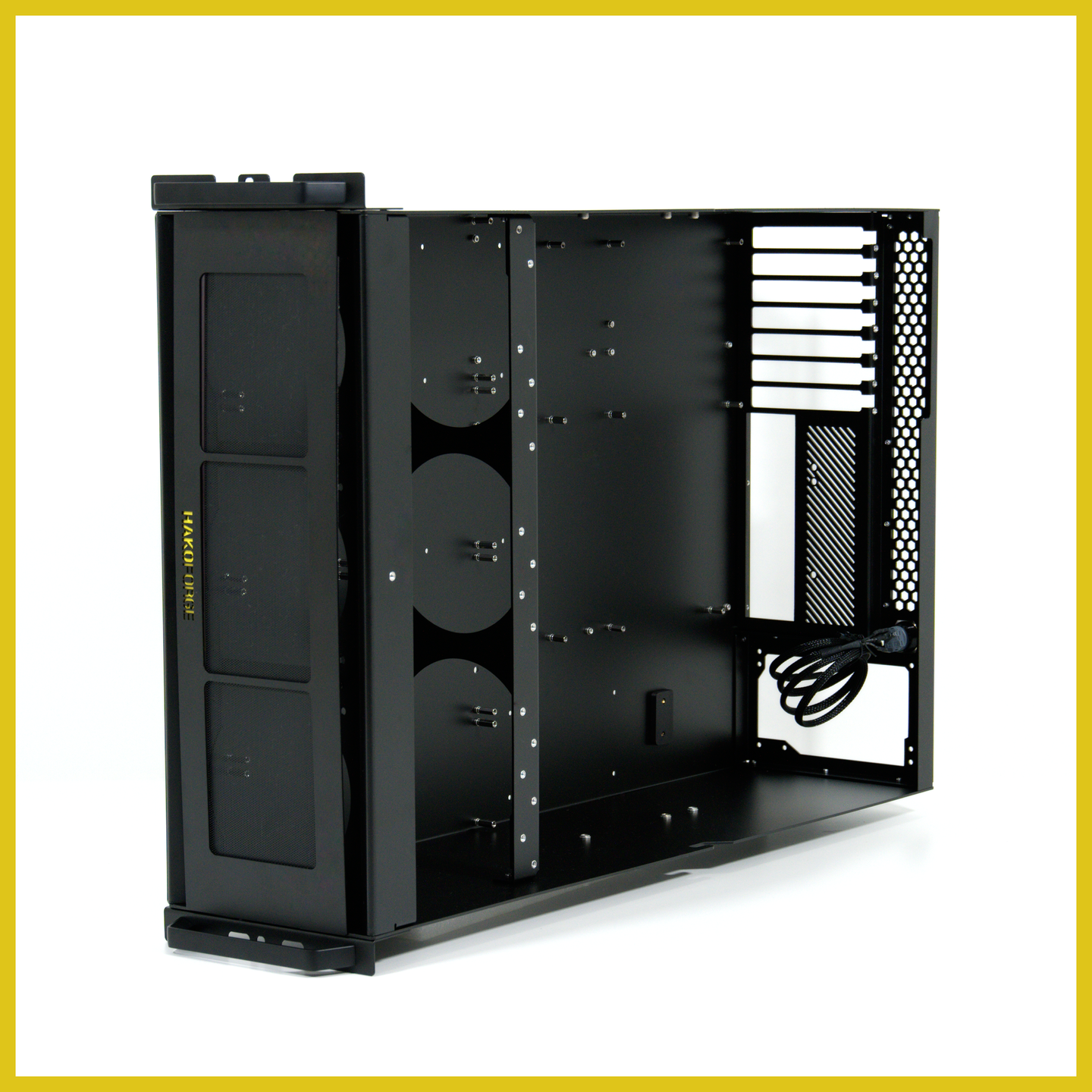

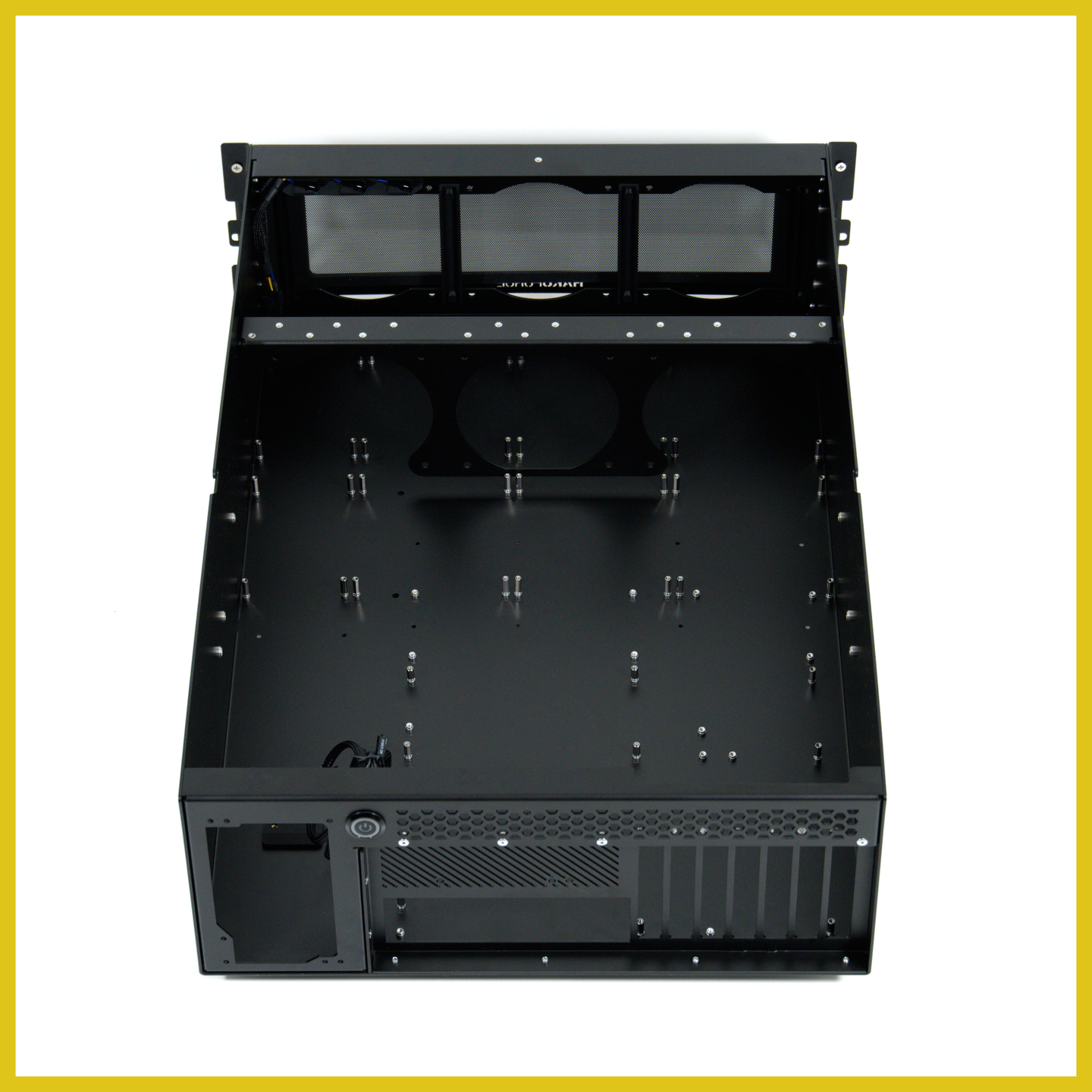

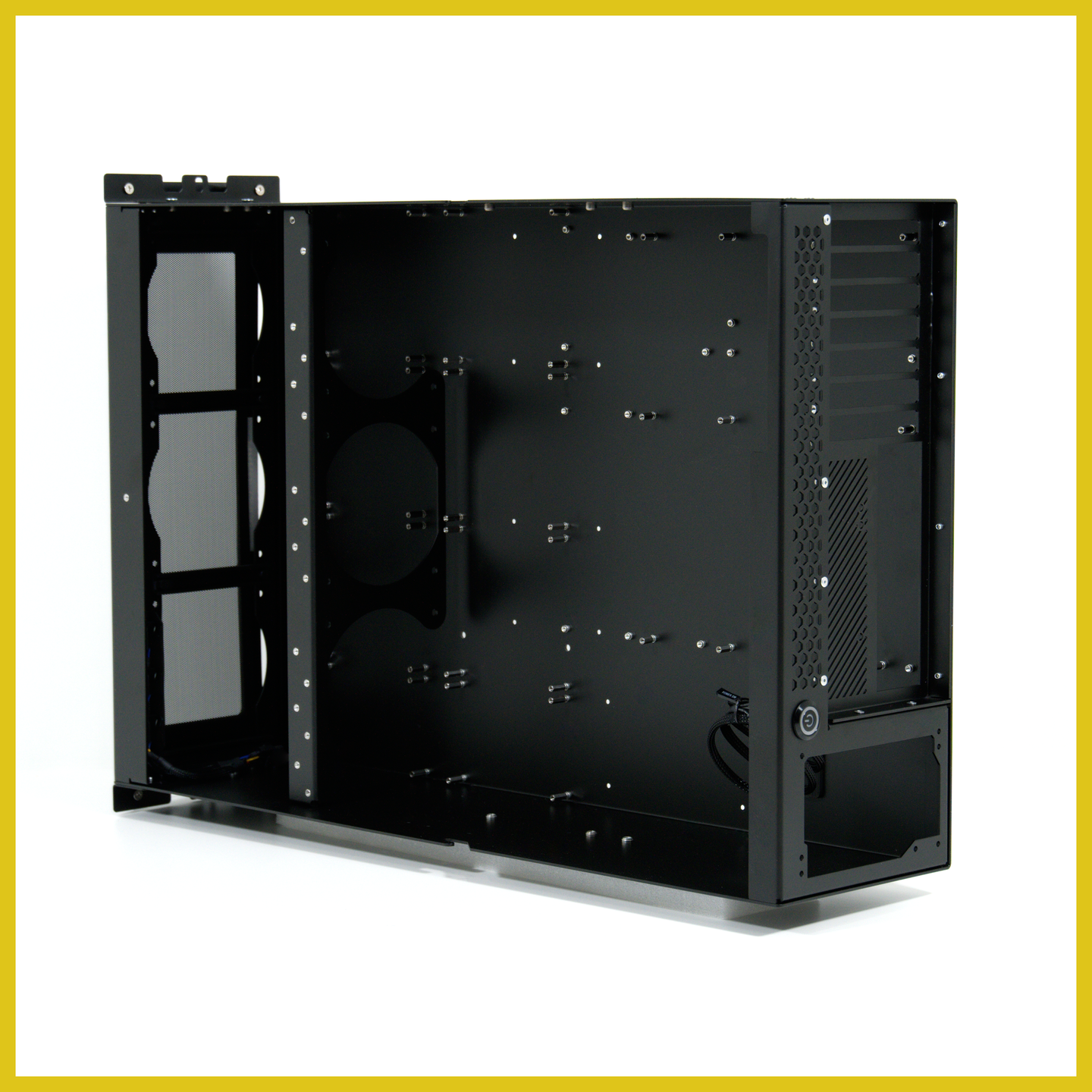

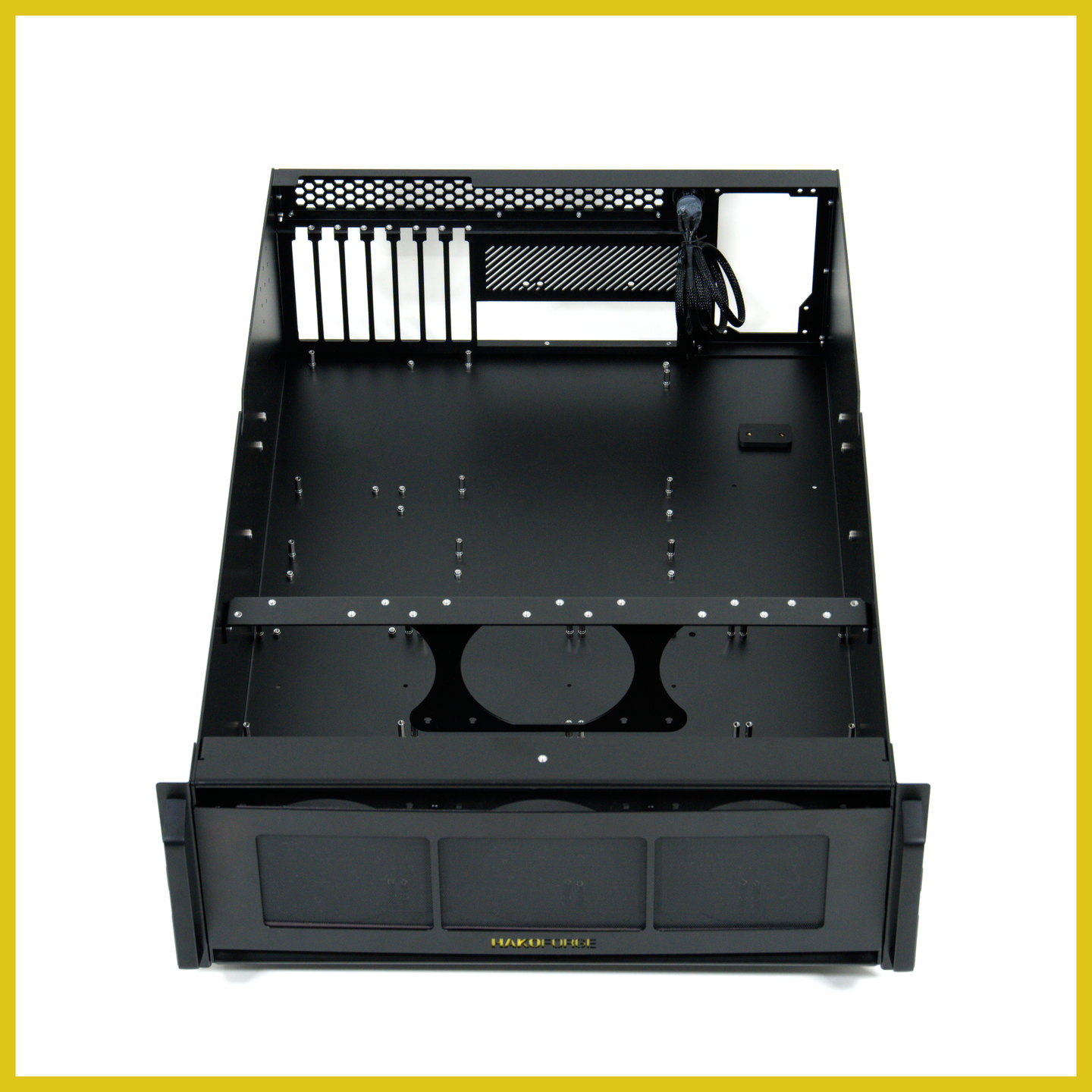

The Hako-Core Mini Rev. 2 is a more compact version of the Hako-Core. Versatile modular server chassis designed for tech enthusiasts, home server builders, and small businesses. Its customizable design supports a range of HDD and SSD configurations, allowing you to easily adapt the setup to your evolving storage needs. Ideal for media servers, NAS setups, or data storage solutions.



SHIPS: 3-4 WEEKS

Included

Powerboard, needed wires, drive removal tools.

Material

Powder Coated Aluminum.

Color

Black.

Form Factor

4U.

Dimensions

26" x 17.25" x 6.875".

Mother Board Support

Mini-ITX, Micro ATX, ATX, EATX, XL-ATX, FlexATX, Mini-DTX, SSI-CEB, SSI-EEB

Weight

15 lbs default configuration.

CPU Cooler Clearance

~150mm +- 5mm depending on Mobo

GPU Clearance

Length: ~377mm Height: ~154mm

Backplane

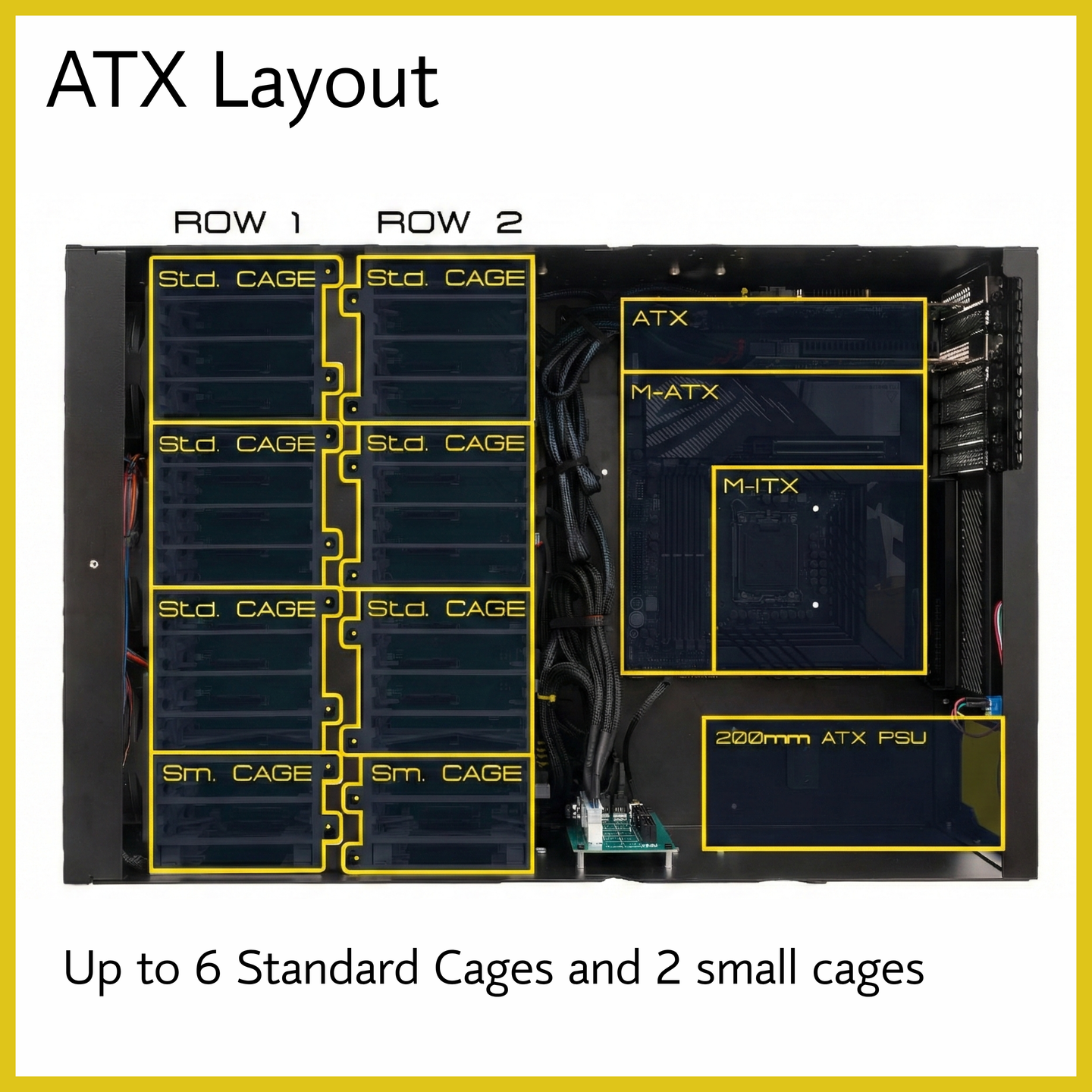

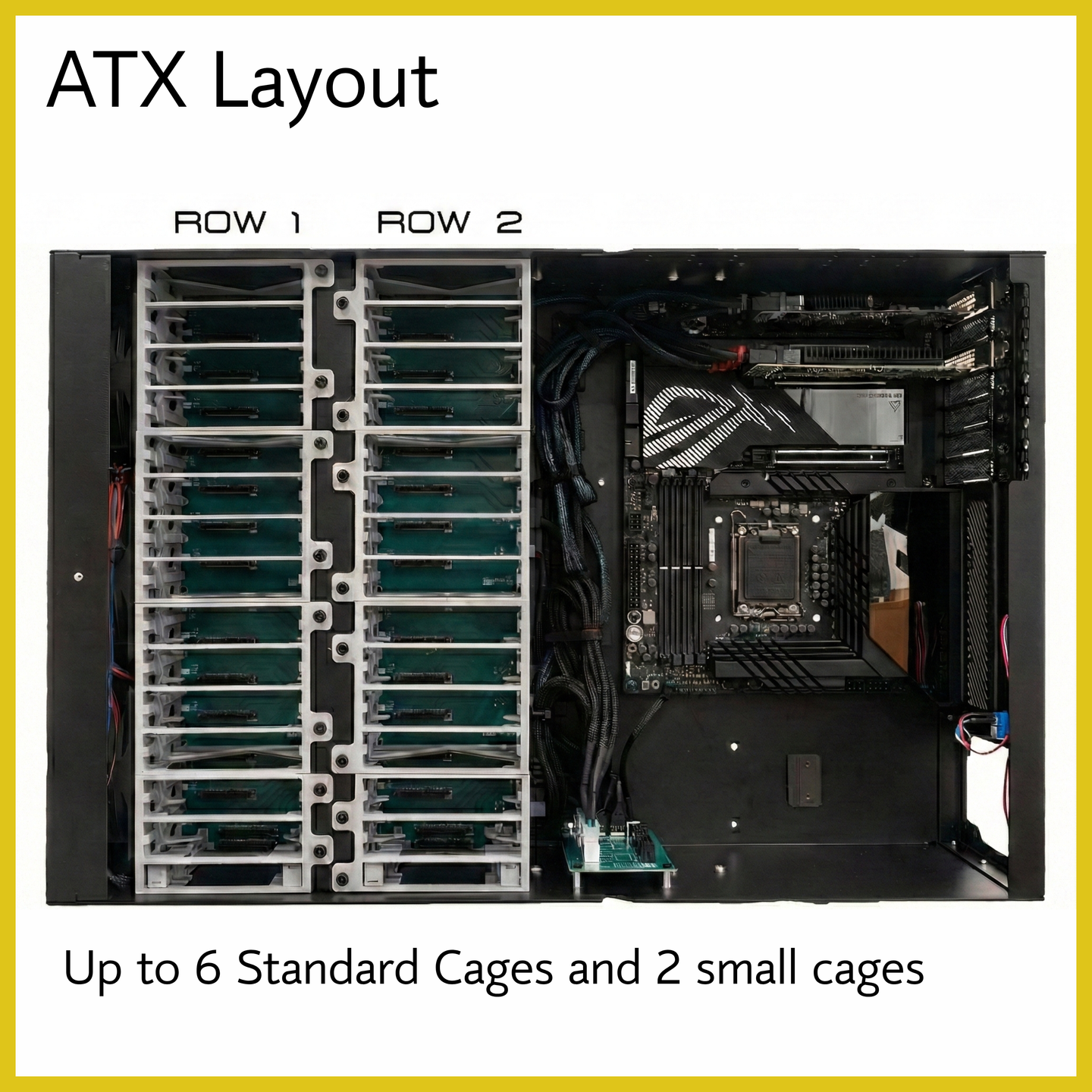

Holds up to 6 Standard drive cages and 2 Mini drive cage.

Power Supply Support

ATX, (With Adaptor)SFX

Updated - 02/10/2025



  • Added - Support for all backplanes on the second row.
  • Added - Mount points for PCIe accessory fan brackets.
  • Added - Mount points for rear exhaust fans (92mm & 80mm).
  • Added - Mount points for a cable management bracket.
  • Added - Support for most, if not all, motherboard form factors: SSI-CEB, SSI-EEB, (XL, E, Micro, Flex) ATX, Mini-DTX, Mini-ITX.
  • Added - More power board mount locations.
  • Added - Support for different PSU orientations.

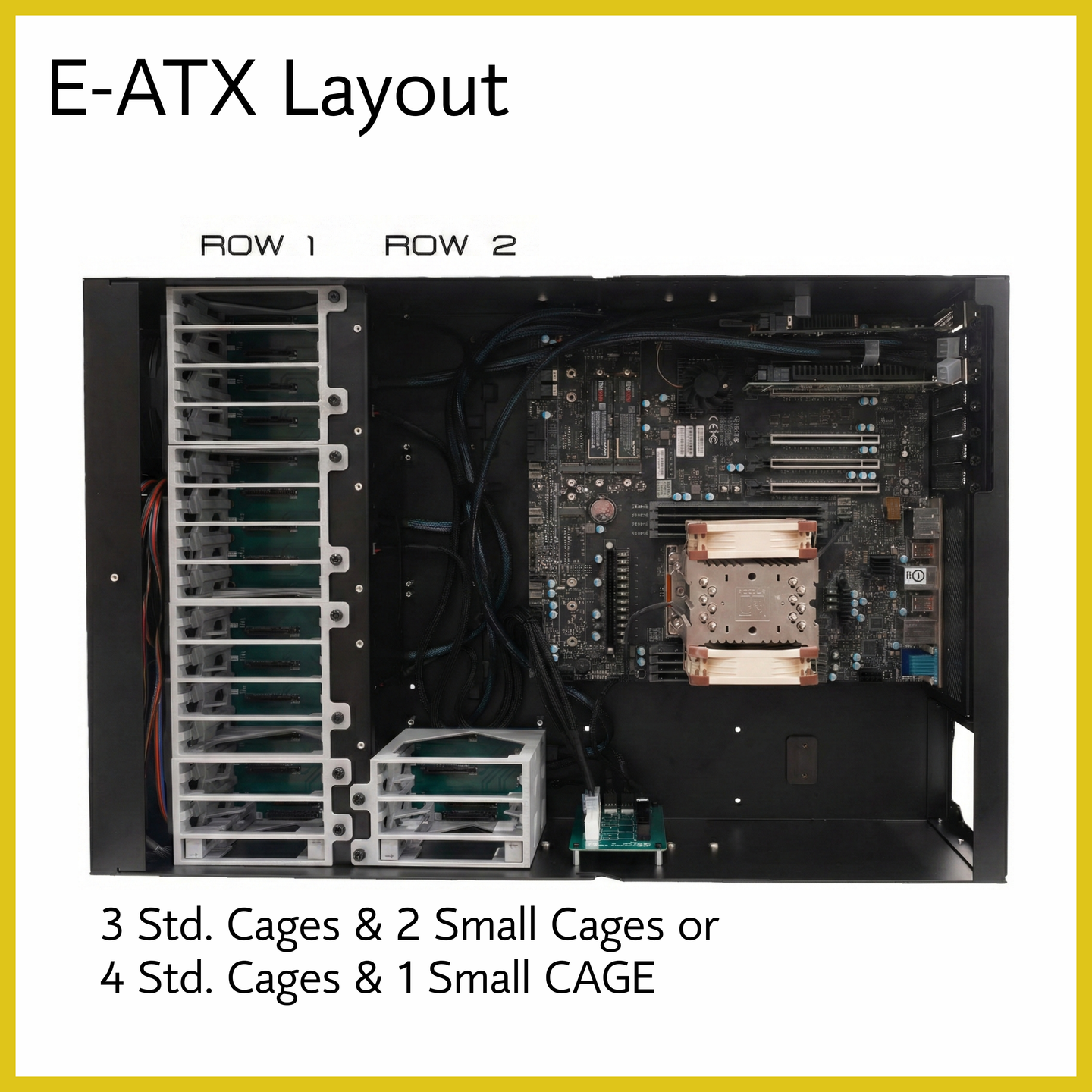

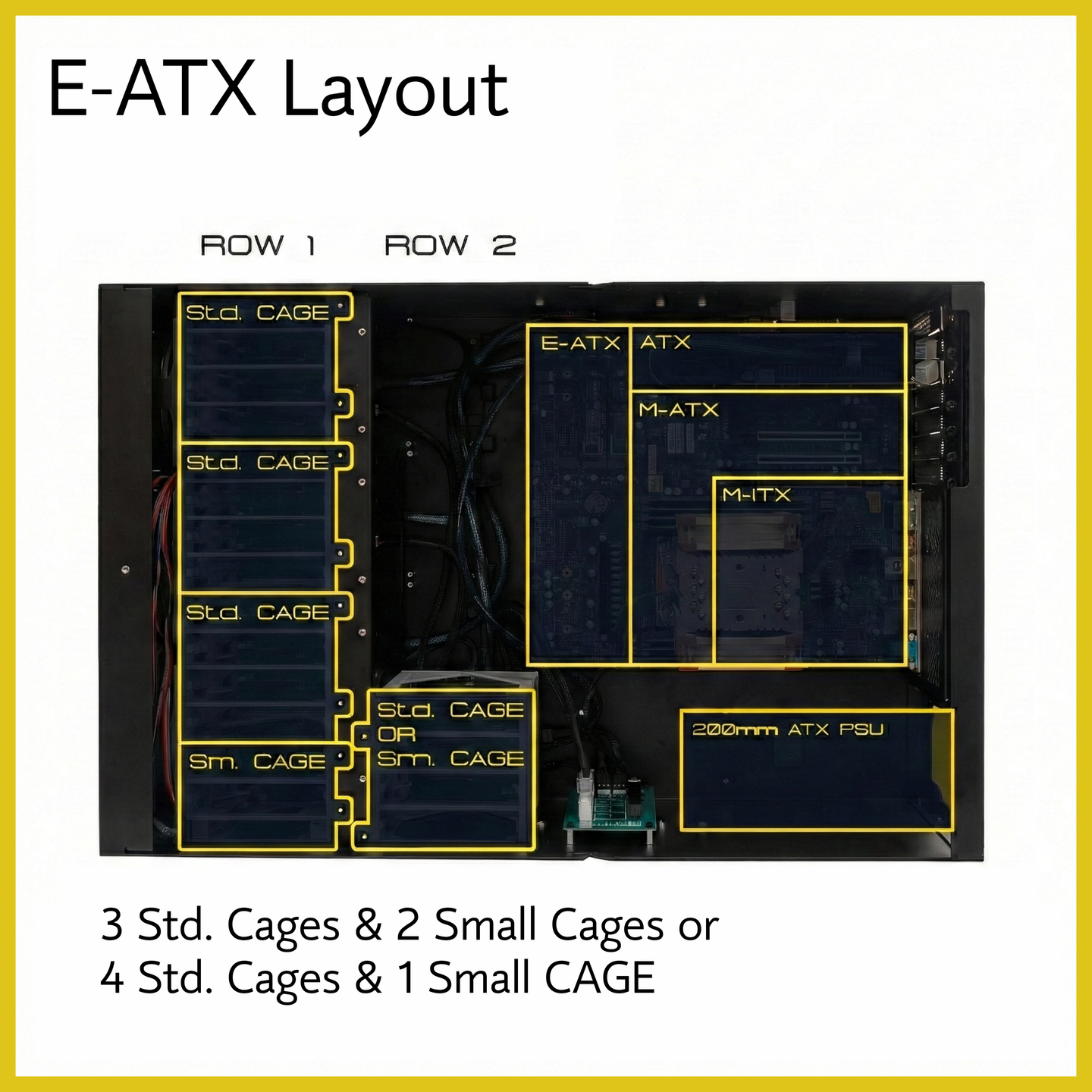

  • Added - Support for one standard backplane in place of the mini backplane when using an EATX motherboard.



  • Changed - Made case 2.5" LONGER - Final 26" Depth.
  • Changed - Rotated power board for more PSU clearance and better plug access.
  • Changed - Improved process for attaching magnets.
  • Changed - Updated "fan hub" for each row of fans (fixes issue with removing backplanes to wire/unwire fans).
  • Changed - Better labeling for power board and SAS cables.
  • Changed - All screws now have Loctite.
  • Changed - Updated packaging to help prevent damage.
What is included?
Powerboard, needed wires, drive removal tools.
When is shipping?
We are preparing orders in batches, so batch 1 will be shipping in december.
What is the deposit?
We are asking for $100 to secure your product and you will pay the rest when we prepare to ship.
Where can we get 3d printed drive cages?
We are selling them individually on the site, but they are also available on our github to download and print at home.

  • Safe Shipping

    Shipped with custom

    foam and heavy duty box

  • Batch Orders

    Large groups of products

    will be finished at the same time

  • Quality Assurance

    Ensured that all parts are

    correct and working
