Once all existing stock is sold, item will be discontinued.

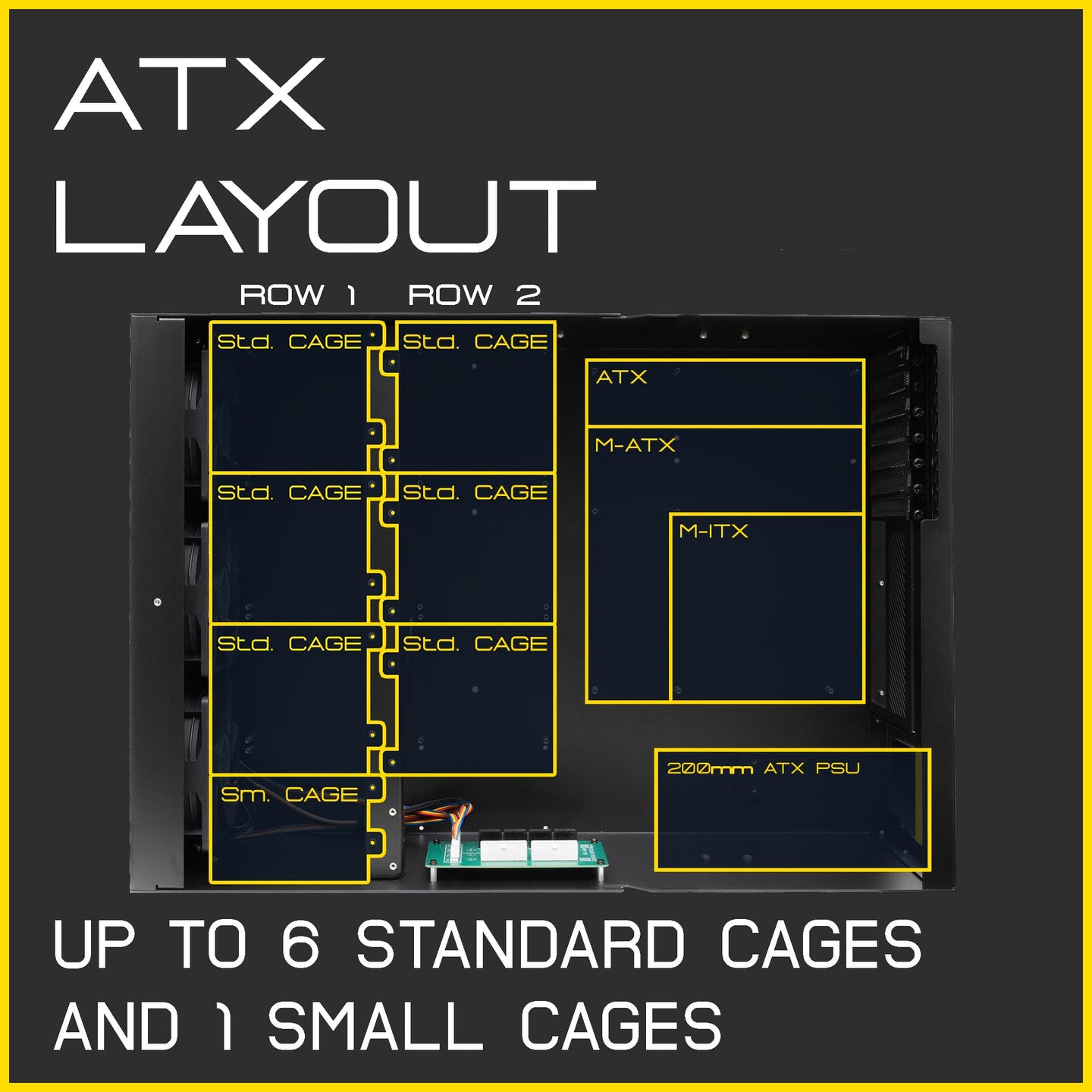

*Row 2 of pcb's and cages may interfere with motherboards of ATX size and bigger.*

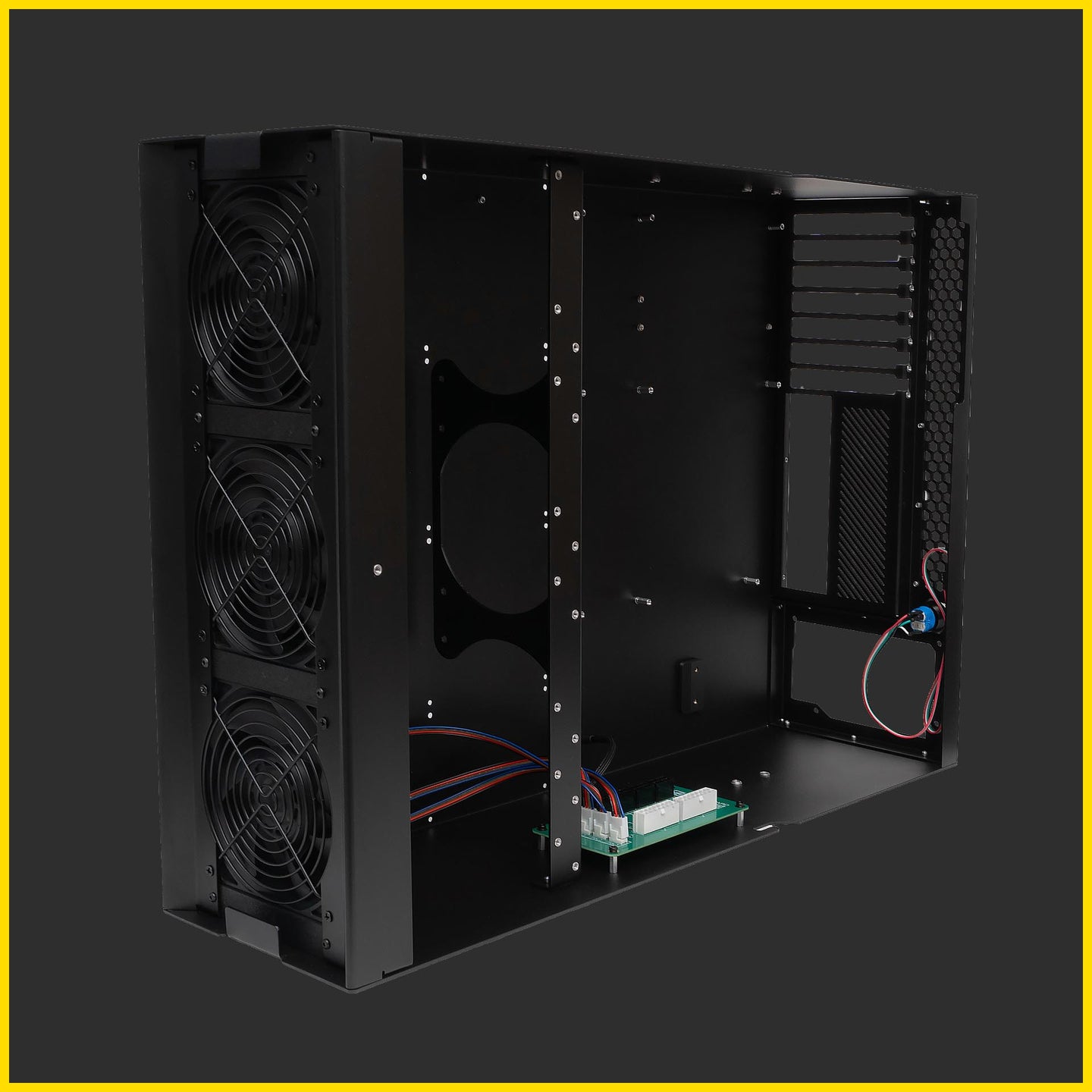

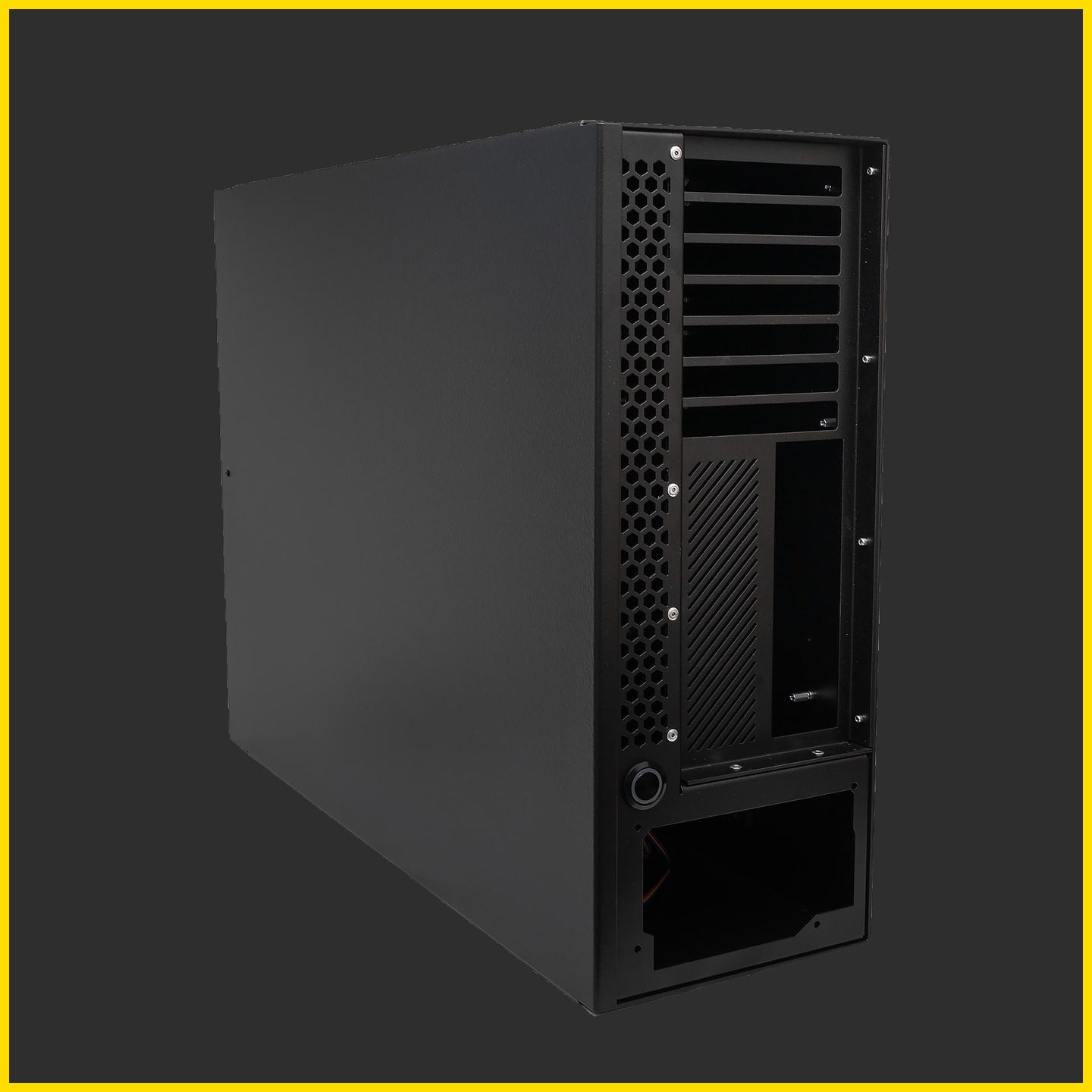

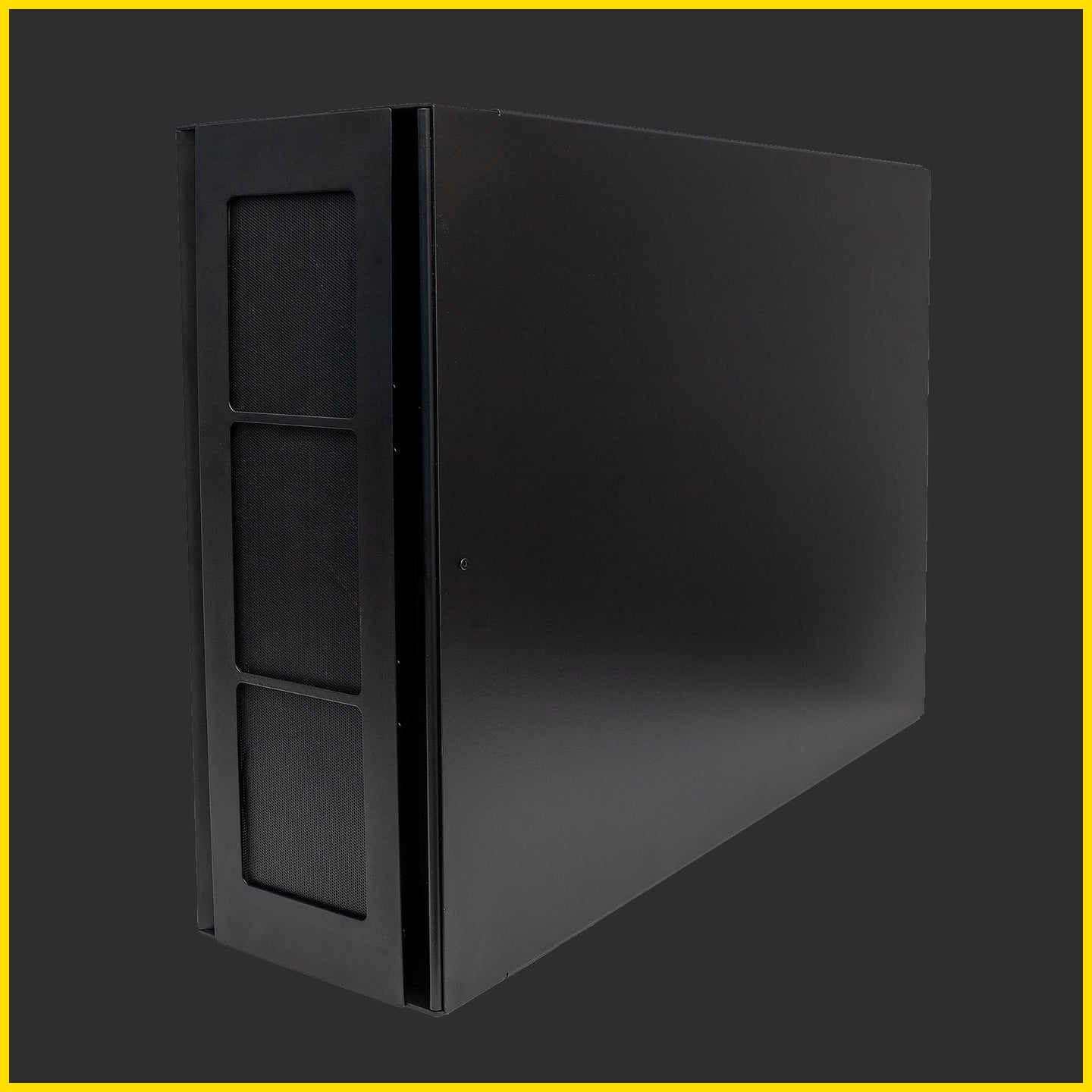

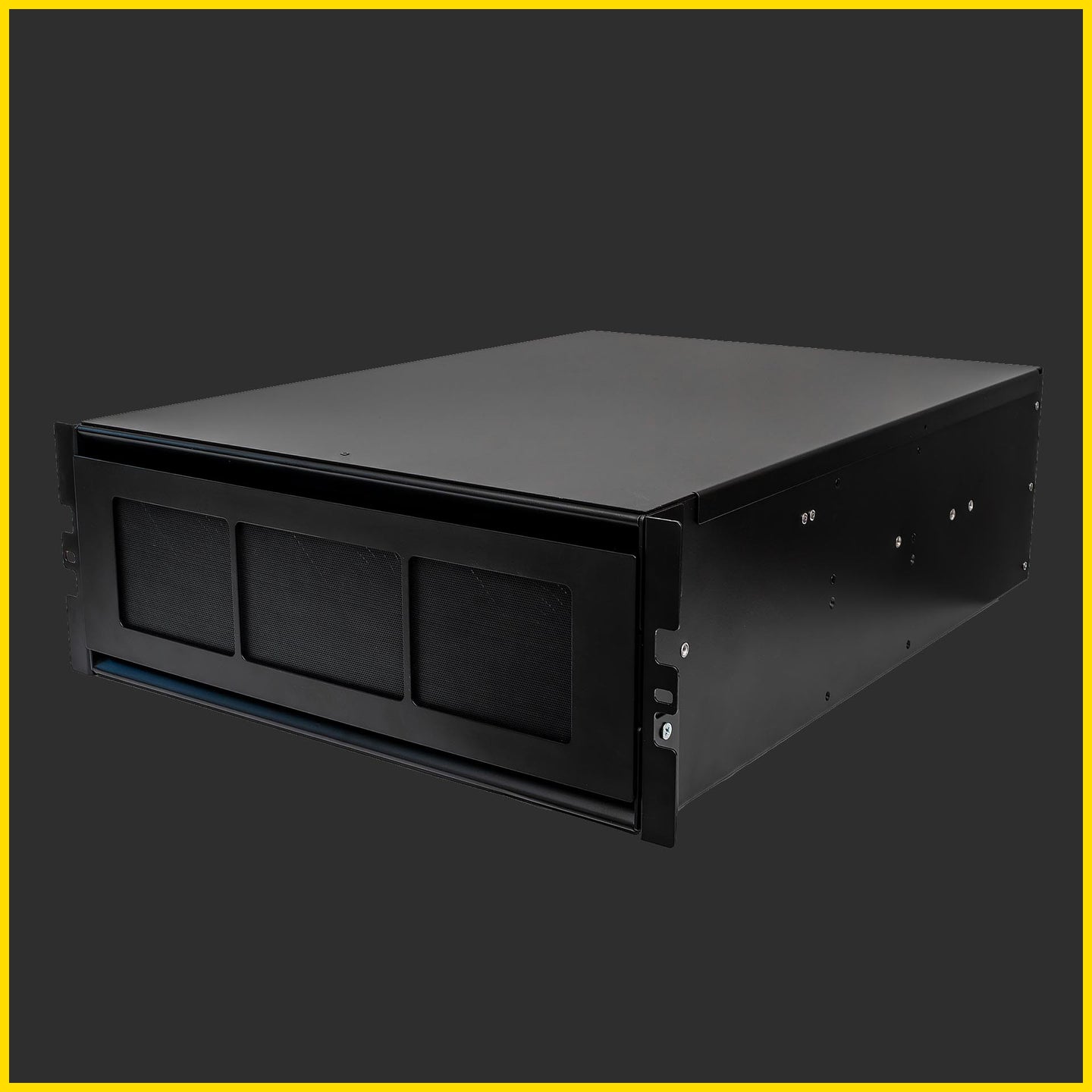

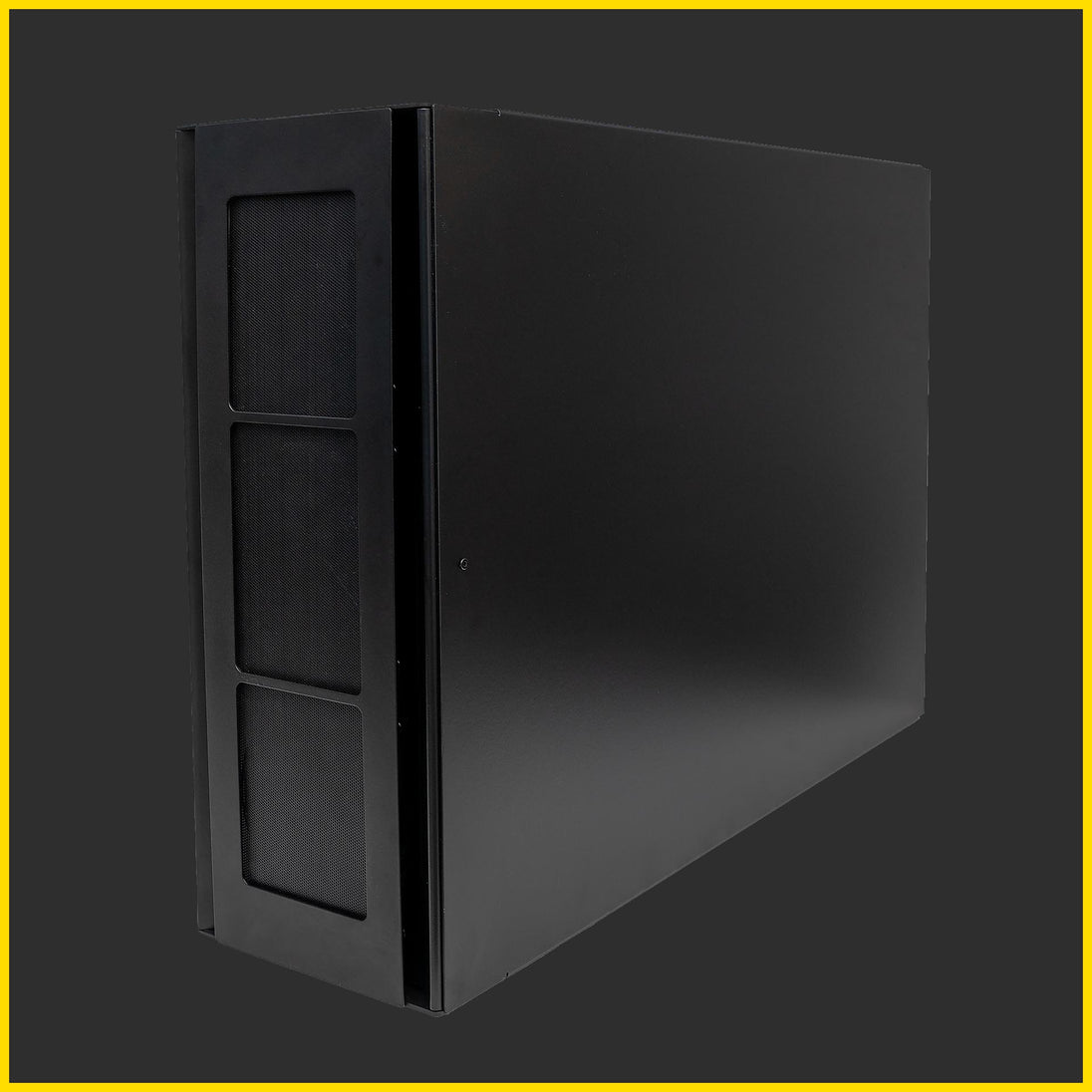

The HakoCore Mini is a more compact version of the HakoCore Large. Versatile modular server chassis designed for tech enthusiasts, home server builders, and small businesses. Its customizable design supports a range of HDD and SSD configurations, allowing you to easily adapt the setup to your evolving storage needs. Ideal for media servers, NAS setups, or data storage solutions.
SHIPS: 2-3 WEEKS
Specification
Included
Powerboard, needed wires, drive removal tools.
Material
Powder Coated Aluminum.
Color
Black.
Form Factor

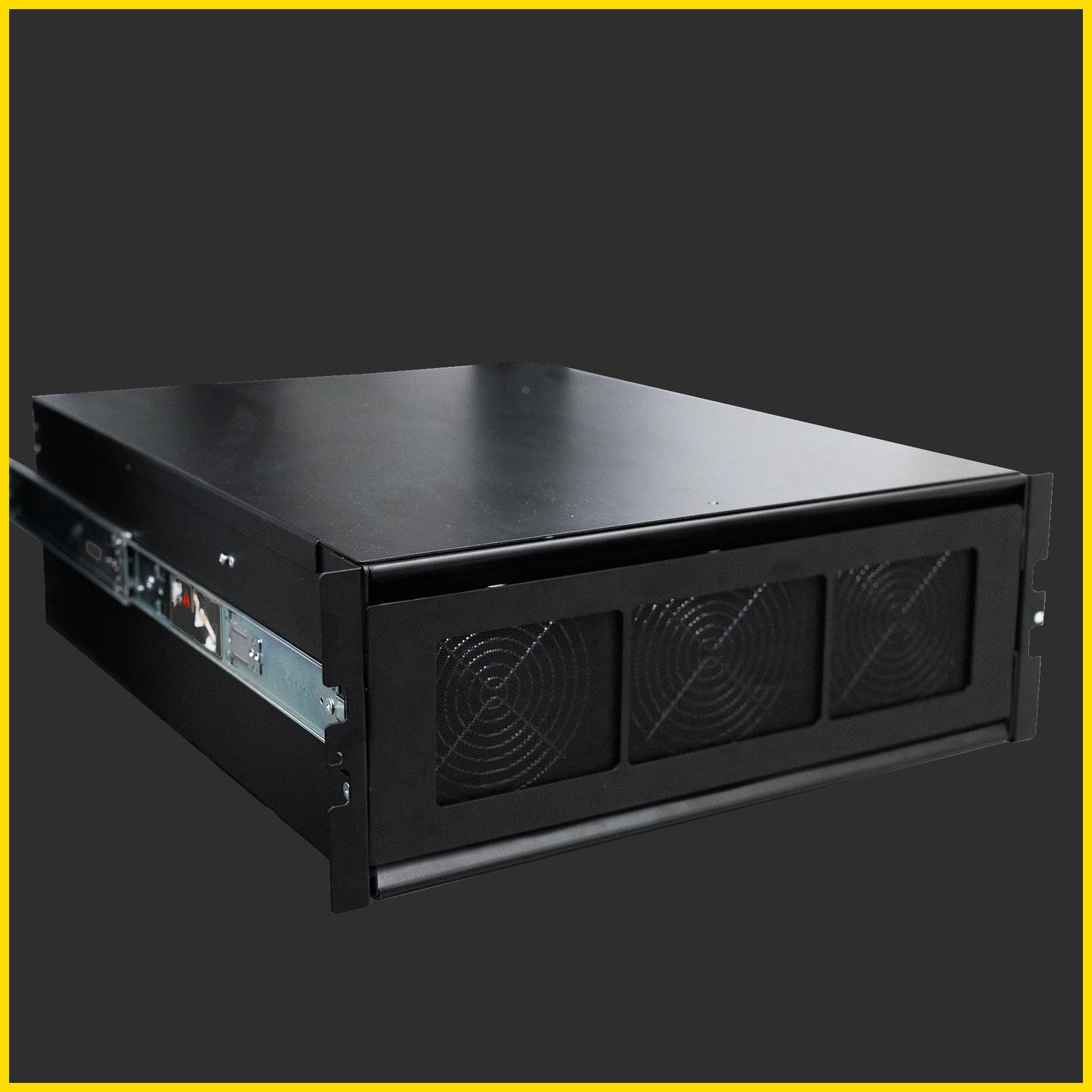

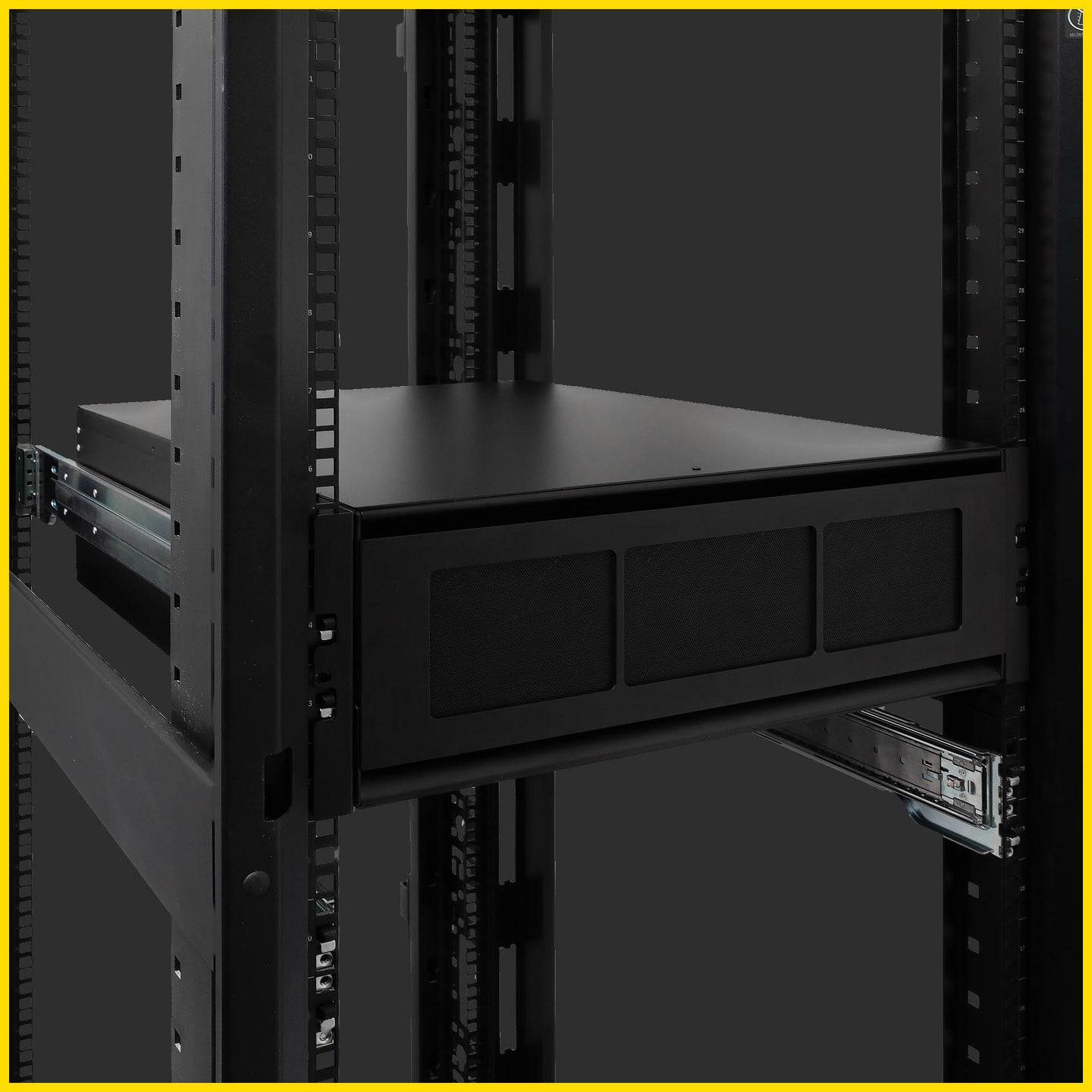

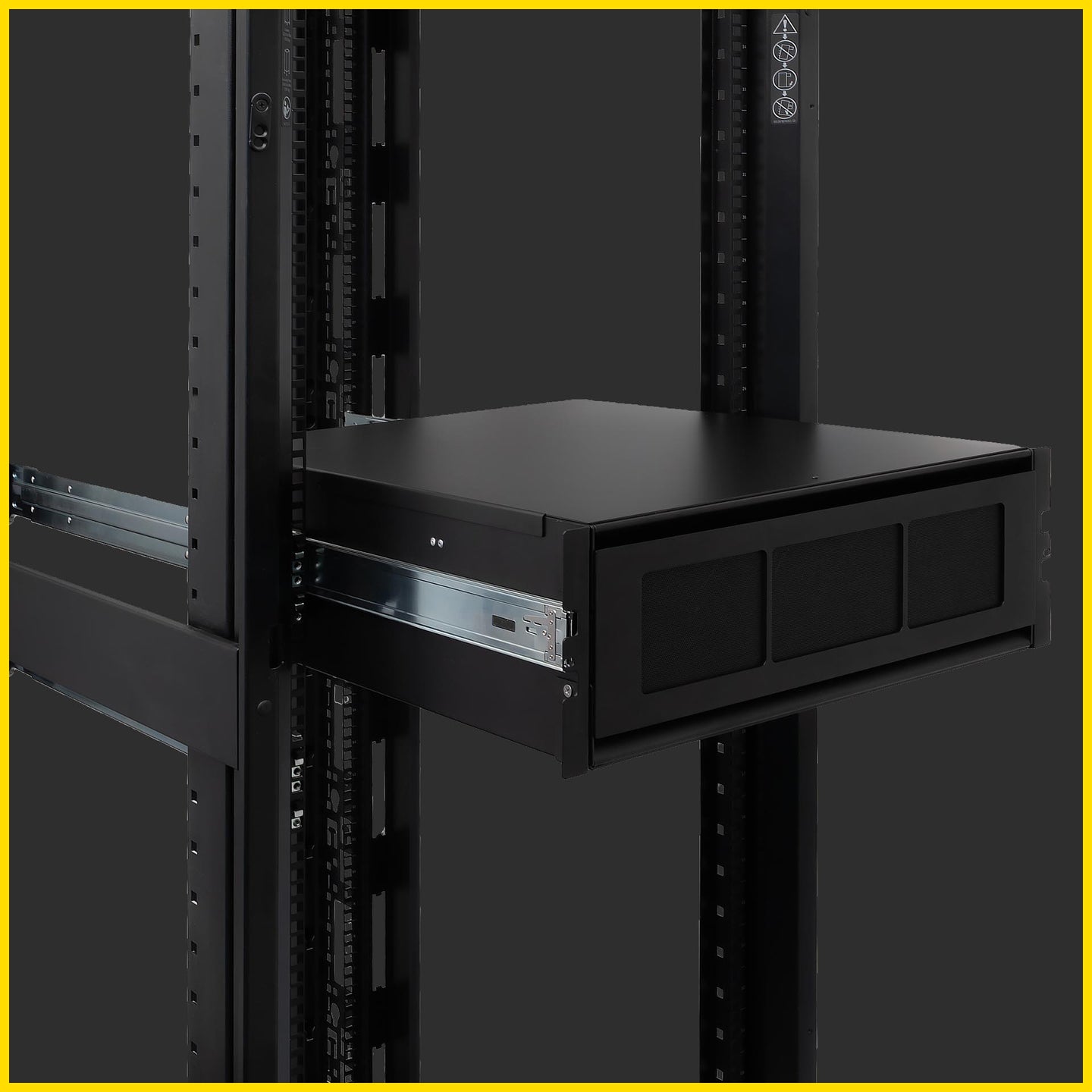

4U.
Dimensions
23.5" x 17.25" x 6.875".
Mother Board Support
Mini-ITX, Micro ATX, ATX, EATX.
Weight
15 lbs default configuration.
CPU Cooler Clearance
~150mm +- 5mm depending on Mobo
GPU Clearance
Length: ~377mm Height: ~154mm
Backplane

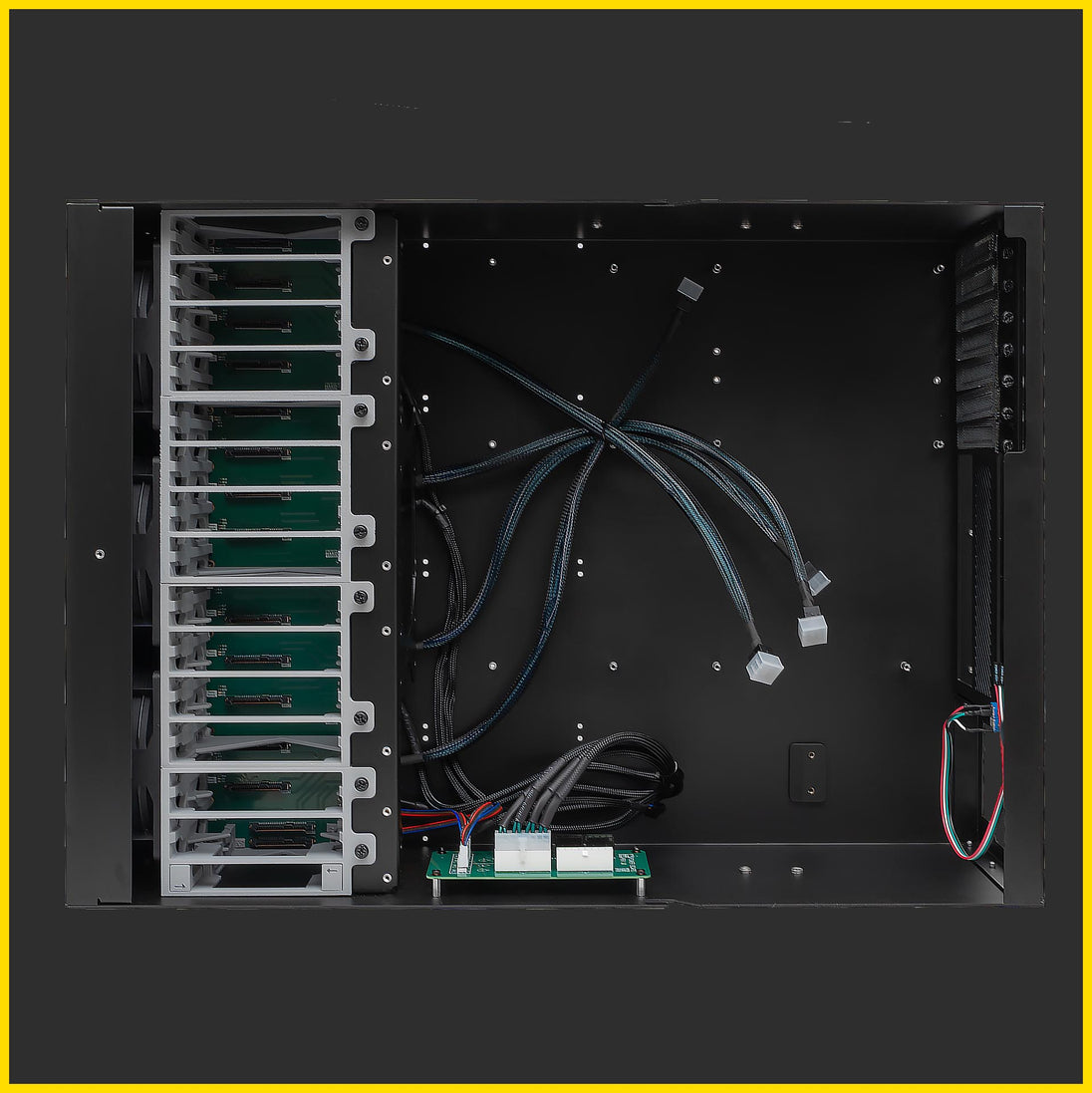

Holds up to 6 Standard drive cages and 1 Mini drive cage.
Power Supply
Not included.
Updated - 02/10/2025

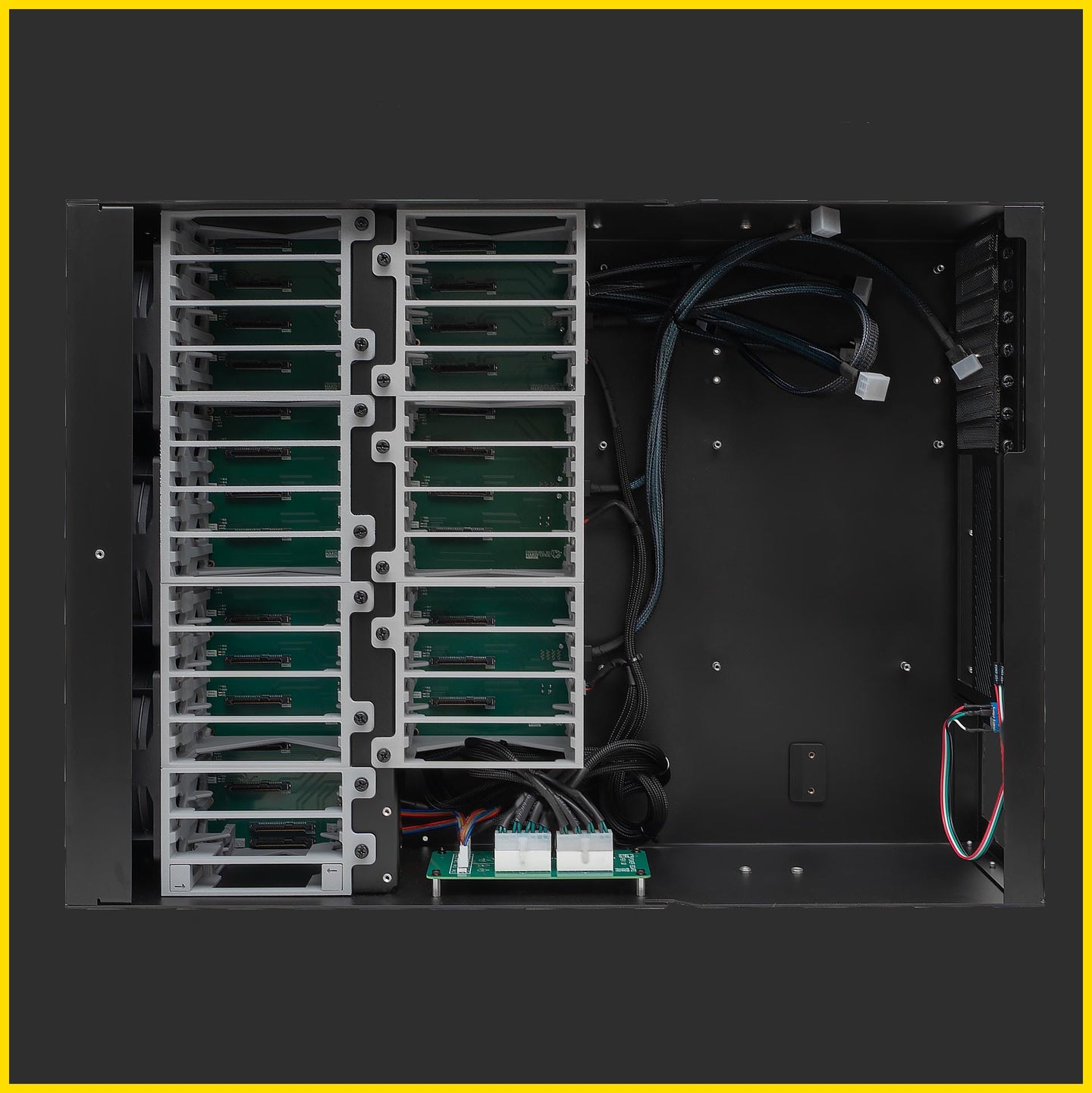

- Added - Support for all backplanes on the second row.
- Added - Mount points for PCIe accessory fan brackets.
- Added - Mount points for rear exhaust fans (92mm & 80mm).
- Added - Mount points for a cable management bracket.
- Added - Support for most, if not all, motherboard form factors: SSI-CEB, SSI-EEB, (XL, E, Micro, Flex) ATX, Mini-DTX, Mini-ITX.
- Changed - Rotated power board for more PSU clearance and better plug access.
- Changed - Improved process for attaching magnets.

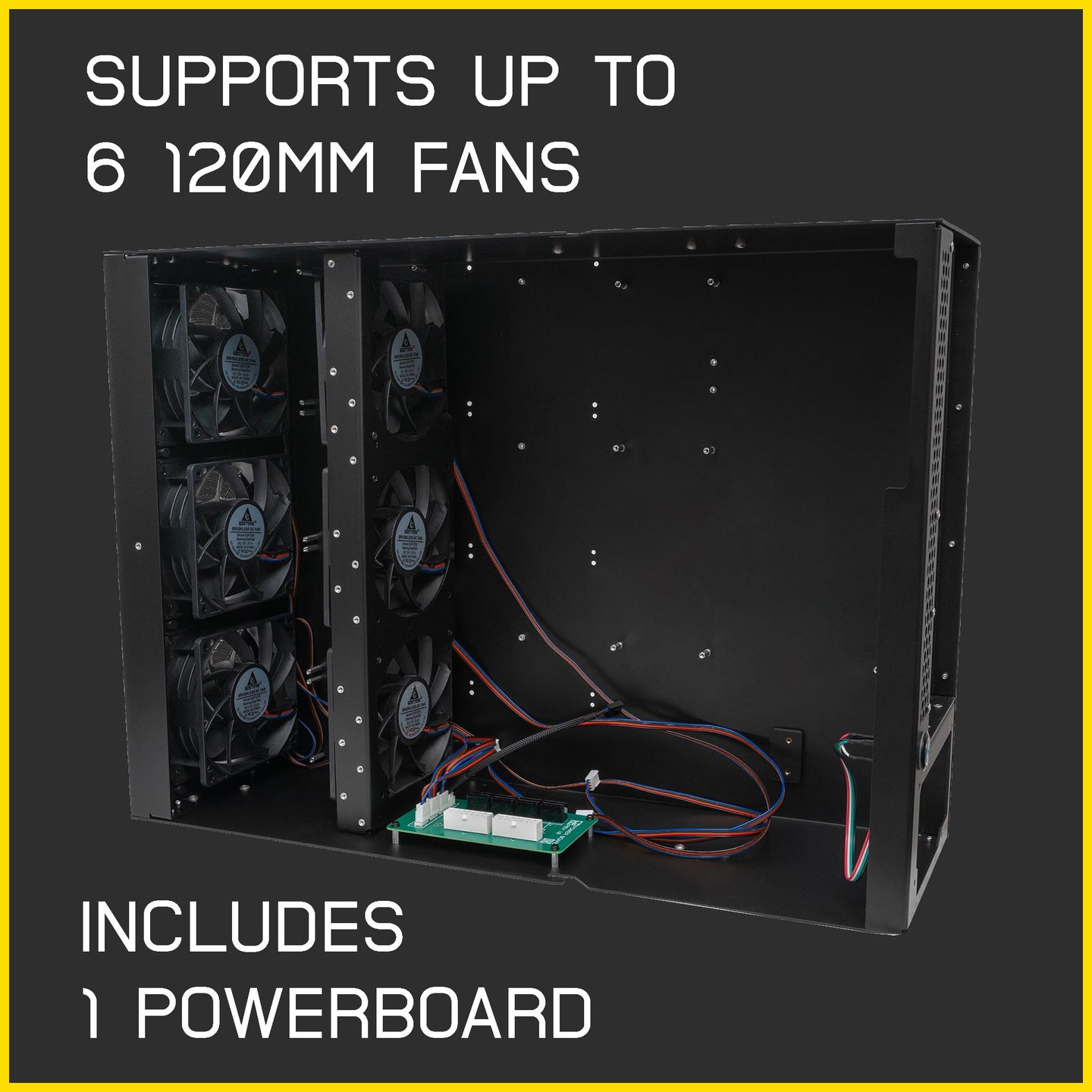

- Changed - Updated "fan hub" for each row of fans (fixes issue with removing backplanes to wire/unwire fans).
- Changed - Better labeling for power board and SAS cables.
- Changed - All screws now have Loctite.
- Changed - Updated packaging to help prevent damage.
Difference between Rev2
- Changed - Made case 2.5" LONGER - Final 26" Depth.
- Added - More power board mount locations.
- Added - Support for different PSU orientations.

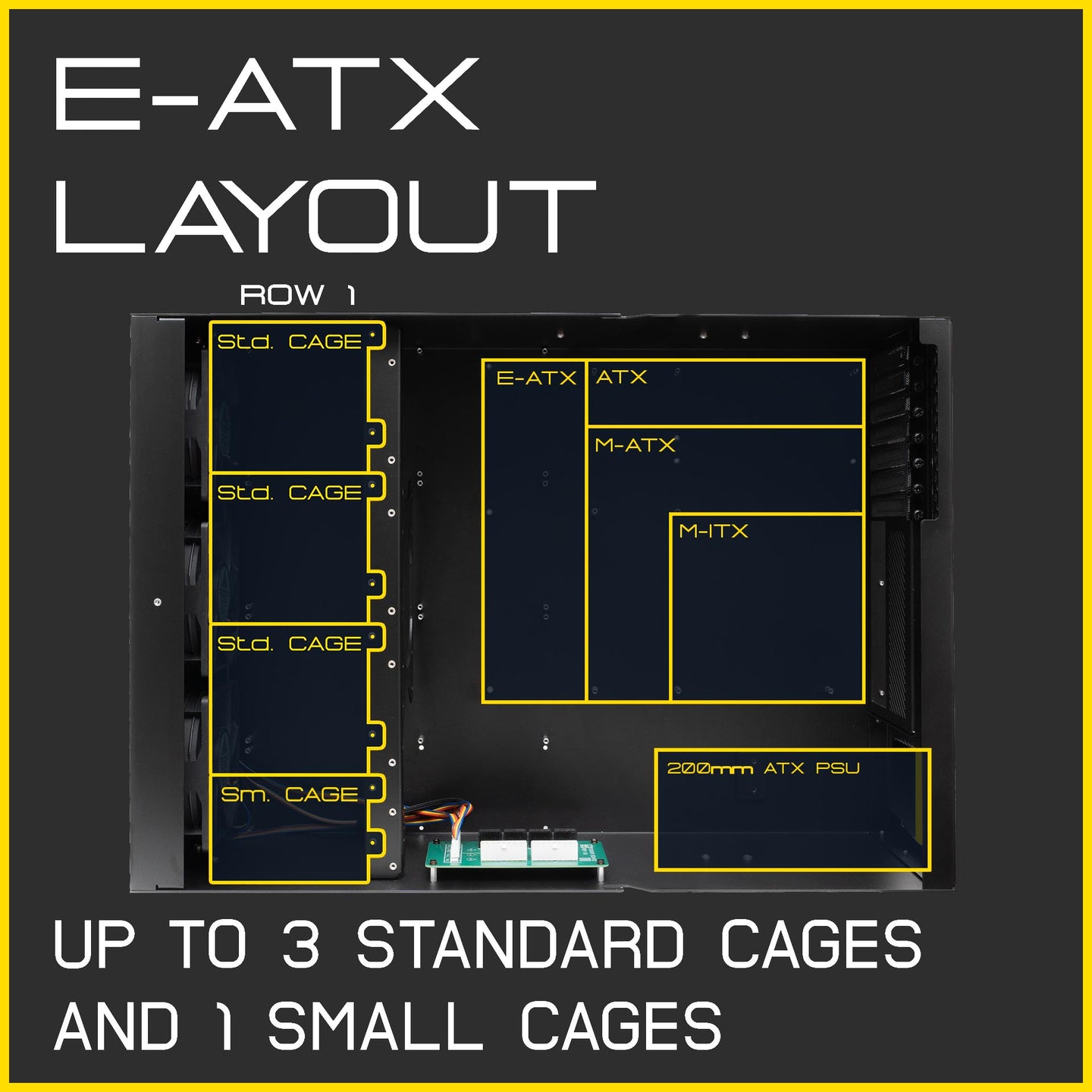

- Added - Support for one standard backplane in place of the mini backplane when using an EATX motherboard.
What is included?
Powerboard, drive removal tools.
When is shipping?
We are preparing orders in batches, so batch 1 will be shipping in december.
What is the deposit?
We are asking for $100 to secure your product and you will pay the rest when we prepare to ship.
Where can we get 3d printed drive cages?
We are selling them individually on the site, but they are also available on our github to download and print at home.
