Currently Shipping Rev1.3
NOTE: The U.2 Backplane Kit comes with cables, cage, or other accessories. If purchasing to use in a Hako-Core/Mini it is recommended to purchase the full kit (Backplane, Cage, and Wire).
REQUIREMENTS: Your motherboard must support PCIe Bifurcation to 4x/4x or 4x/4x/4x/4x lanes for this backplane to function.

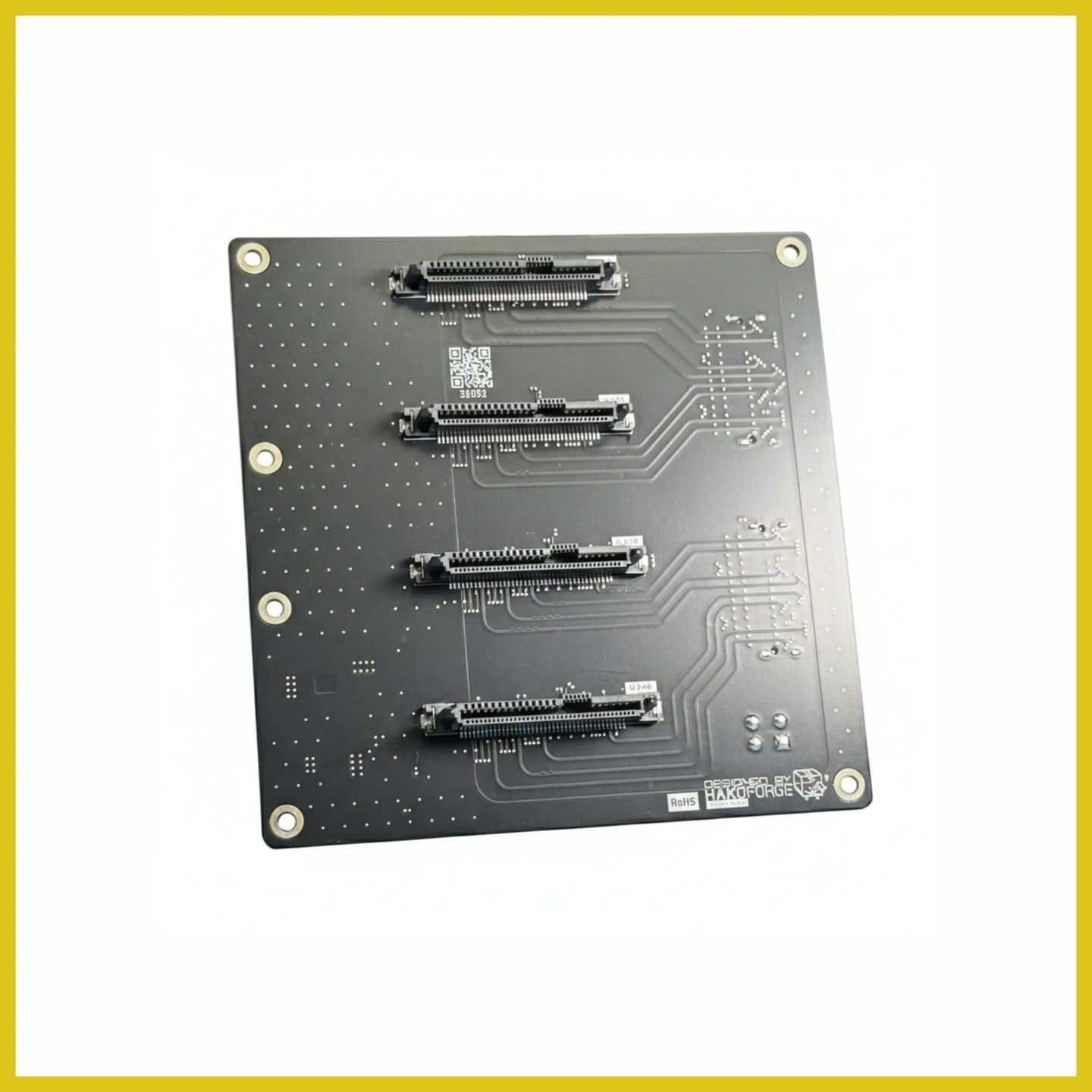

Optimize your storage setup with the Standard 4-U.2 Backplane, a compact yet powerful PCB designed to seamlessly connect up to 4 standard U.2 NVMe drives. This backplane is engineered to integrate perfectly with our standard U.2 drive cage, offering a streamlined, efficient solution for high-performance NVMe deployments in both enterprise and personal environments.
Key Features:
- U.2 NVMe Connectivity: Supports U.2 NVMe drives for maximum performance storage configurations
-
PCIe Gen 4 Support: Support up to PCIe Gen 4. devices. PCIe Gen 5, can be achieved, but requires a PCIe retimer and high quality MCIO cables rating for such speeds.
- Quad Drive Support: Connects up to 4 U.2 drives, enabling high-speed, enterprise-grade storage
- Seamless Integration: Designed to connect with our standard U.2 drive cage for easy, secure installation
- Optimized for Performance: Ensures stable, maximum-speed data transfers and reliable operation
- Compact Solution: Ideal for adding high-performance NVMe storage without excessive space requirements
- Easy Installation: Simple integration into your existing storage infrastructure

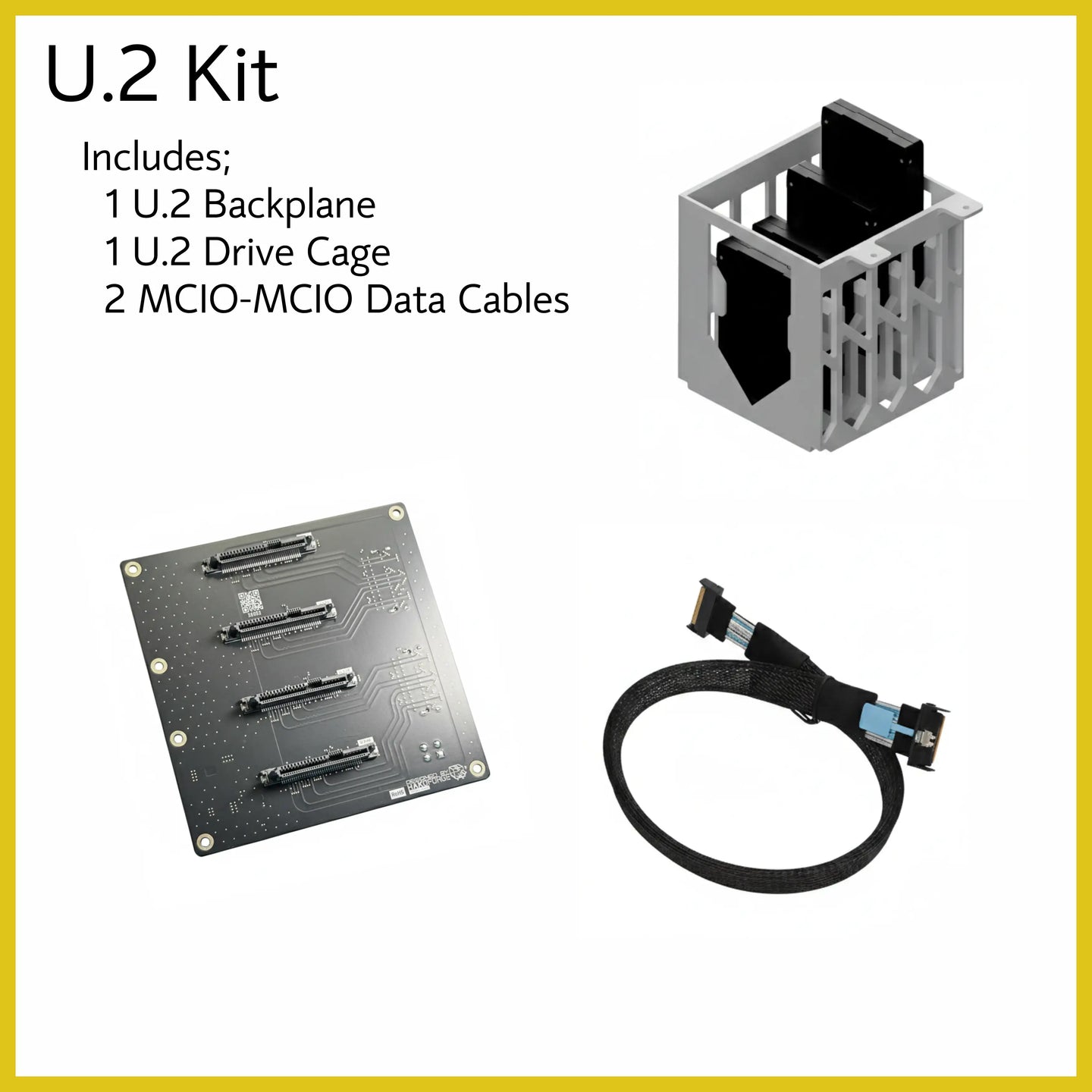

What's Included With the Kit Version:

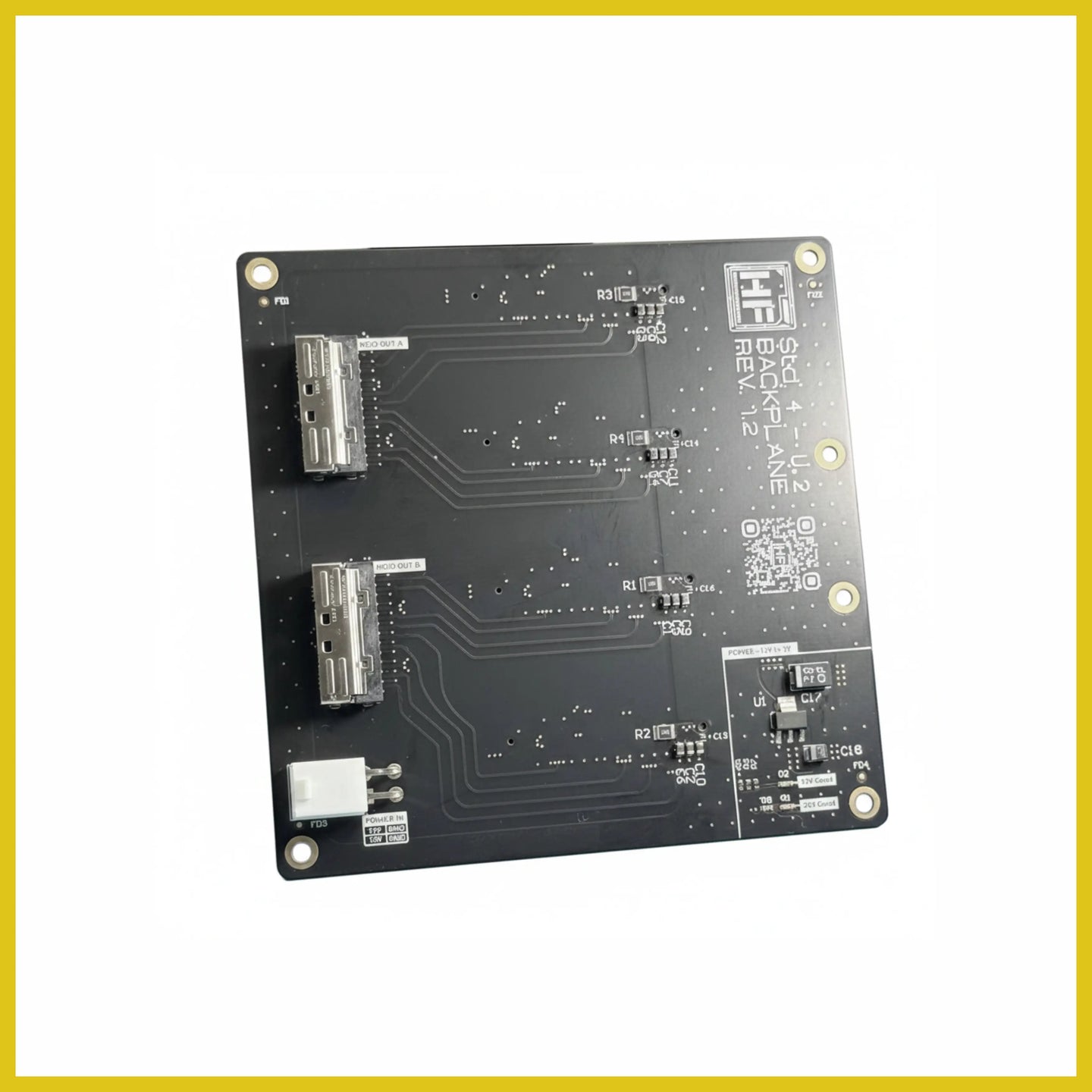

- 4-U.2 Backplane with built-in power conversion

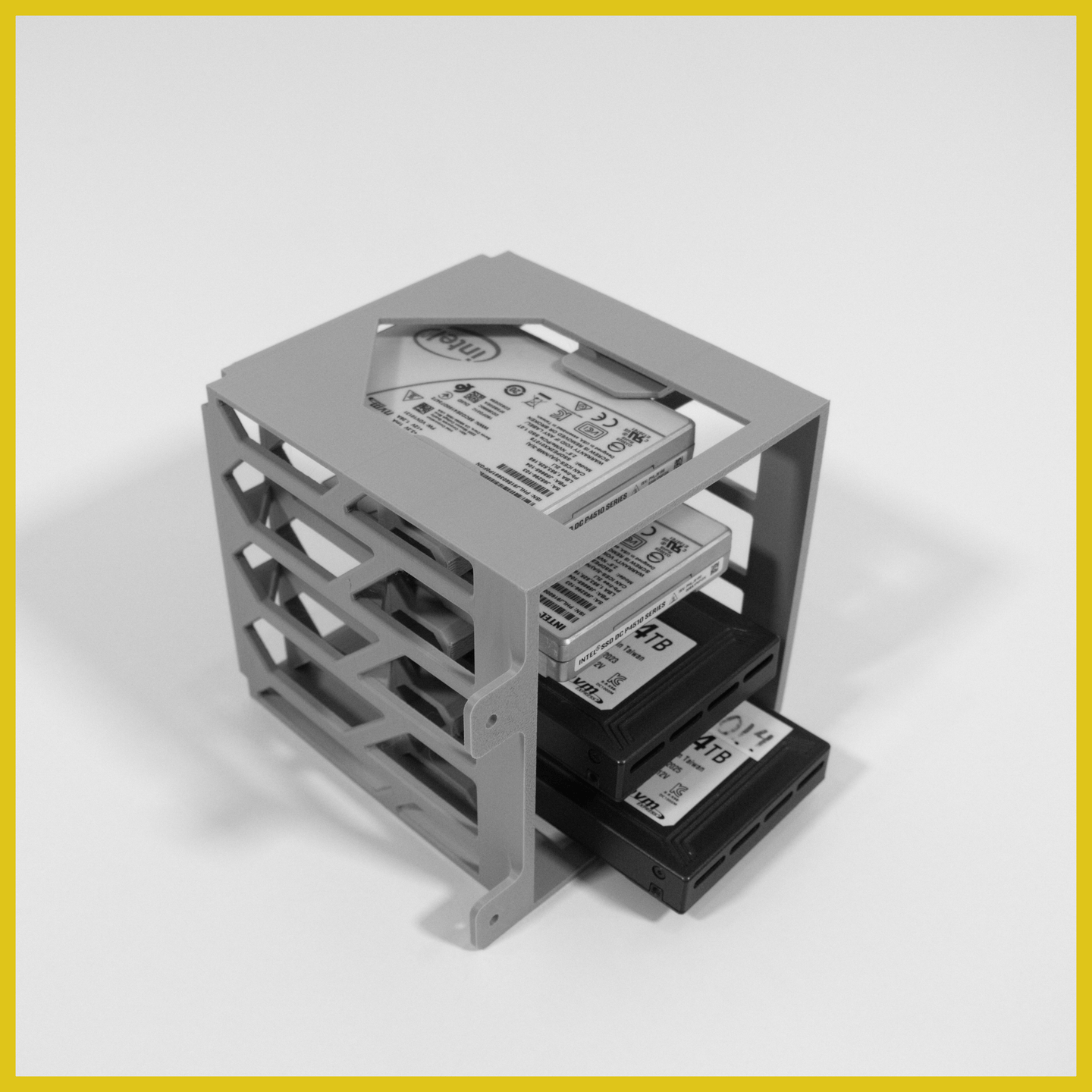

- Standard U.2 Drive Cage for secure drive mounting
- 2x MCIO to MCIO Data Cable for seamless connection
Whether you're building a high-performance workstation or enhancing your storage system with enterprise-grade NVMe performance, the Standard 4-U.2 Backplane combined with our standard U.2 drive cage and built-in power conversion provides the speed, reliability, and efficiency needed for demanding, high-performance storage applications.
