Overview
Please see note below before ordering.

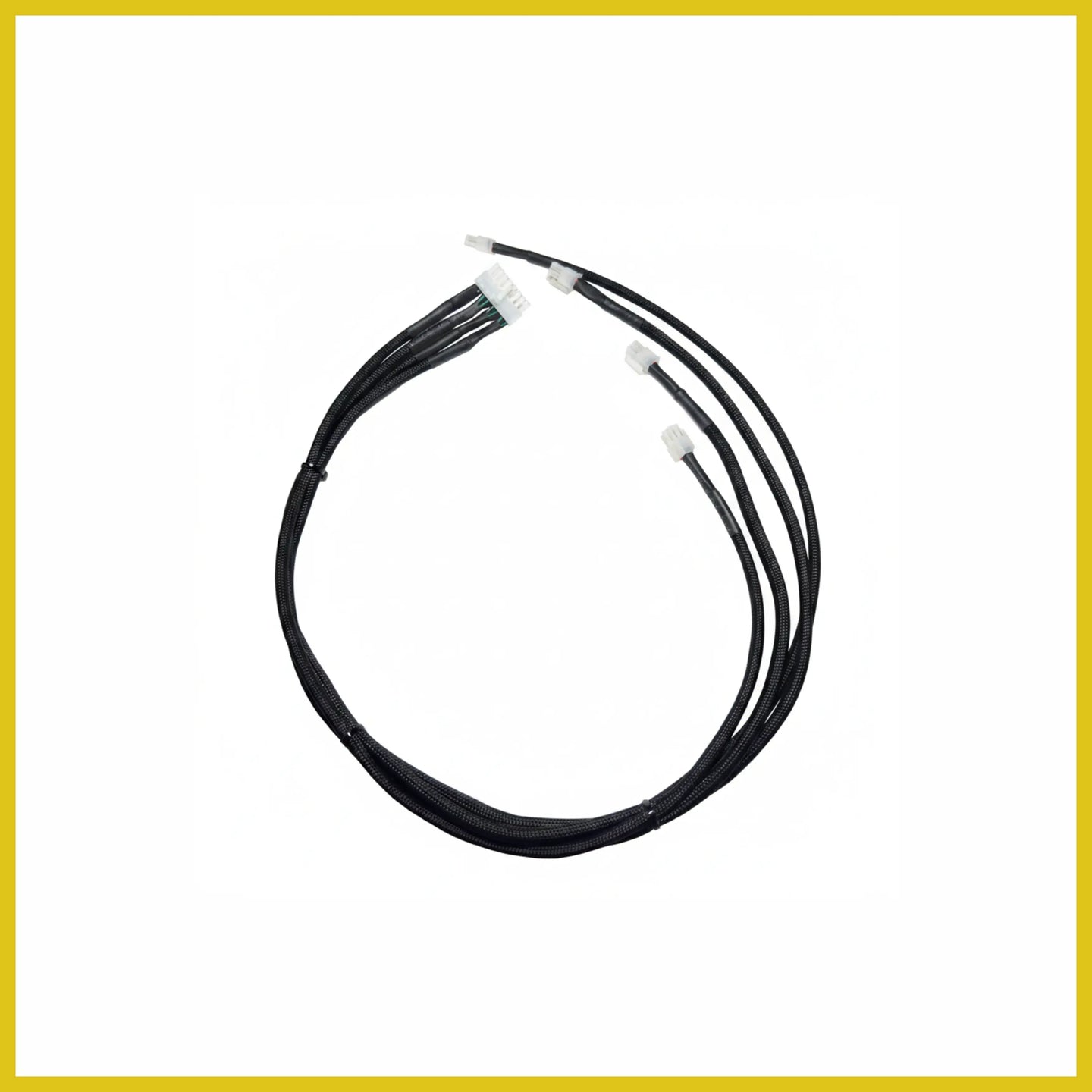

The Hako-Core power harness system distributes clean, regulated power from the central powerboard to individual PCBs throughout the chassis. This modular approach ensures efficient power delivery and simplified cable management.
The power harness acts as the distribution network between the central powerboard and the individual backplanes.
Key Features
- Modular design with two harness lengths
- 16-pin to 4-pin distribution architecture
- Over-current protection at the powerboard level
NOTE:
For the Hako-Core the long power harness will reach rows 1. The short power harness will reach both rows 2 and 3. (See "Server Layout" image below)
For the Hako-Core Mini the short power harness will reach rows 1 and 2. (See "ATX Layout" image below)
