HakoForge

Hako-Core Mini Rev. 2

$549.95
$549.95

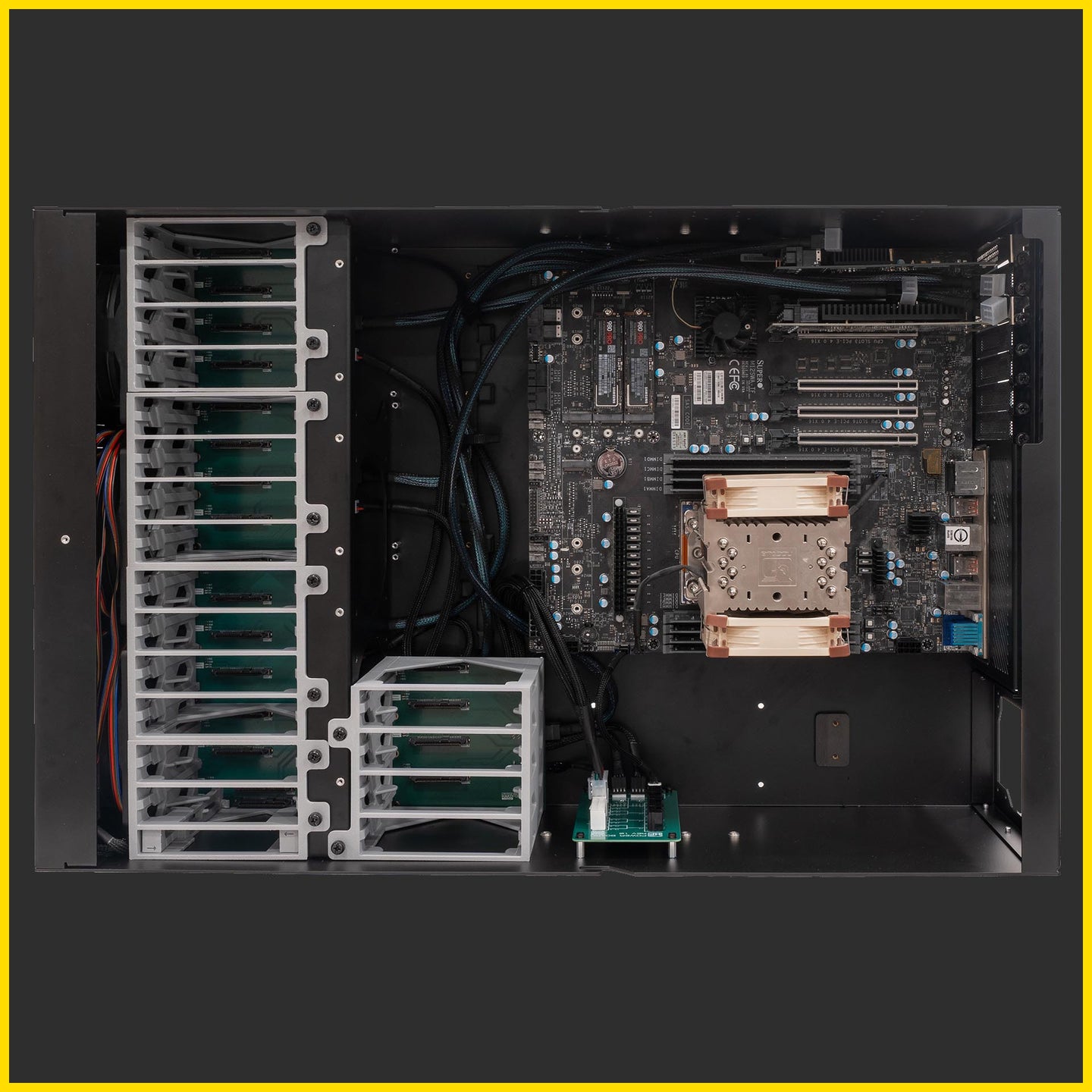

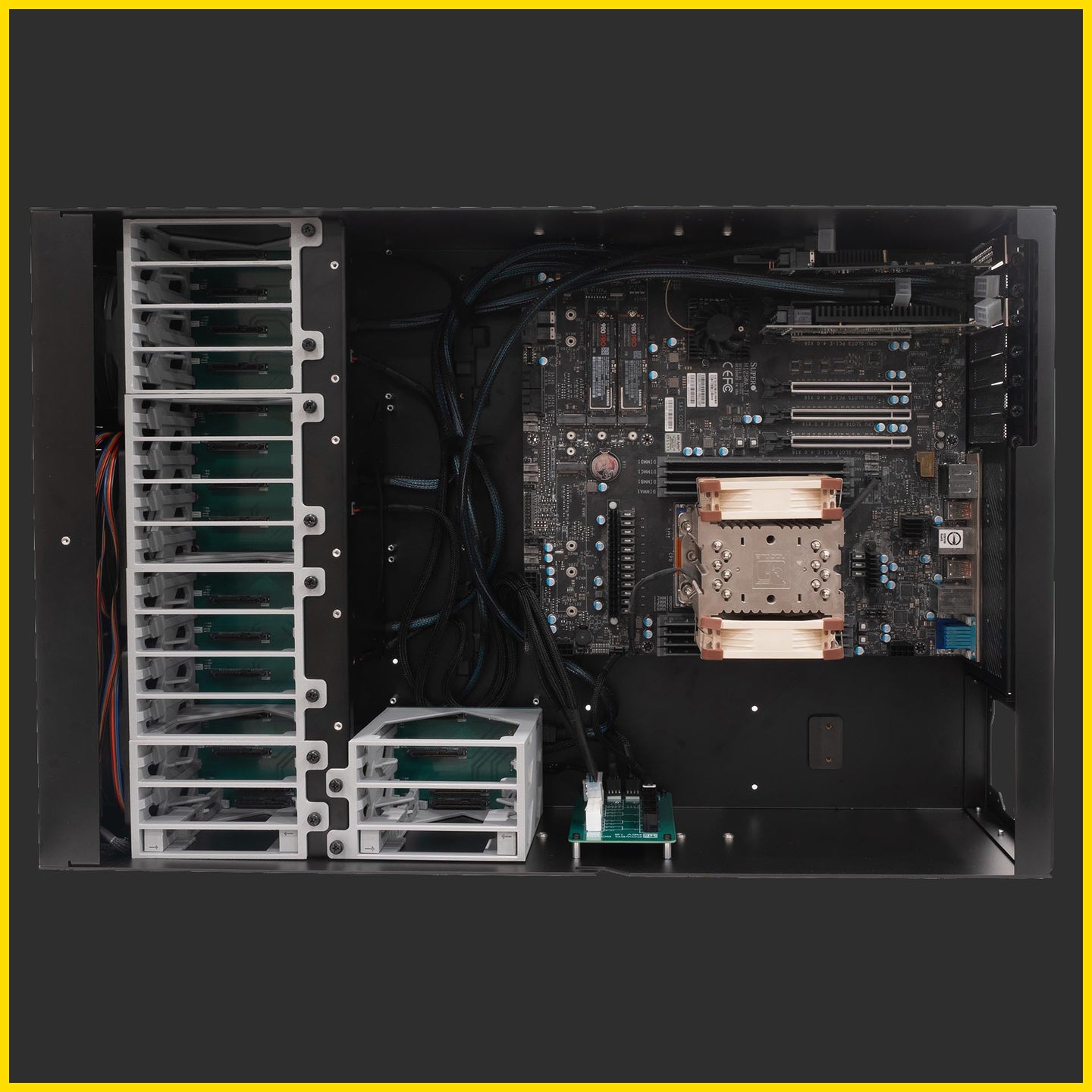

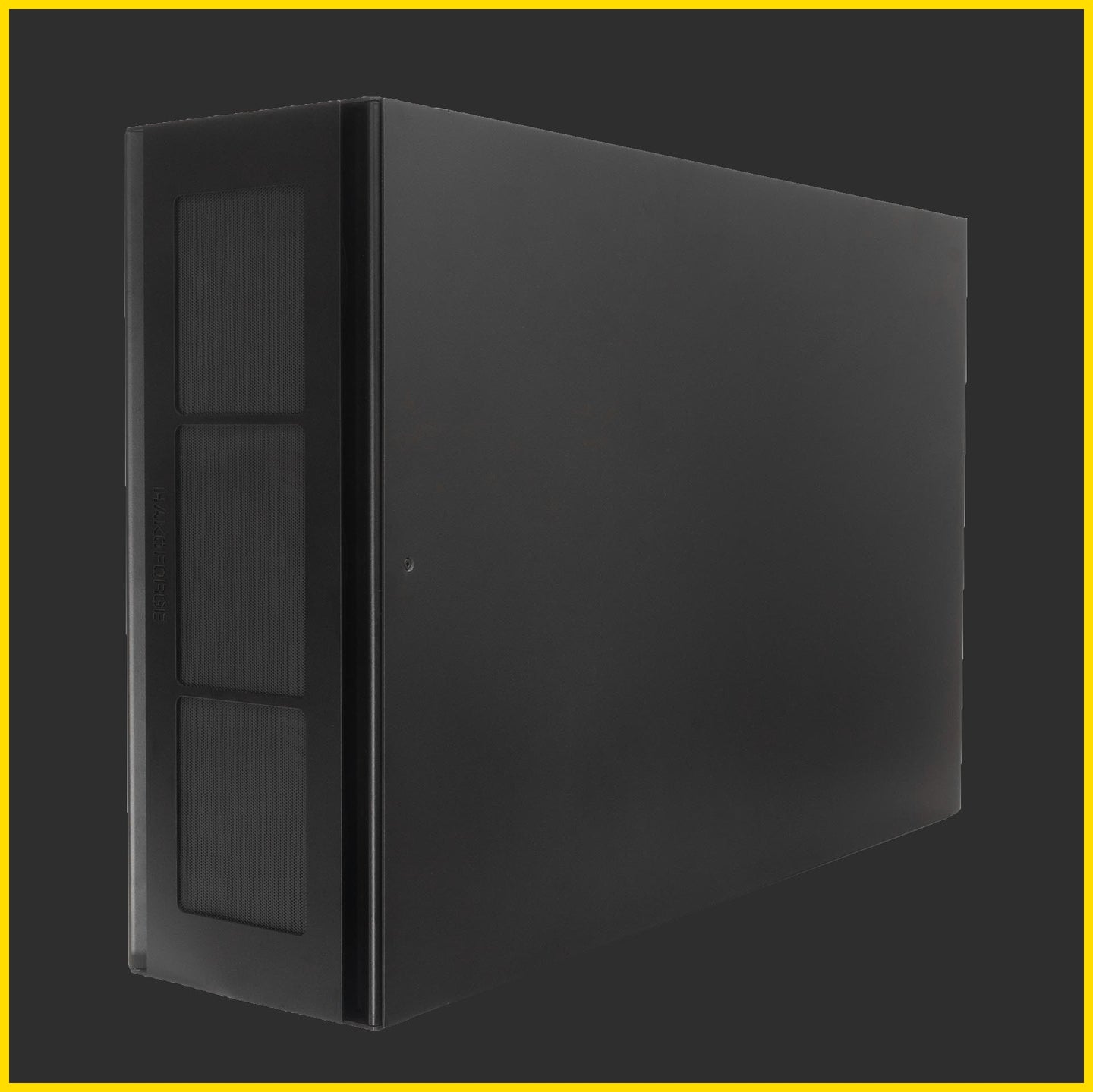

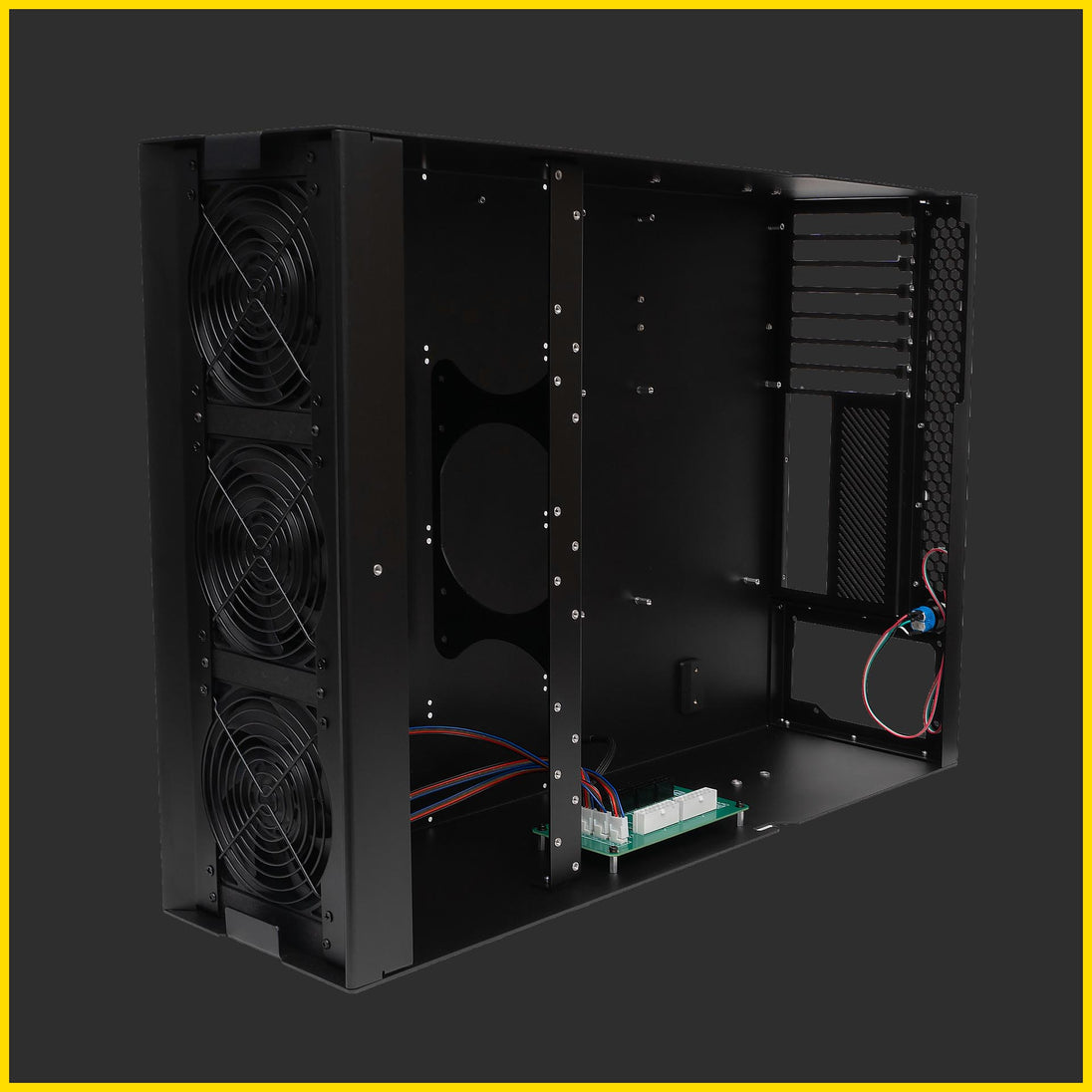

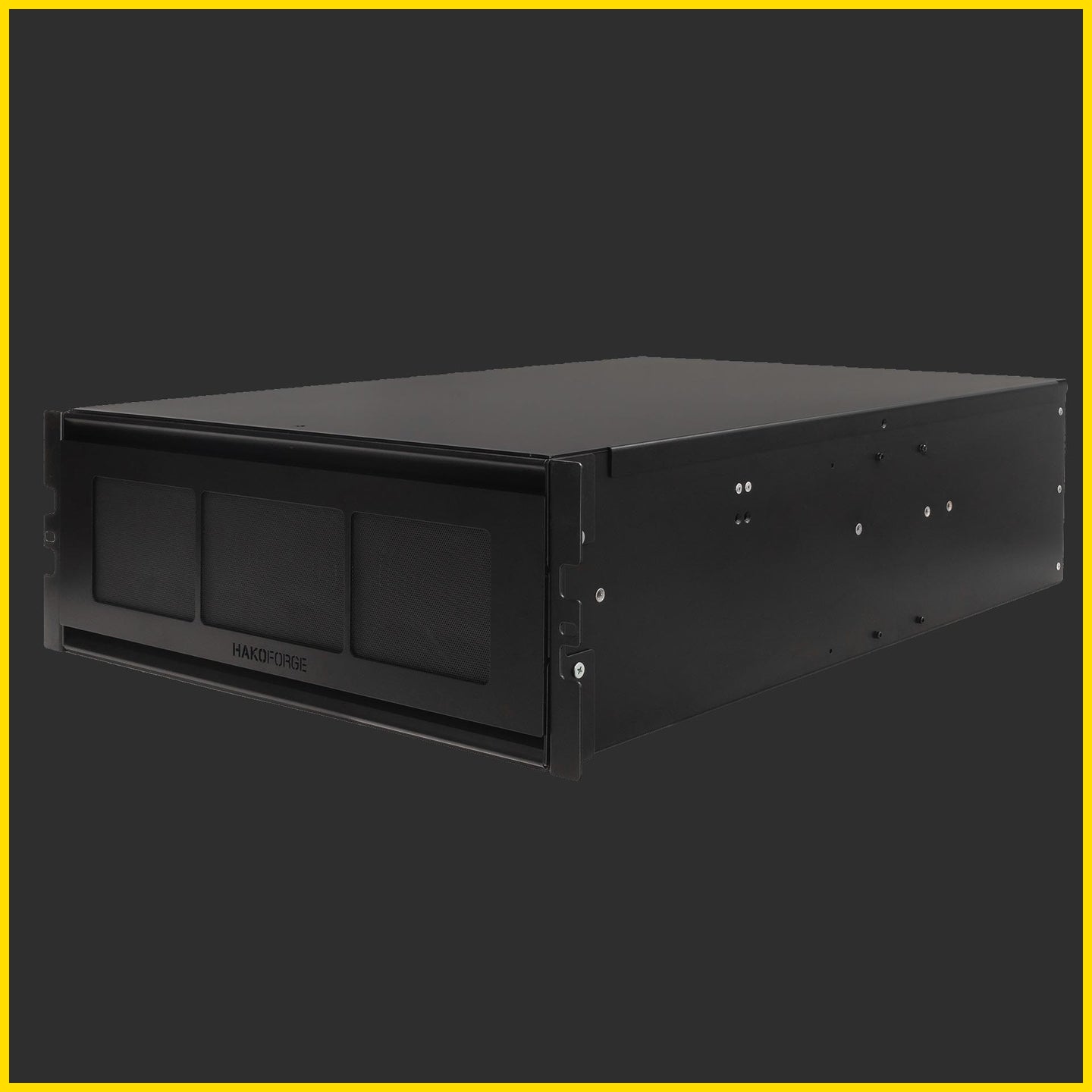

The Hako-Core Mini Rev. 2 is a more compact version of the Hako-Core. Versatile modular server chassis designed for tech enthusiasts, home server builders, and small businesses. Its customizable design supports a range of HDD and SSD configurations, allowing you to easily adapt the setup to your evolving storage needs. Ideal for media servers, NAS setups, or data storage solutions.



SHIPS: 2-3 WEEKS

Included

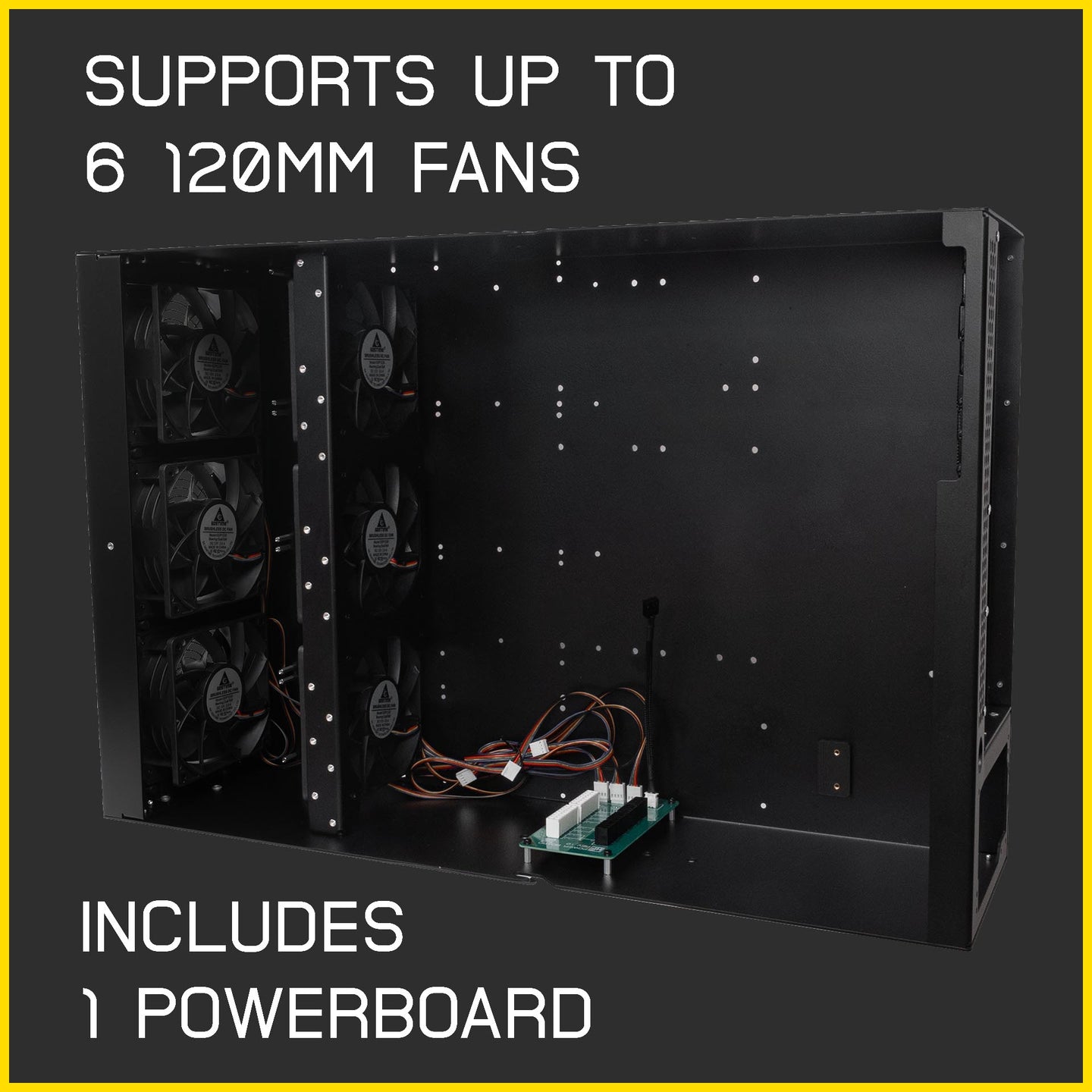

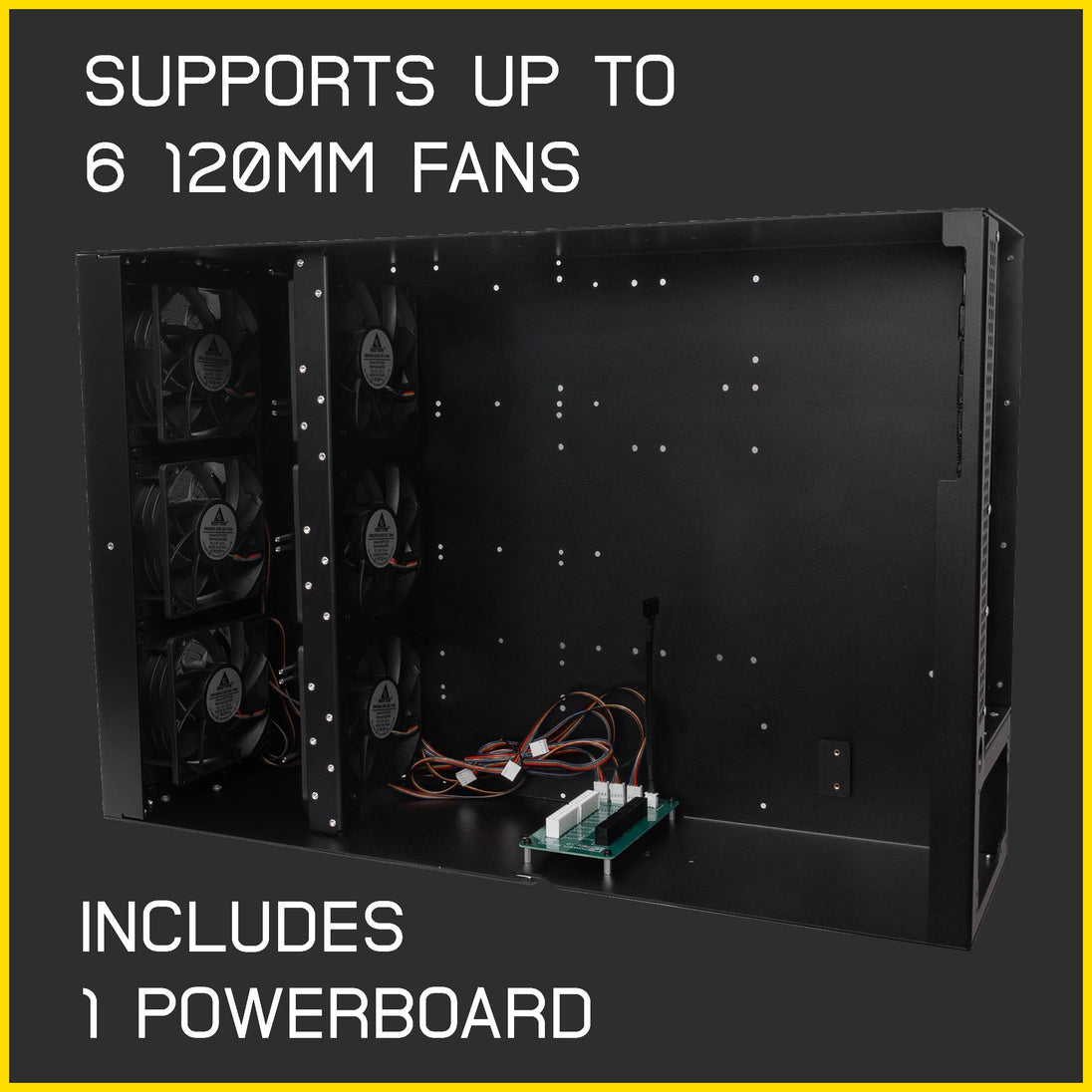

Powerboard, needed wires, drive removal tools.

Material

Powder Coated Aluminum.

Color

Black.

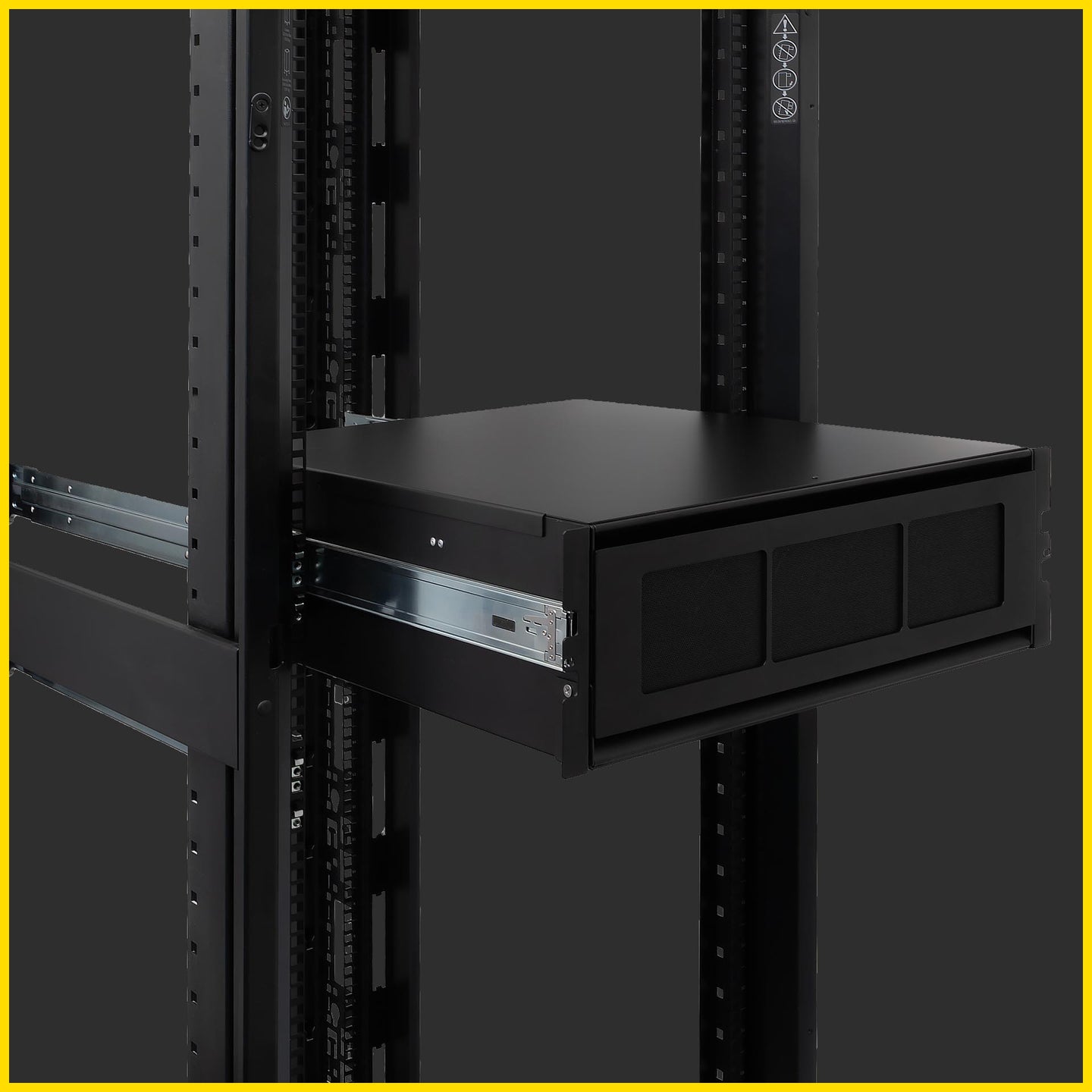

Form Factor

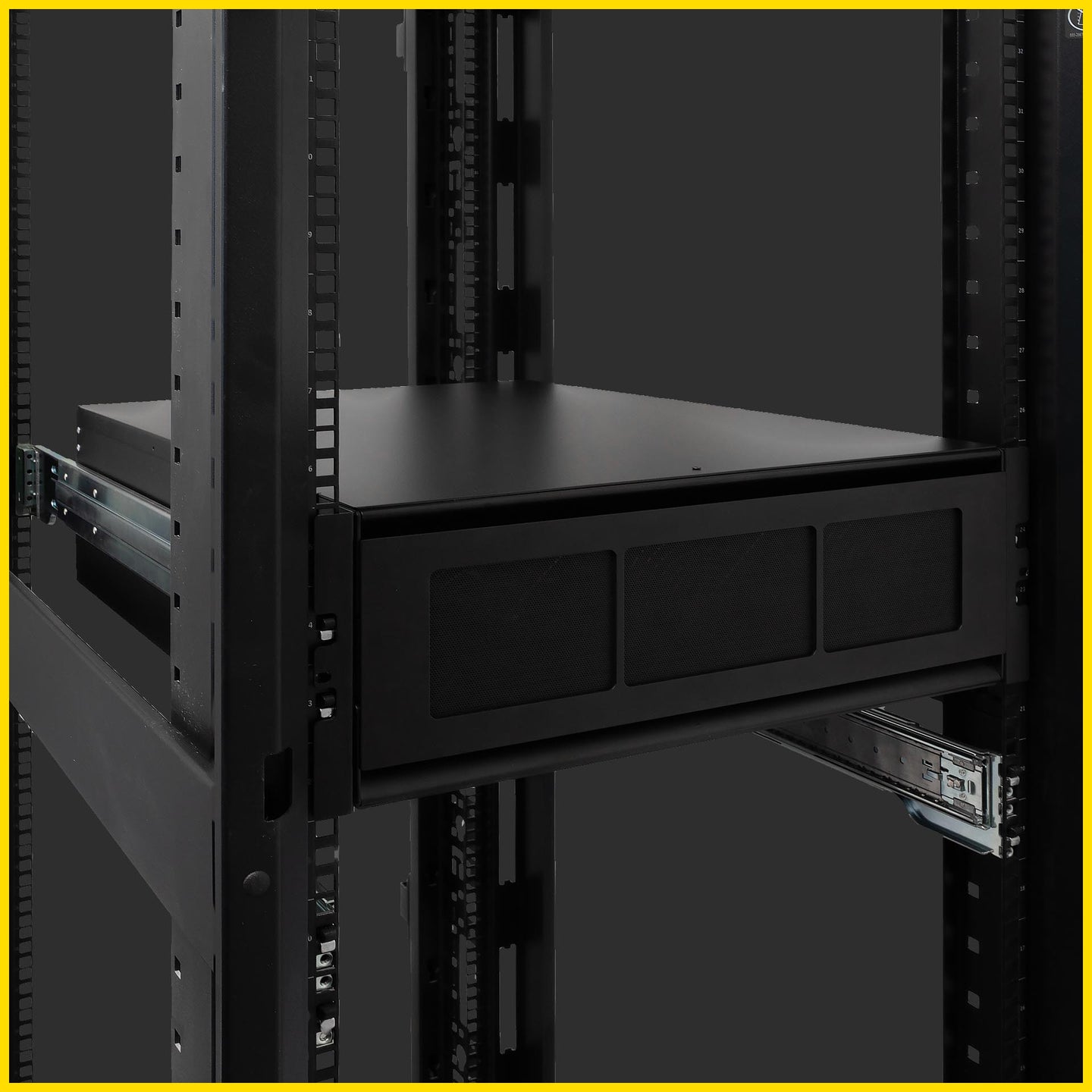

4U.

Dimensions

26" x 17.25" x 6.875".

Mother Board Support

Mini-ITX, Micro ATX, ATX, EATX, XL-ATX, FlexATX, Mini-DTX, SSI-CEB, SSI-EEB

Weight

15 lbs default configuration.

CPU Cooler Clearance

~150mm +- 5mm depending on Mobo

GPU Clearance

Length: ~377mm, ~320mm w/ 2nd row of cages  Height: ~154mm

Backplane

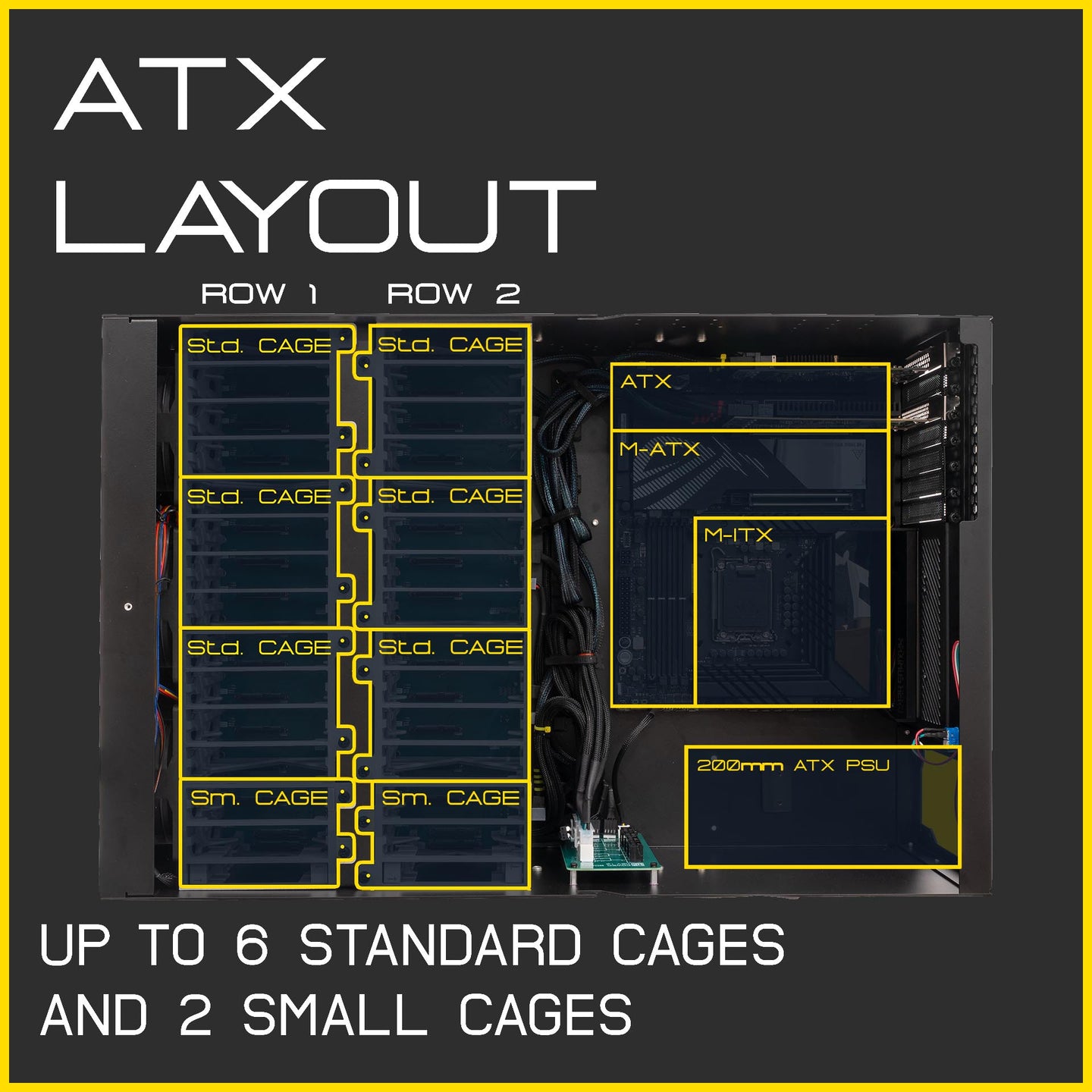

Holds up to 6 Standard drive cages and 2 Mini drive cage.

Power Supply Support

ATX, (With Adaptor)SFX

Updated - 04/21/2025



  • Added - Row color markers.
  • Added - Added conformal coating to backplane power connectors.



  • Changed - Powerboard rev2.1 higher accuracy on power usage, and fixed board PWM Labeling.
  • Changed - All rows of cages are now identical.



Updated - 04/01/2025



  • Added - HF Foundry, Powerboard GUI.



  • Changed - Powerboard rev2.0 now supports PWM control + Power Usage.
  • Changed - Front Panel now includes Hakoforge Logo.
  • Changed - Lid cutout for PCIe accessory clearance.
  • Changed - Longer power button wire 60cm to 95cm.
  • Changed - Cages clearance and alignment updated.



Updated - 02/10/2025

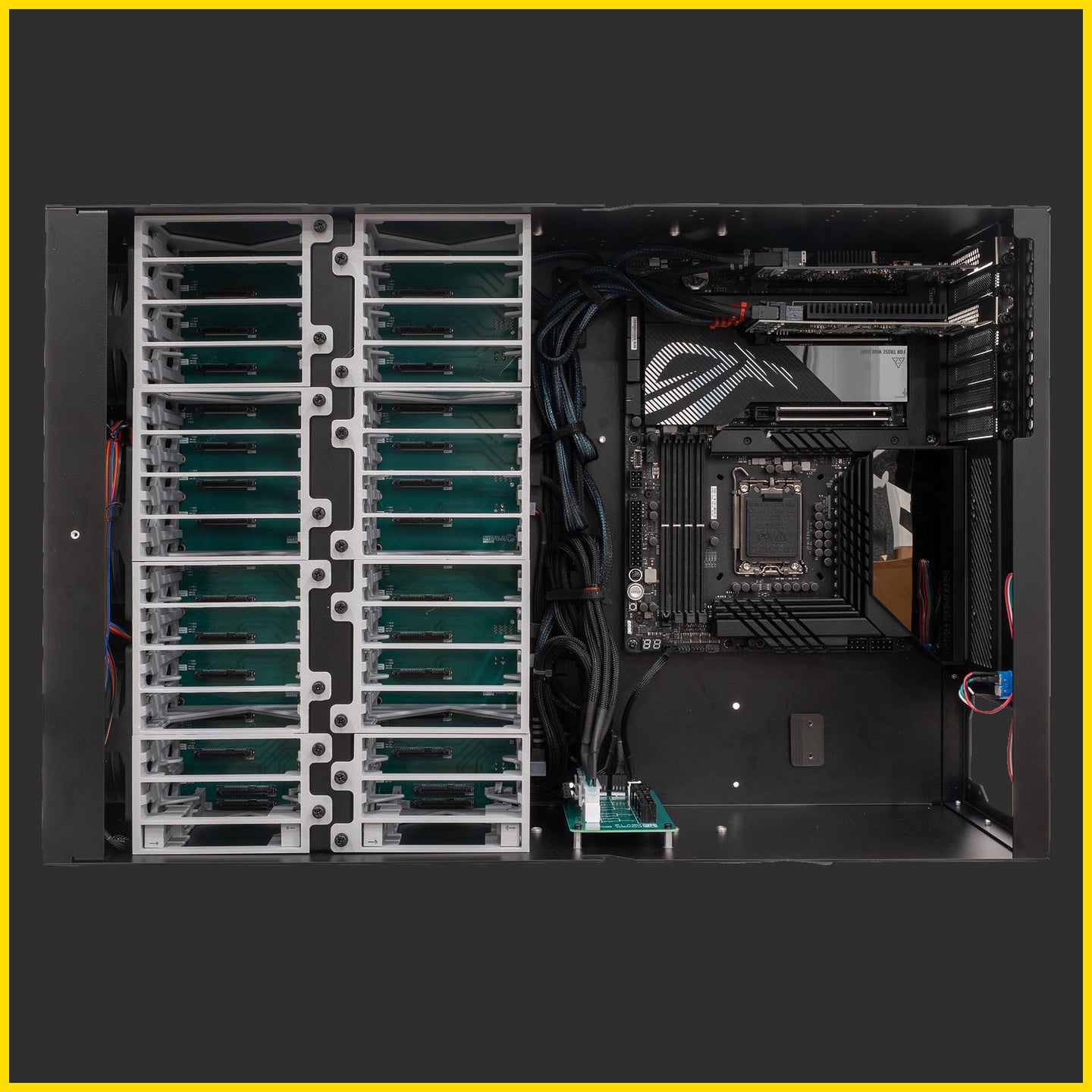

  • Added - Support for all backplanes on the second row.

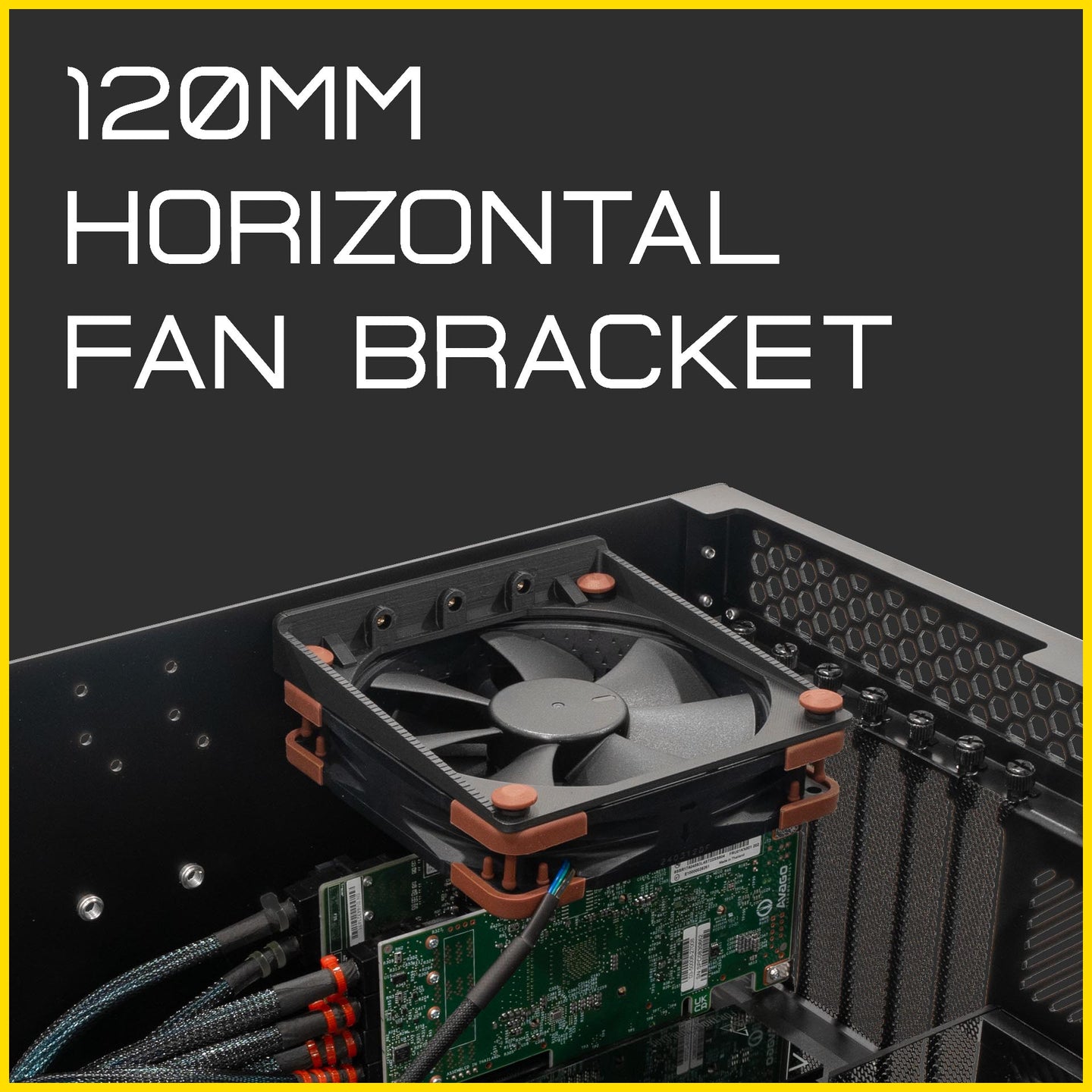

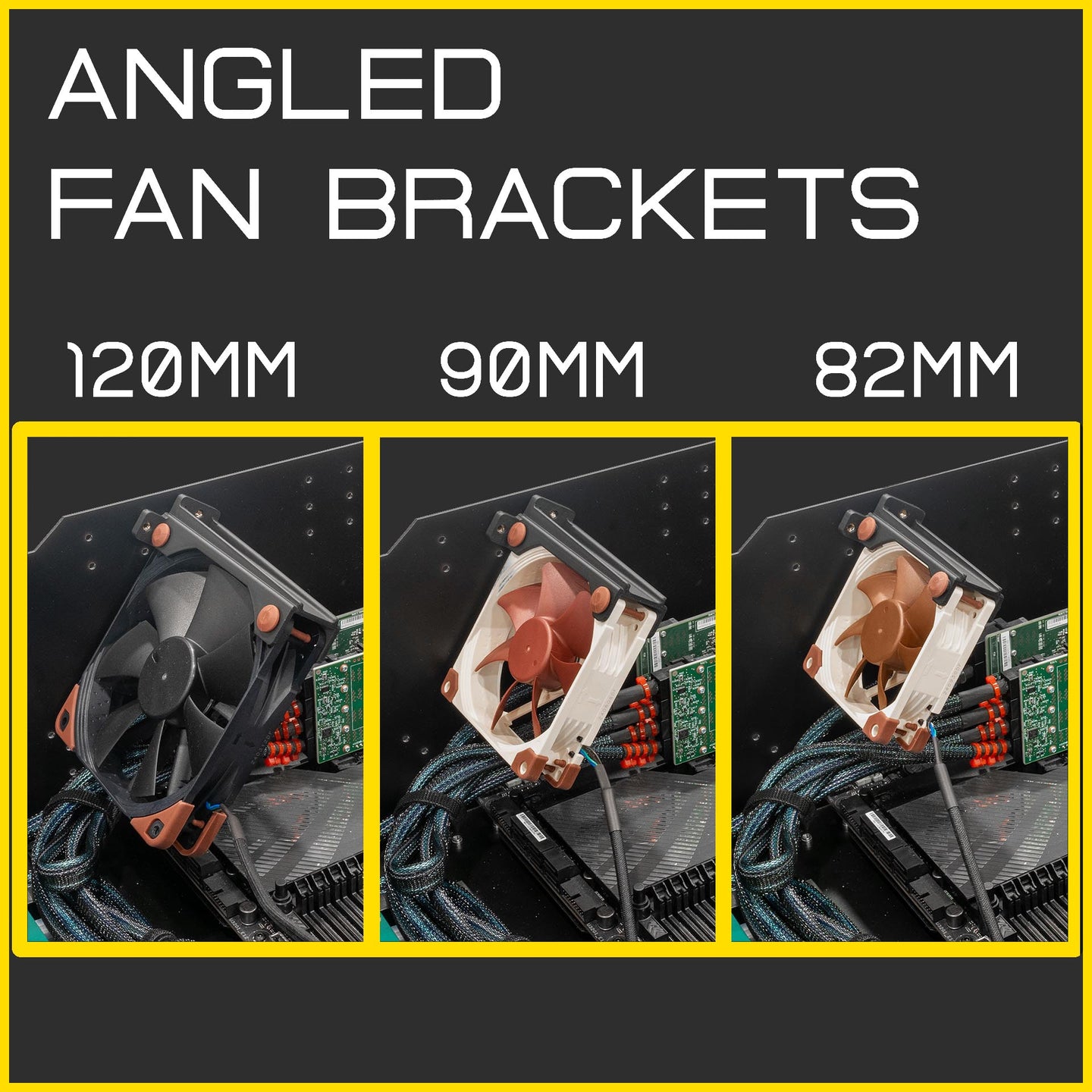

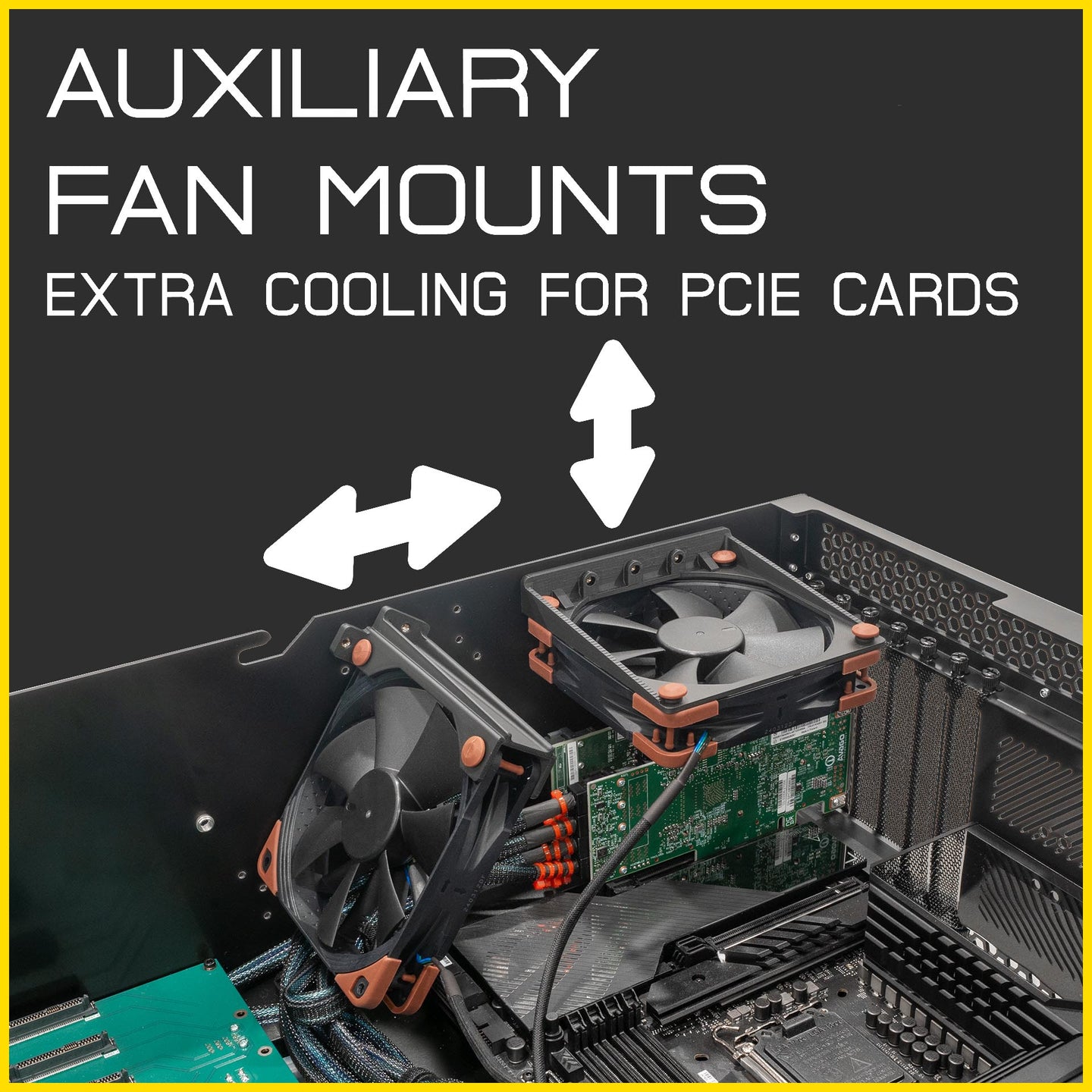

  • Added - Mount points for PCIe accessory fan brackets.

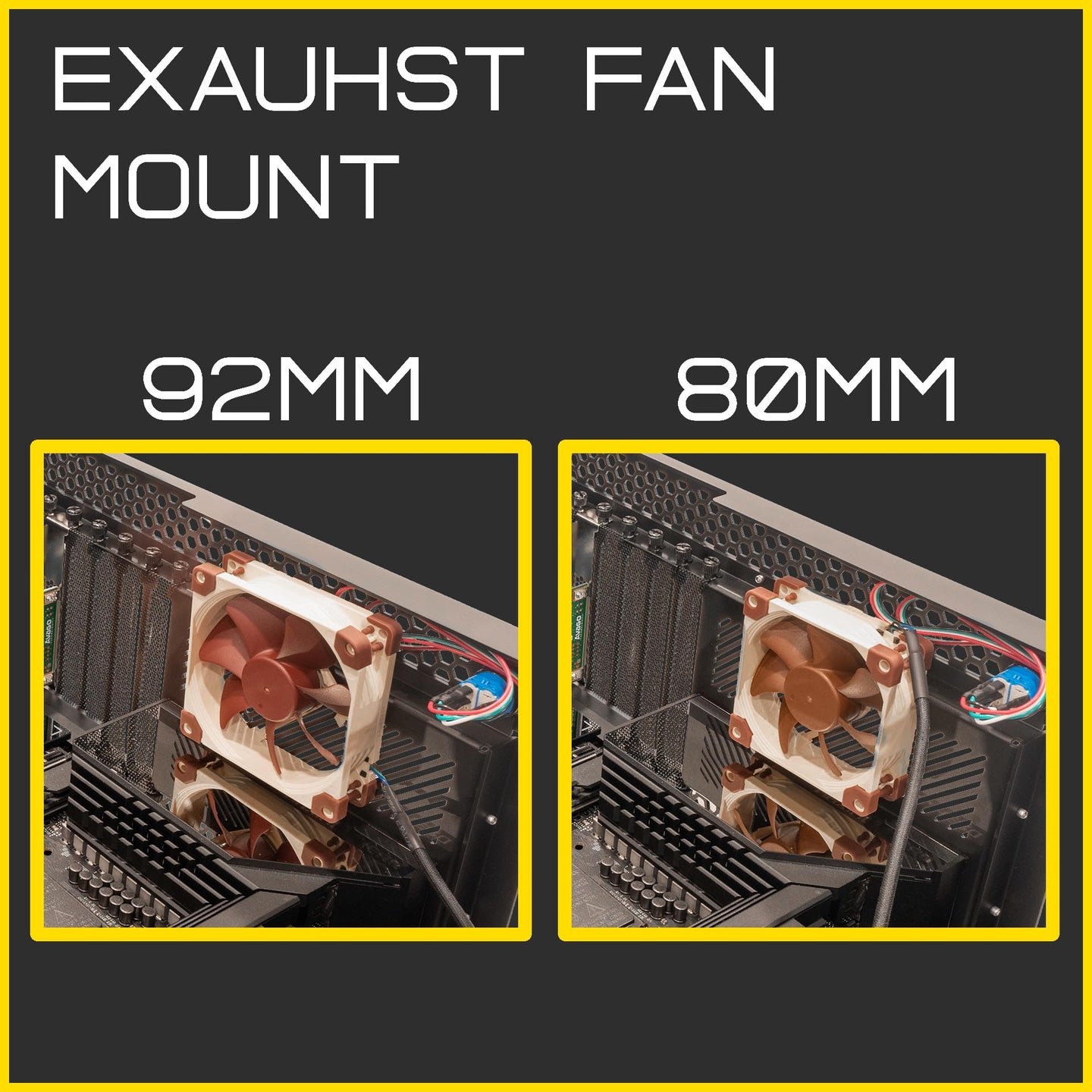

  • Added - Mount points for rear exhaust fans (92mm & 80mm).
  • Added - Mount points for a cable management bracket.
  • Added - Support for most, if not all, motherboard form factors: SSI-CEB, SSI-EEB, (XL, E, Micro, Flex) ATX, Mini-DTX, Mini-ITX.
  • Added - More power board mount locations.

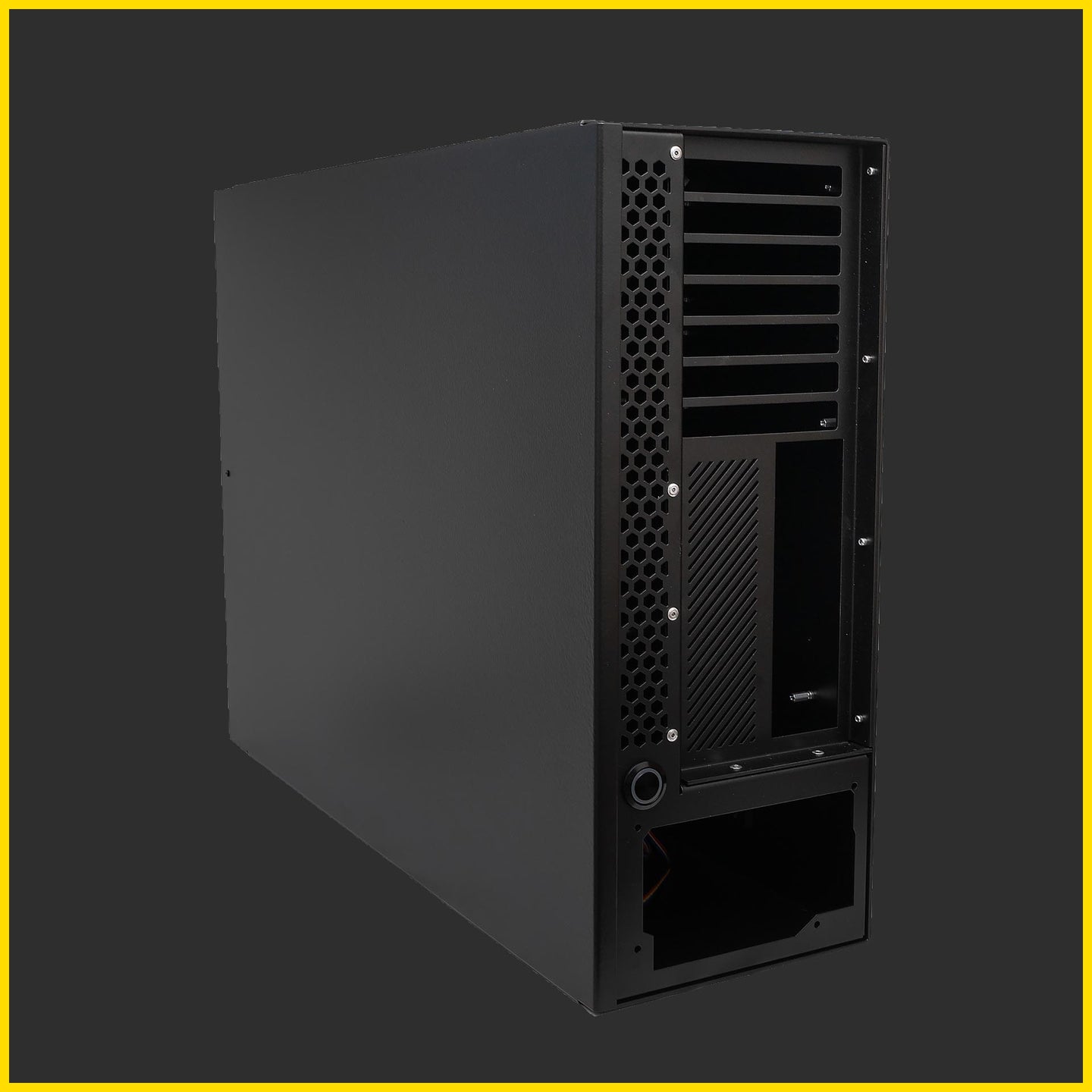

  • Added - Support for different PSU orientations.

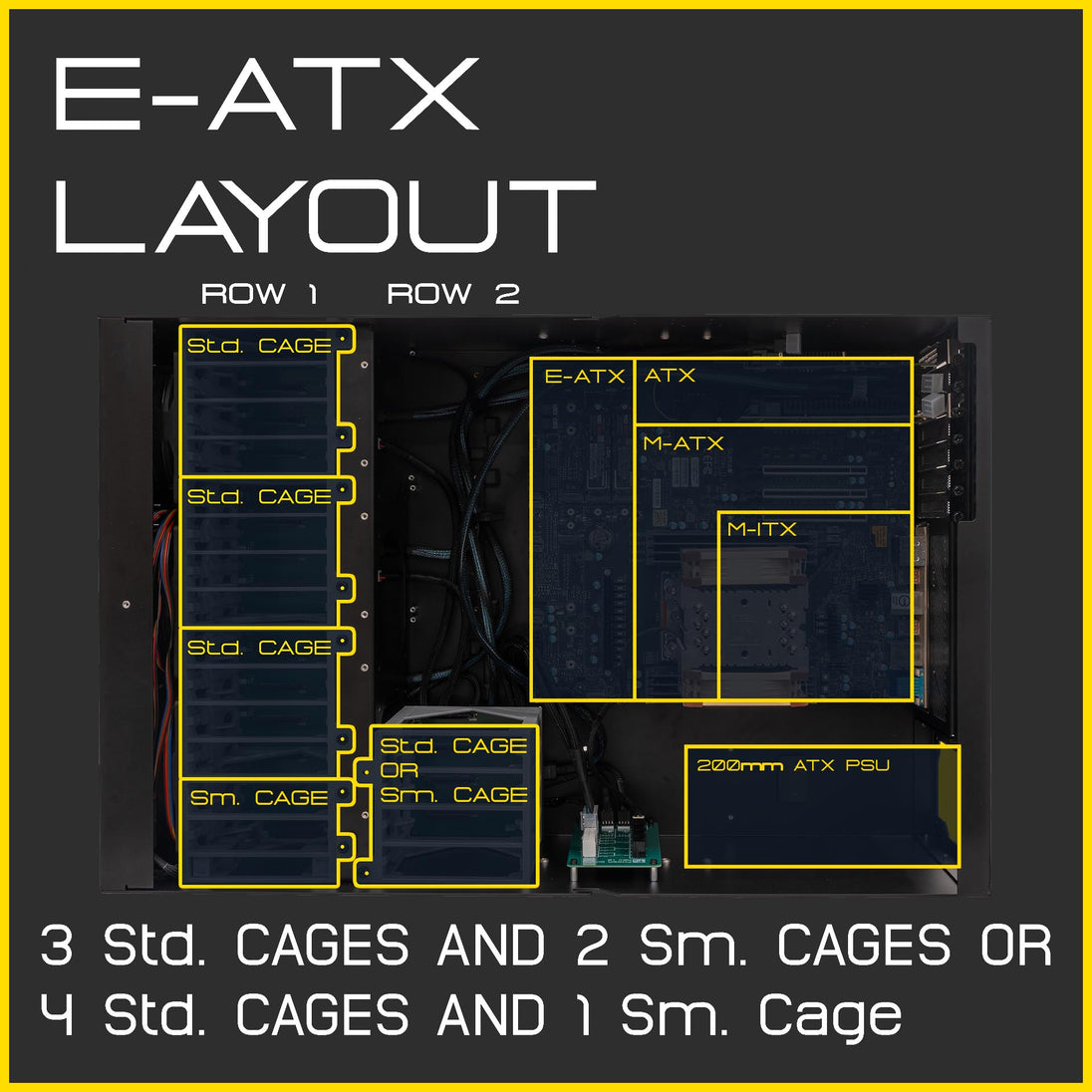

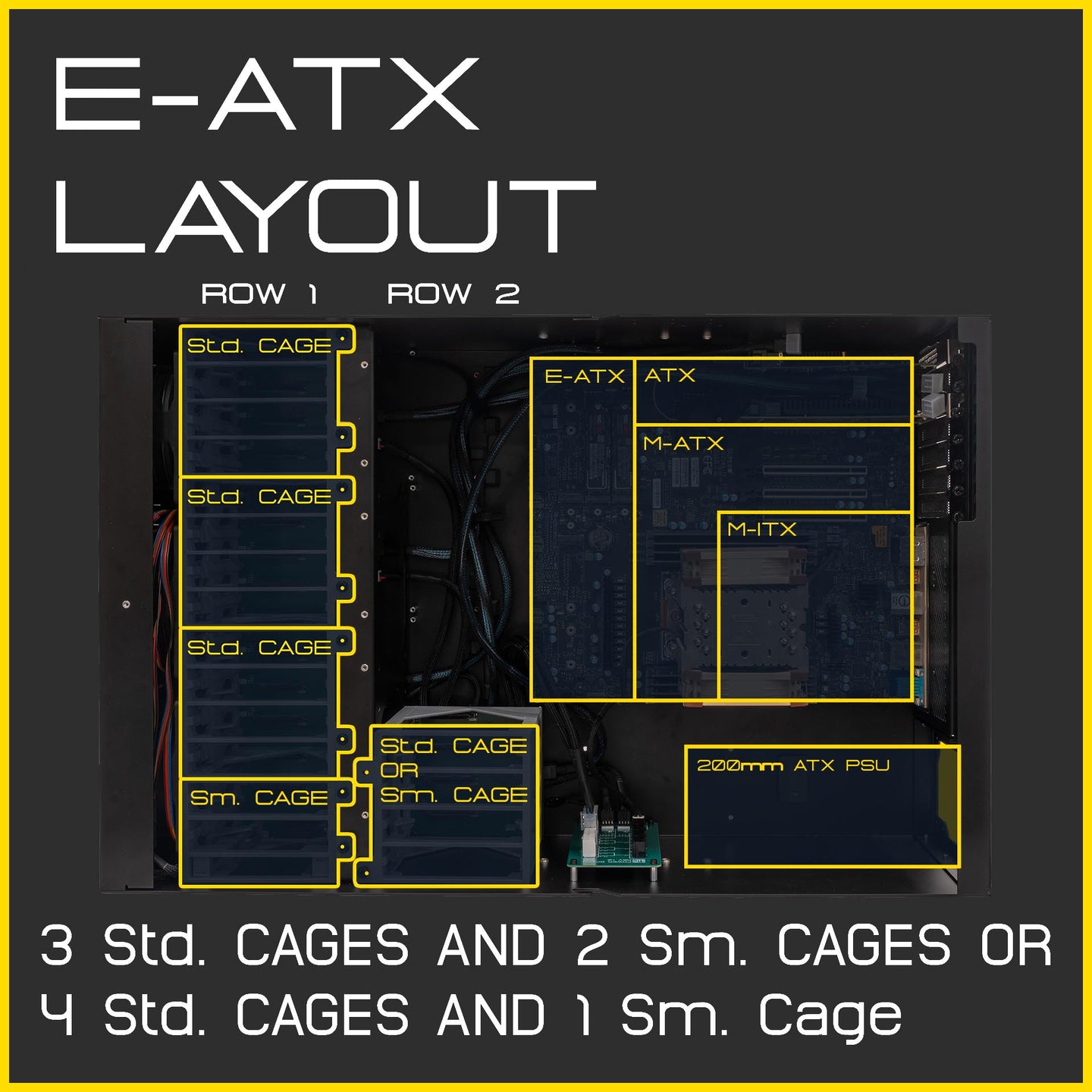

  • Added - Support for one standard backplane in place of the mini backplane when using an EATX motherboard.



  • Changed - Made case 2.5" LONGER - Final 26" Depth.
  • Changed - Rotated power board for more PSU clearance and better plug access.
  • Changed - Improved process for attaching magnets.
  • Changed - Updated "fan hub" for each row of fans (fixes issue with removing backplanes to wire/unwire fans).
  • Changed - Better labeling for power board and SAS cables.
  • Changed - All screws now have Loctite.
  • Changed - Updated packaging to help prevent damage.
What is included?
2 powerboard, needed wires, drive removal tools.
When is shipping?
Our shipping time is currently between 2 to 3 weeks from the date it is ordered.
Where can we get 3d printed drive cages?
We are selling them individually on the site, but they are also available on our github to download and print at home.
